Home
>>
Pontiac
>>
1989
>>
Firebird V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Pulse
Pulse

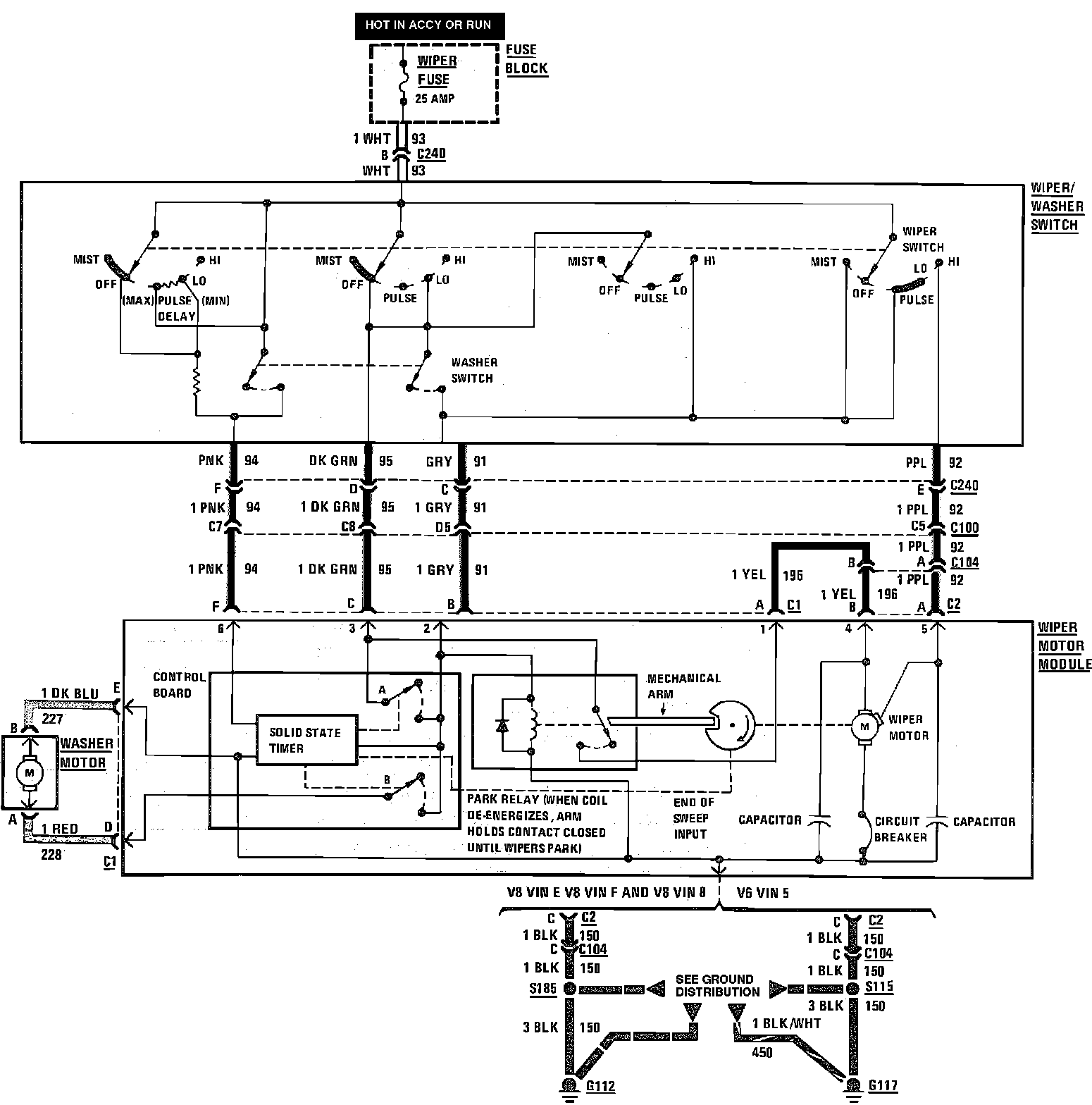

Windshield Wiper/Washer Wiring Circuit (Less W/Pulse):
