Pontiac
>>
1989
>>
Bonneville V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
Trunk / Liftgate

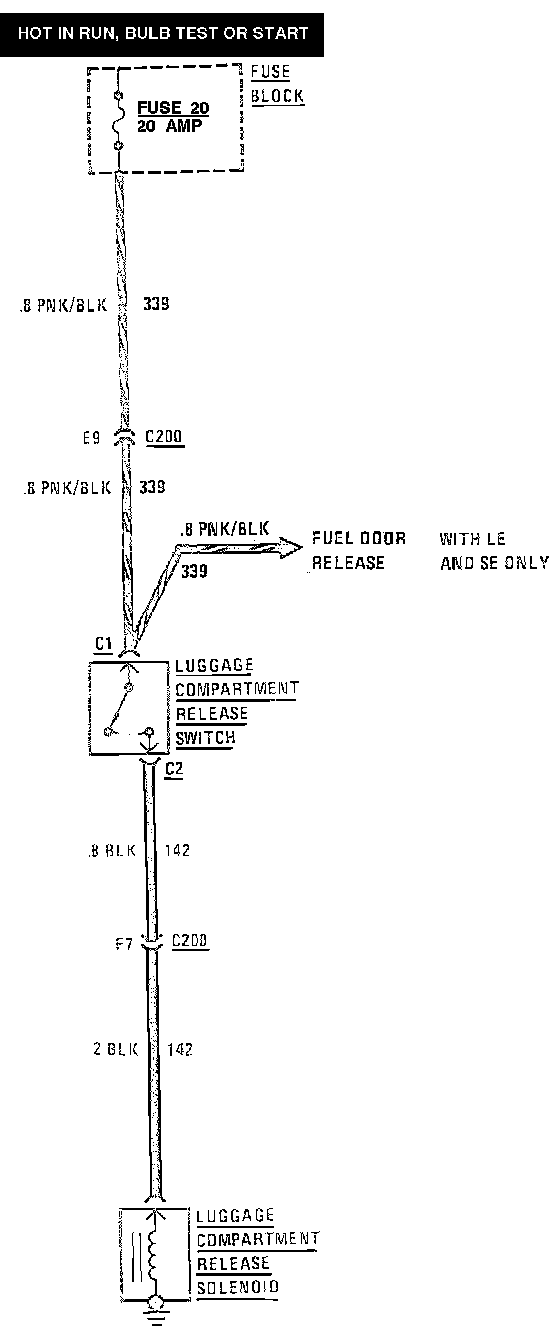

Trunk Relase Wiring Circuit:
