Brake Fluid Pressure Sensor/Switch: Testing and Inspection

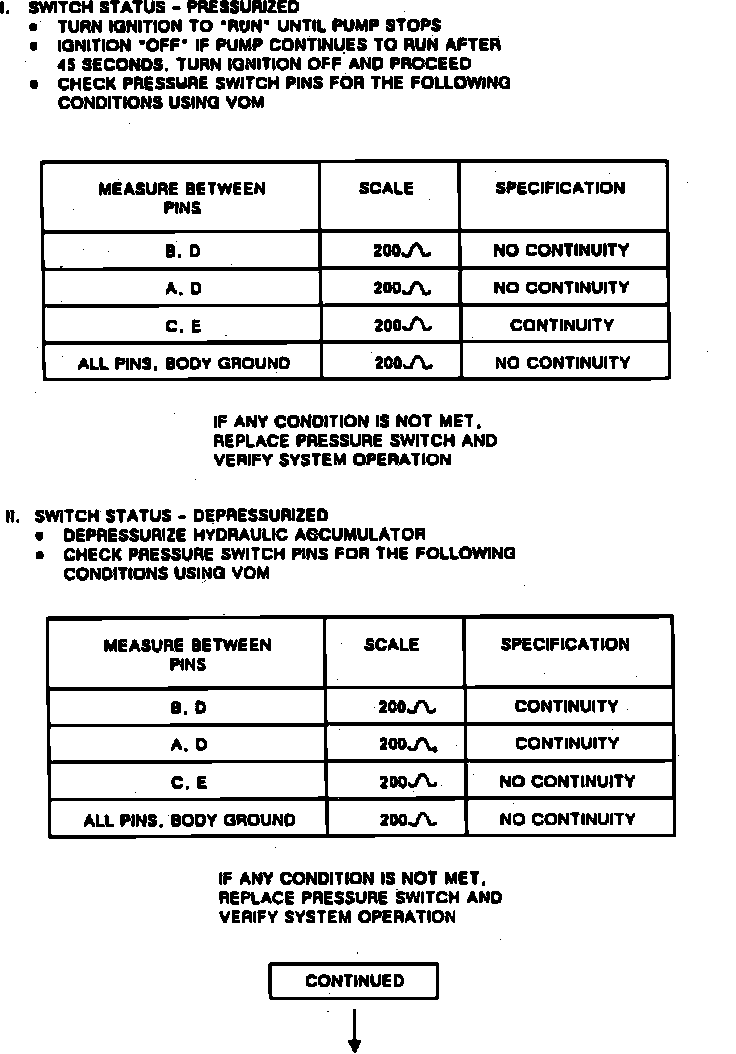

Fig. 82 Chart D-5, Pressure Switch Performance (Part 1 Of 2). 1989-90 Models Except 6000:

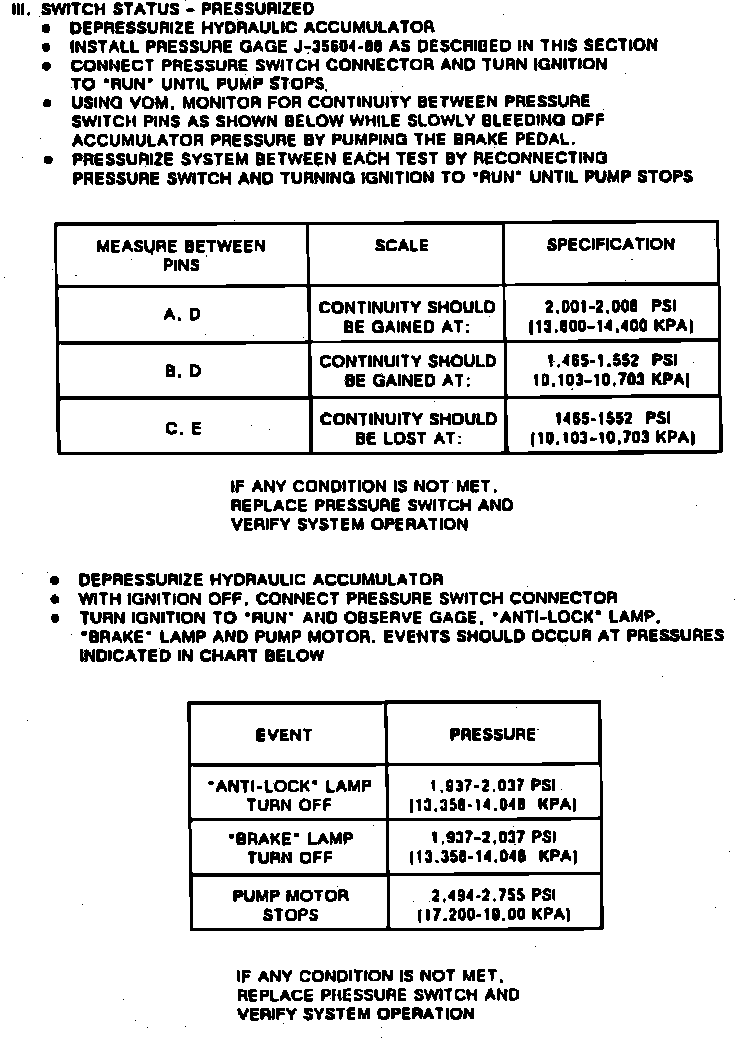

Fig. 82 Chart D-5, Pressure Switch Performance (Part 2 Of 2). 1989-90 Models Except 6000:
