Pontiac
>>
1989
>>
6000 V6-191 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Power Seat
Power Seat

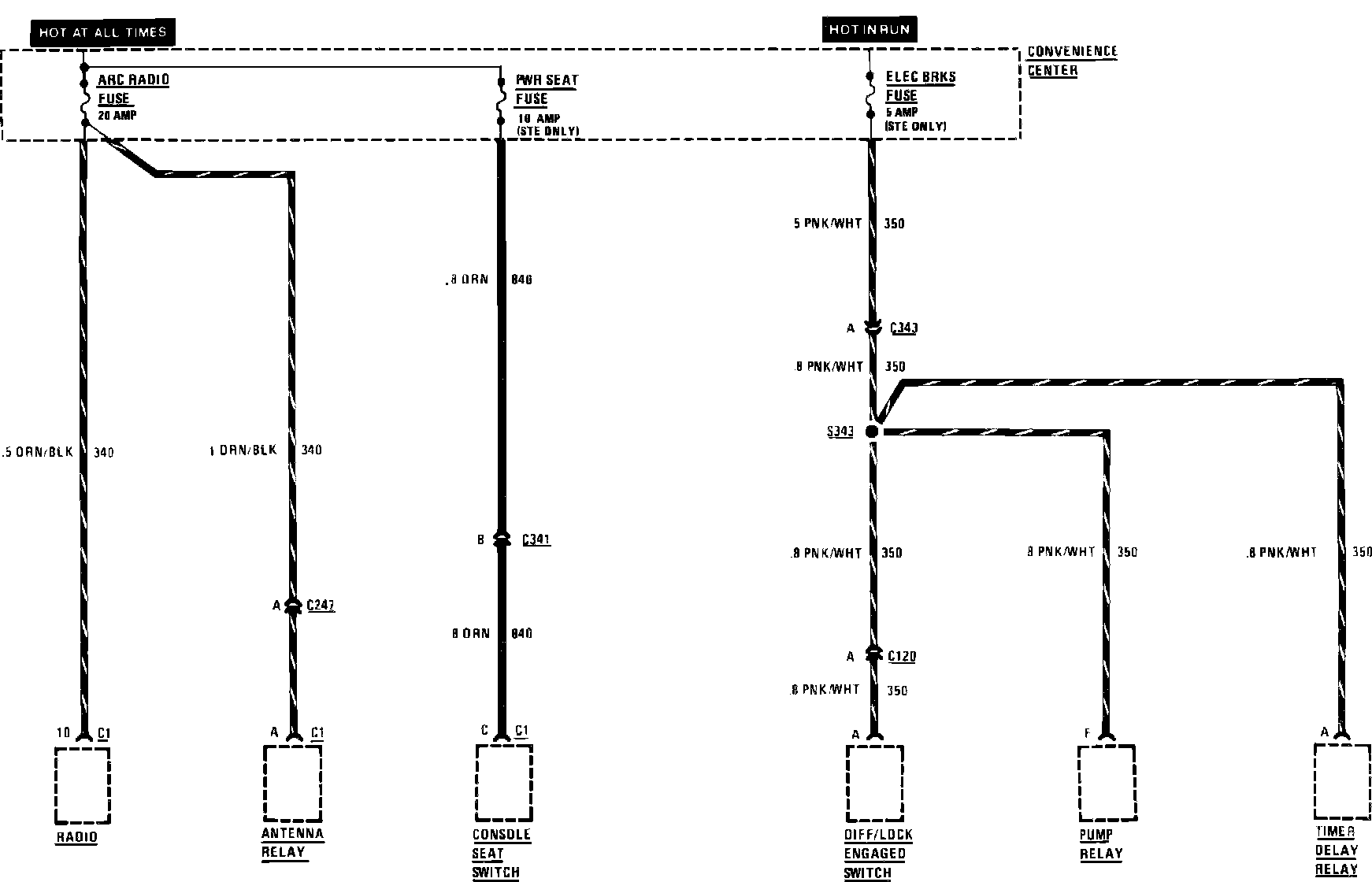

Fuse Block Details (ARC Radio, Elec Breaks & Power Seat):
