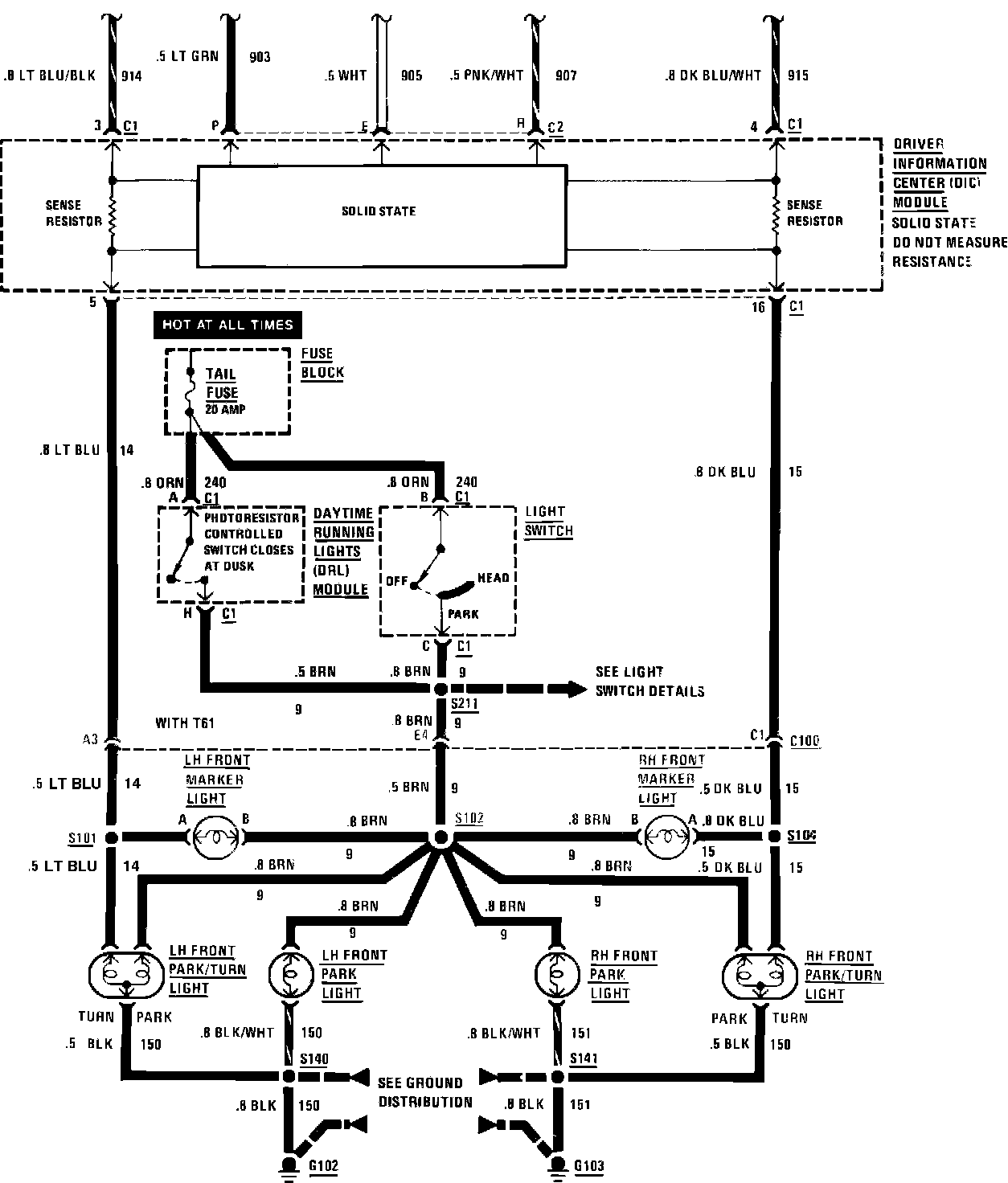

Parking Lamp
Parking Lamp

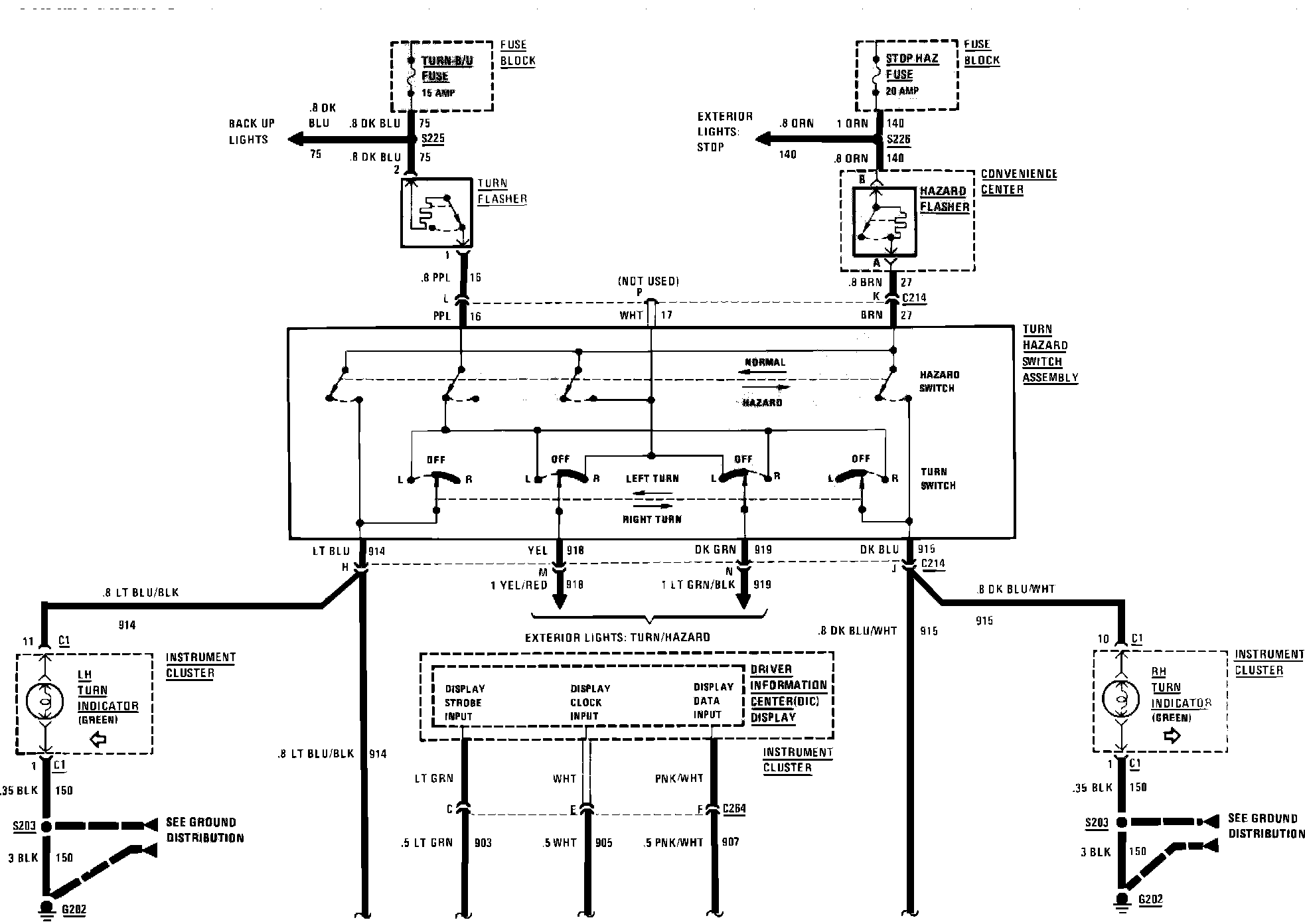

Exterior Lamps (Front Hazard, Marker, Park & Turn):
Exterior Lamps (Front Hazard, Marker, Park & Turn):
