Instruments - Updated Locations, DIC & Power Dist.

89pontiac18

Bulletin Number: 89-8-19
Reference Number: 938123
Publish Date: 6/89
Subject: SERVICE MANUAL UPDATE - SECTION 8A - COMPONENT LOCATION FIGURES, (REVISED PAGES)

Models

Affected: 1989 6000
SERVICE MANUAL UPDATE

A number of the Component Location Figure references in the 1989 Service Manual for Section 8A are incorrect. Please remove the following pages and replace with the new pages for the following Service manuals.

Old Pages New Pages
Year Service Manual Remove Add

1989 Pontiac 6000/STE

8A-10-6 8A-10-6

8A-86-6 8A-10-7
8A-86-7 8A-86-6
8A-86-7



8A-10-6

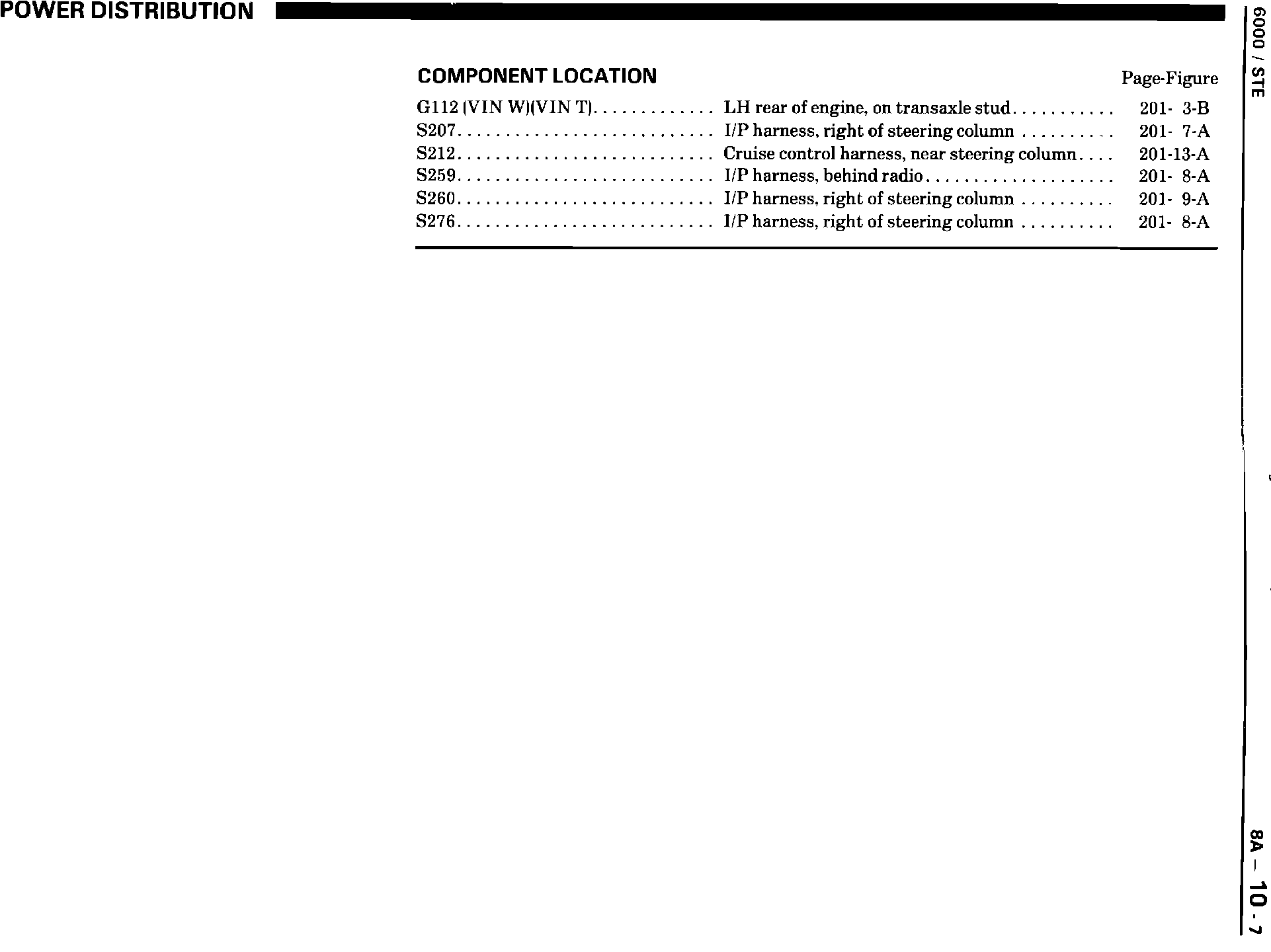

8A-10-7

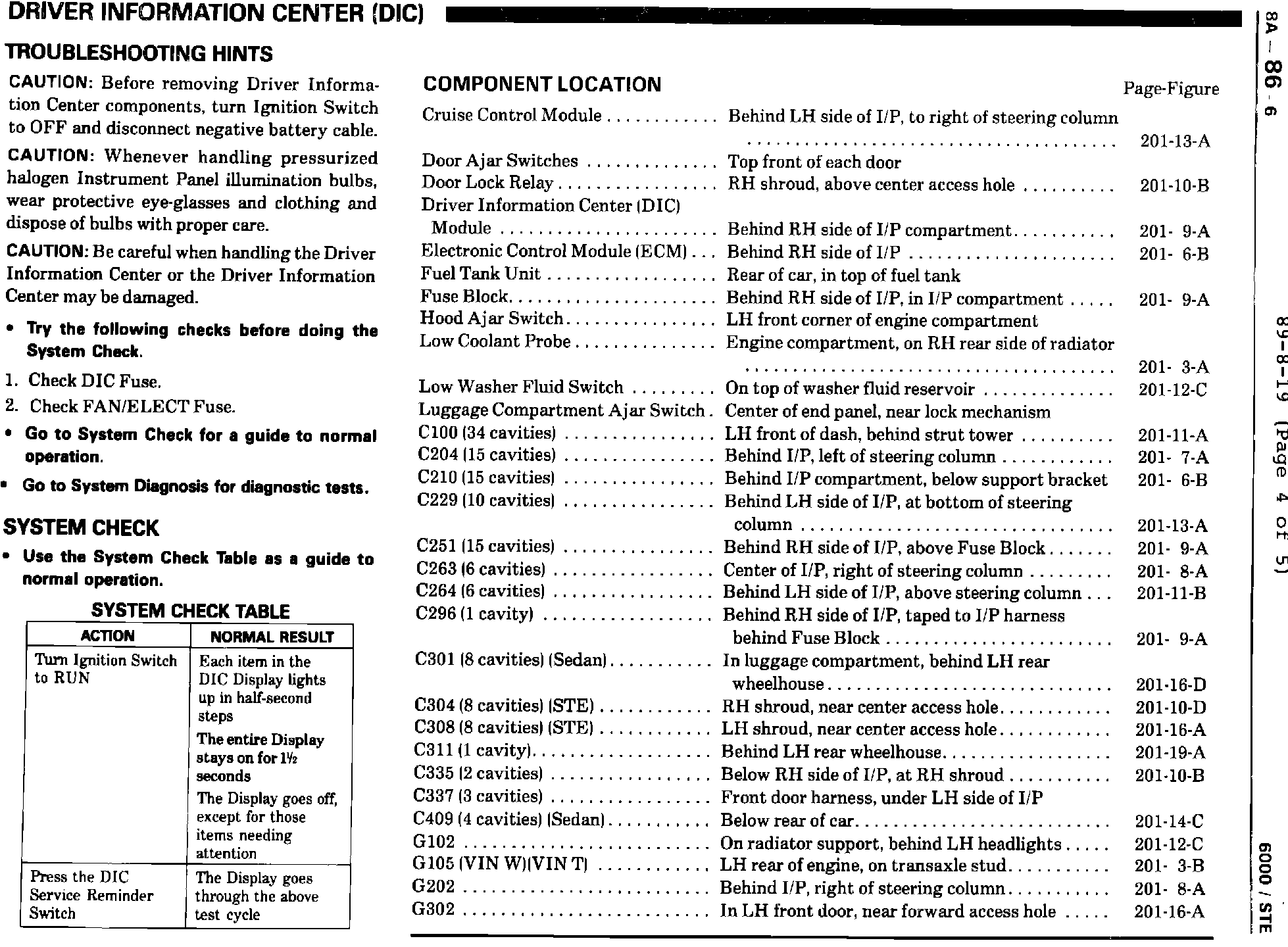

8A-86-6




8A-86-7
