Removal/Installation

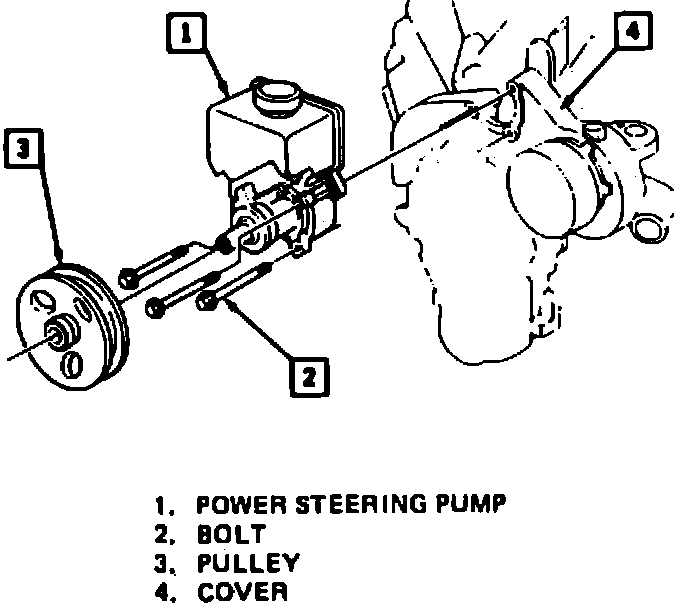

Fig. 12 Replacing Power Steering Pump. 2.5L:

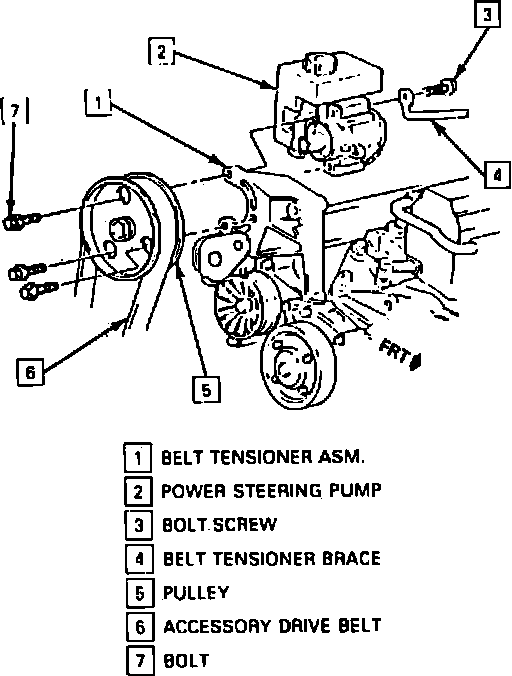

Fig. 13 Replacing Power Steering Pump. 2.8L & 3.1L:

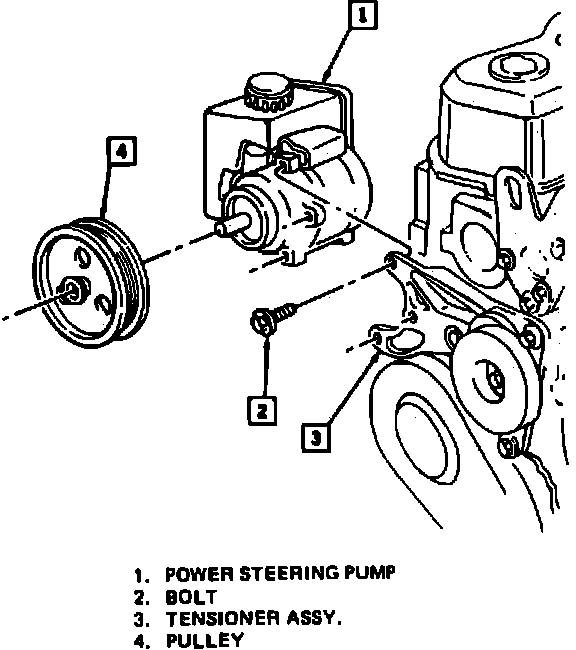

Fig. 13 Replacing Power Steering Pump. 3.3L:

1. Remove serpentine drive belt from pulley, then disconnect power steering lines at pump.
2. Remove pump retaining bolts, then pump, Figs. 12 through 14.
3. Reverse procedure to install, torquing bolts/nuts to specifications.
