Pontiac
>>
1989
>>
6000 L4-151 2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G303
G303

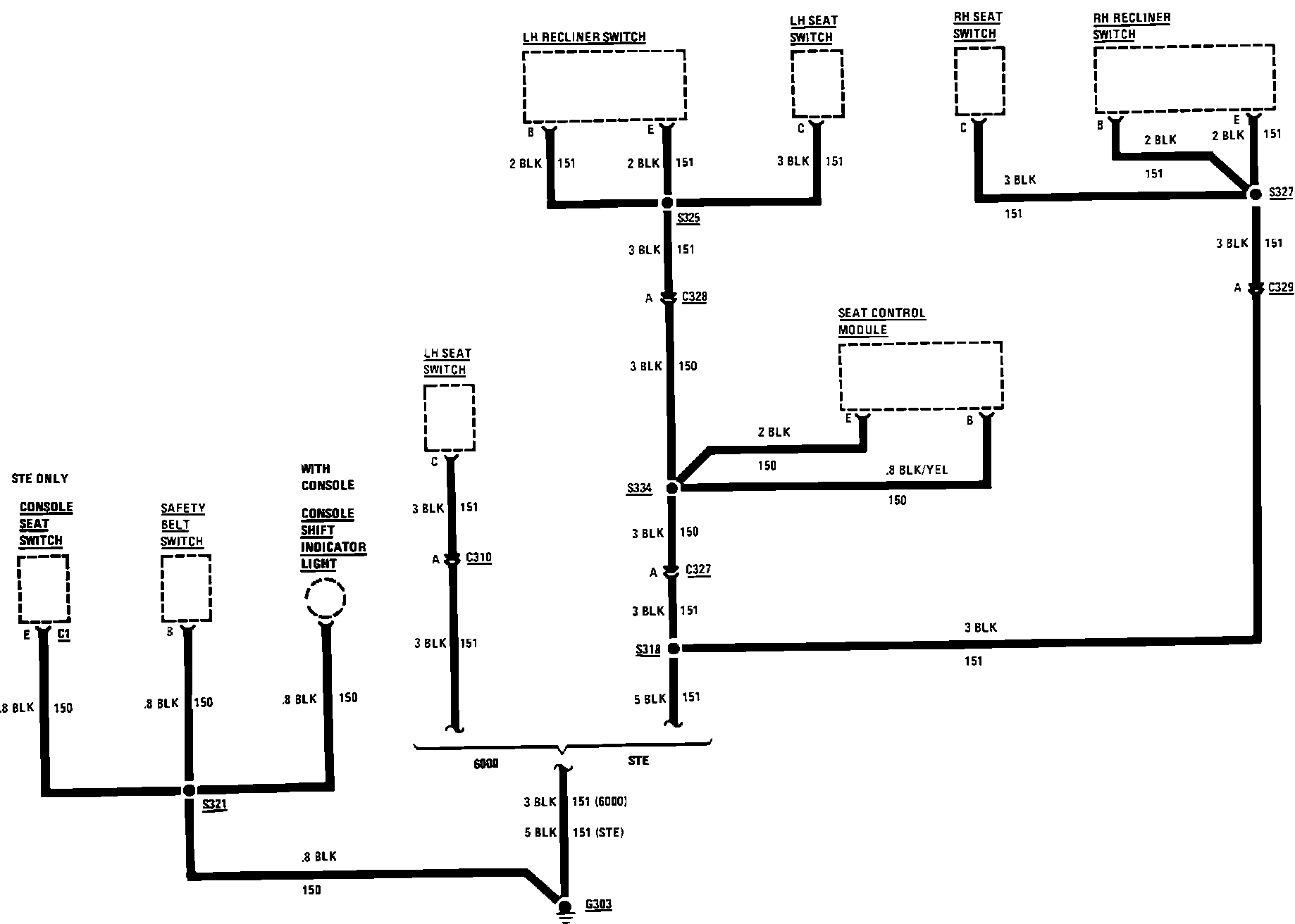

Ground Distribution (G303):
