Pontiac
>>
1989
>>
6000 L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G103
G103

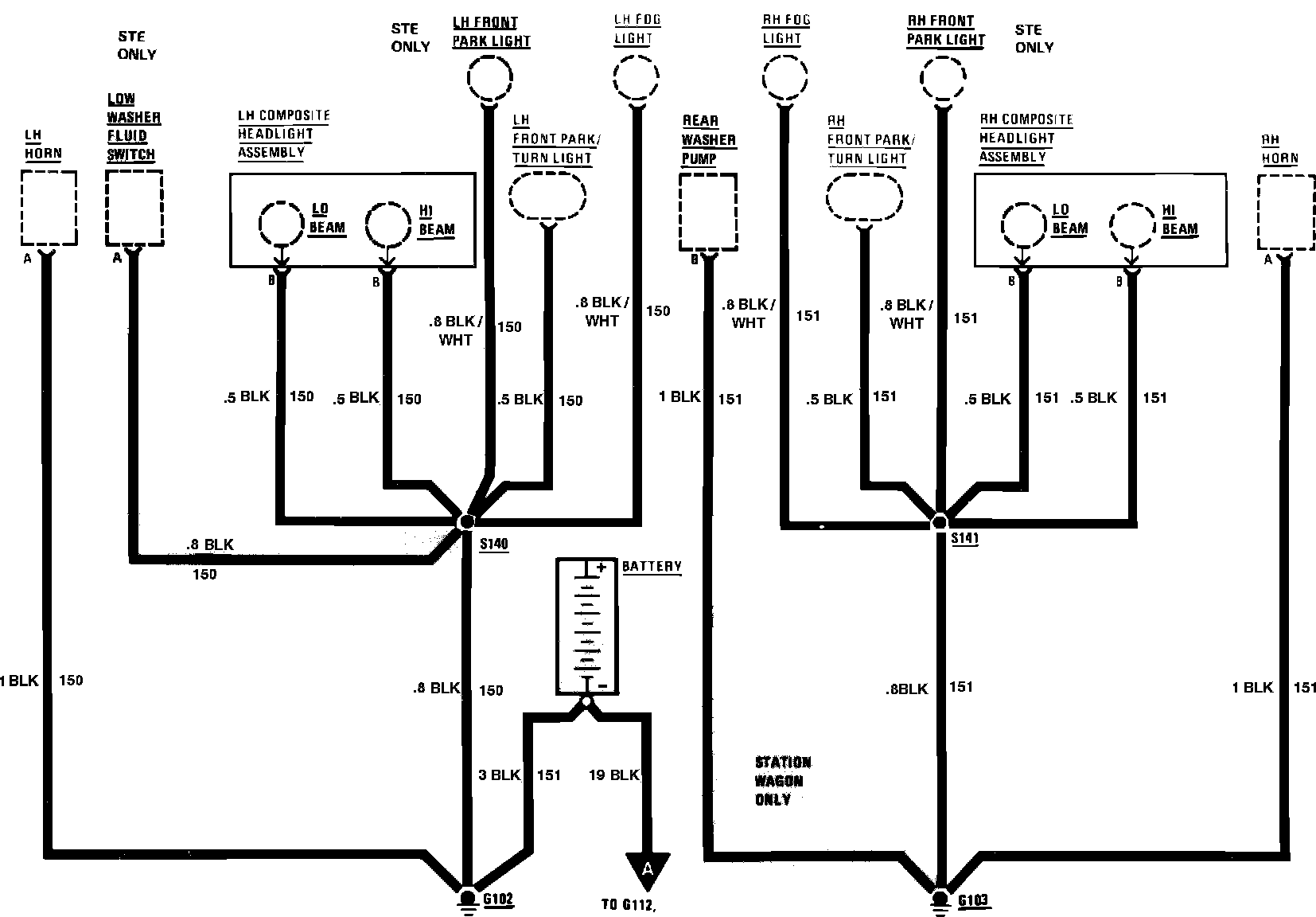

Ground Distribution (G102 & G103):
