Pontiac
>>
1988
>>
Safari Wagon V8-305 5.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Details
Fuse Block Details

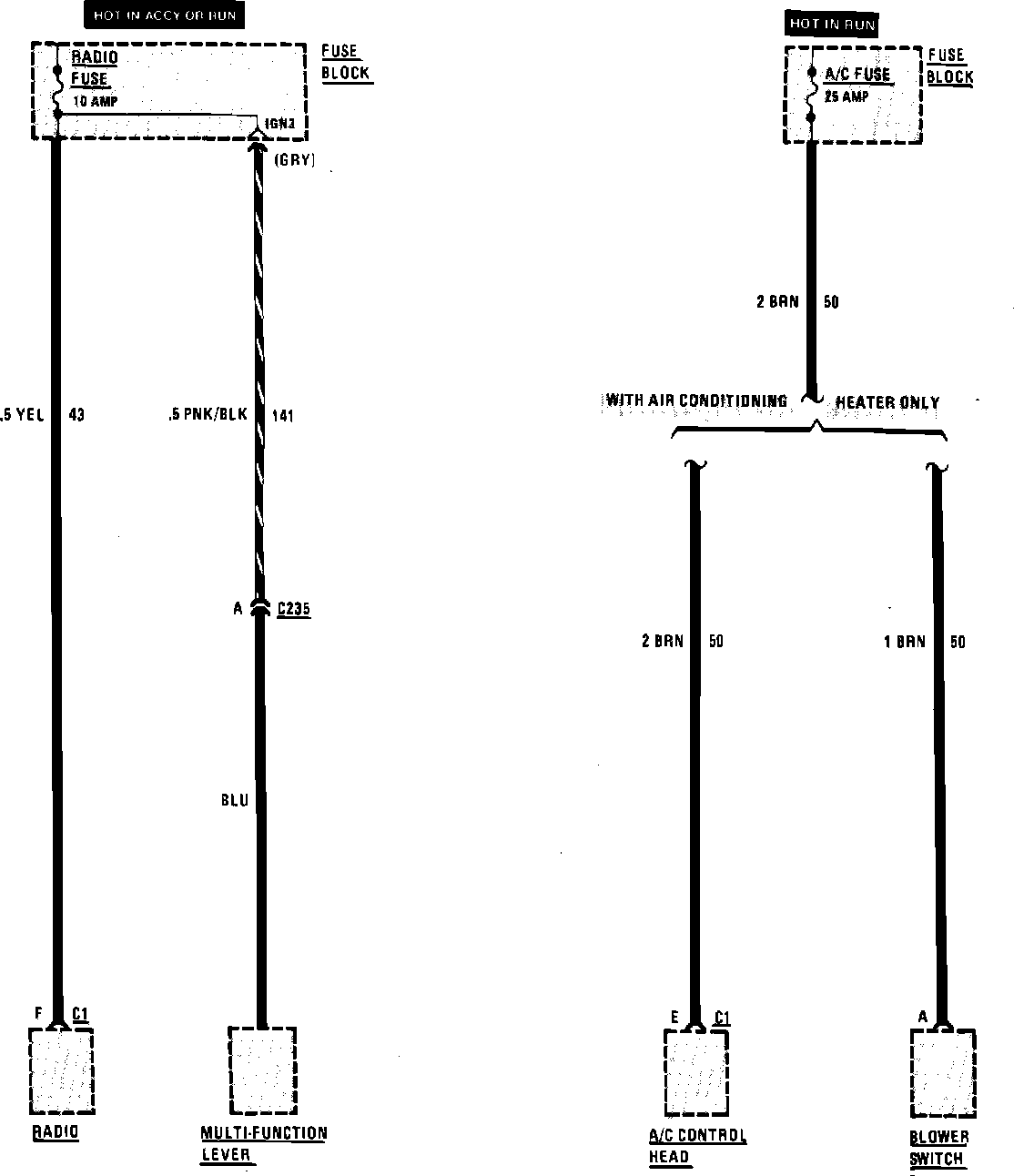

Fuse Block Details (A/C Fuse & Radio Fuse):
