Pontiac
>>
1988
>>
Safari Wagon V8-305 5.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Compressor Controls
Compressor Controls

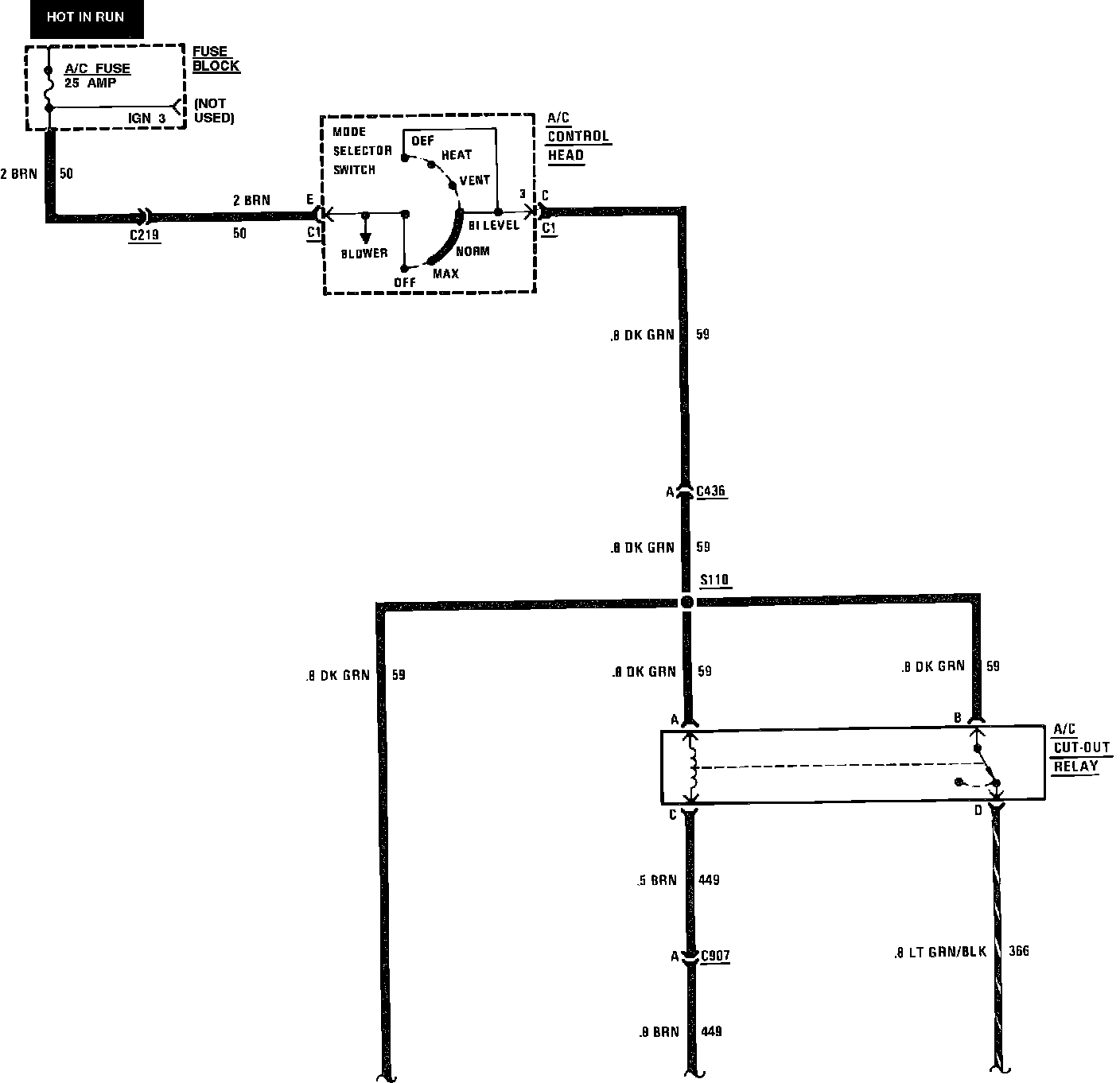

A/C Compressor Controls Wiring Circuit (W/Manual A/C):
A/C Compressor Controls Wiring Circuit (W/Manual A/C):
