Pontiac
>>
1988
>>
Safari Wagon V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Power Distribution
>>

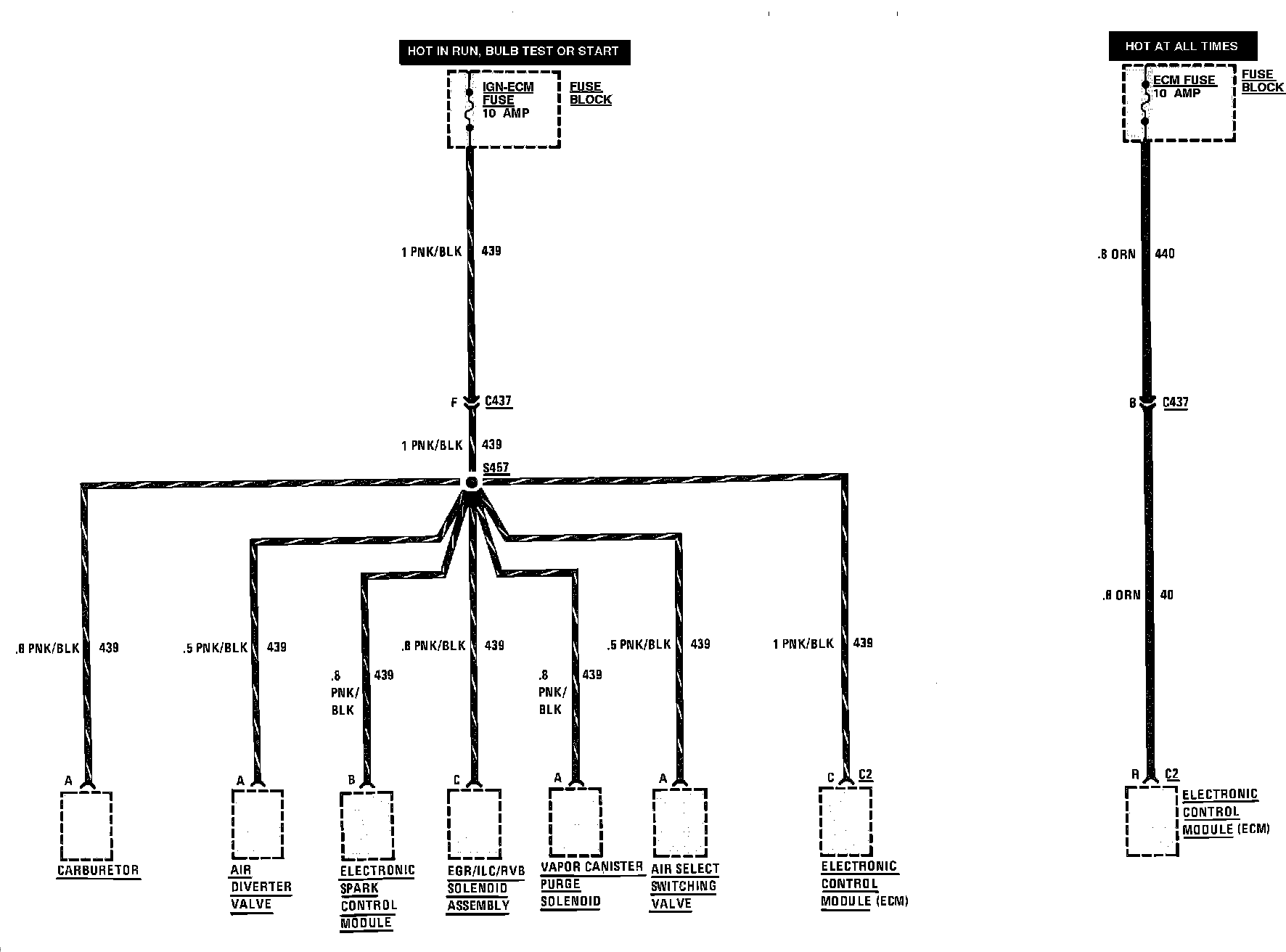

ECM & Ignition Fuses
ECM & Ignition Fuses
ECM Fuse & Ignition/ECM Fuse:
