Home
>>
Pontiac
>>
1988
>>
Safari Wagon V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Control Assembly, HVAC
Control Assembly, HVAC

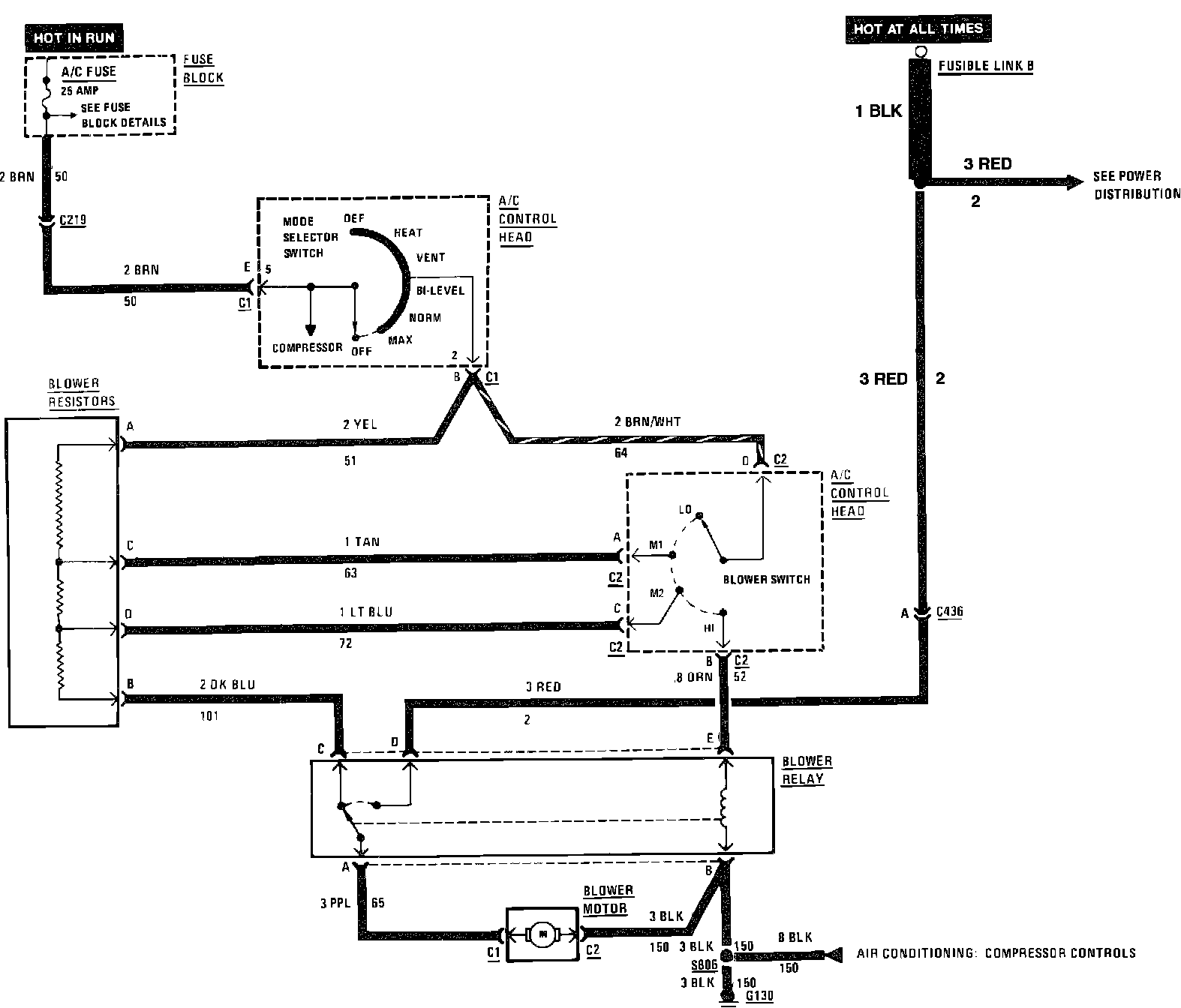

A/C Blower Controls Wiring Circuit (W/Manual A/C):
