Front Suspension

Fig. 1 Exploded view of front suspension:

1. Raise vehicle and support so that front suspension hangs free.
2. Remove left front wheel and tire assembly.
3. Disconnect stabilizer bar link assemblies from control arms, Fig. 1.
4. Remove stabilizer bar bracket attaching bolts, then the bushings, brackets and stabilizer bar.

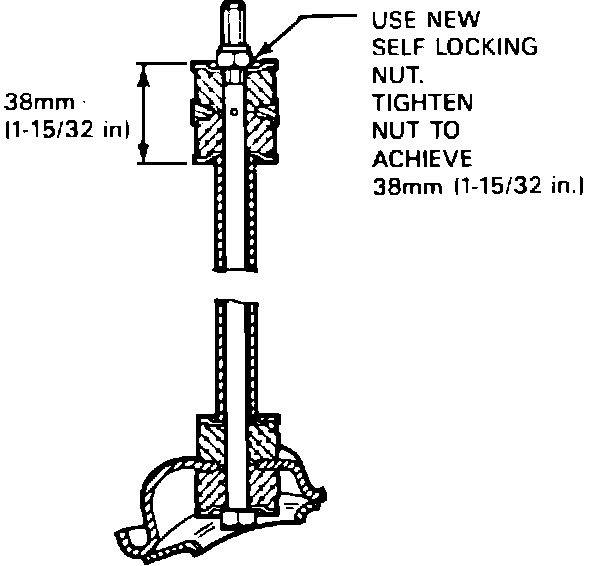

Fig. 8 Stabilizer bar attaching nut installation:

5. Reverse procedure to install. Torque stabilizer bar-to-body bolts to 29 ft.lbs and the stabilizer bar-to-control arm nuts to a length of 1-15/32 inch, Fig. 8.
