Pontiac
>>
1988
>>
Lemans FWD L4-98 1.6L
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Steering Column
>>
Key Reminder Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

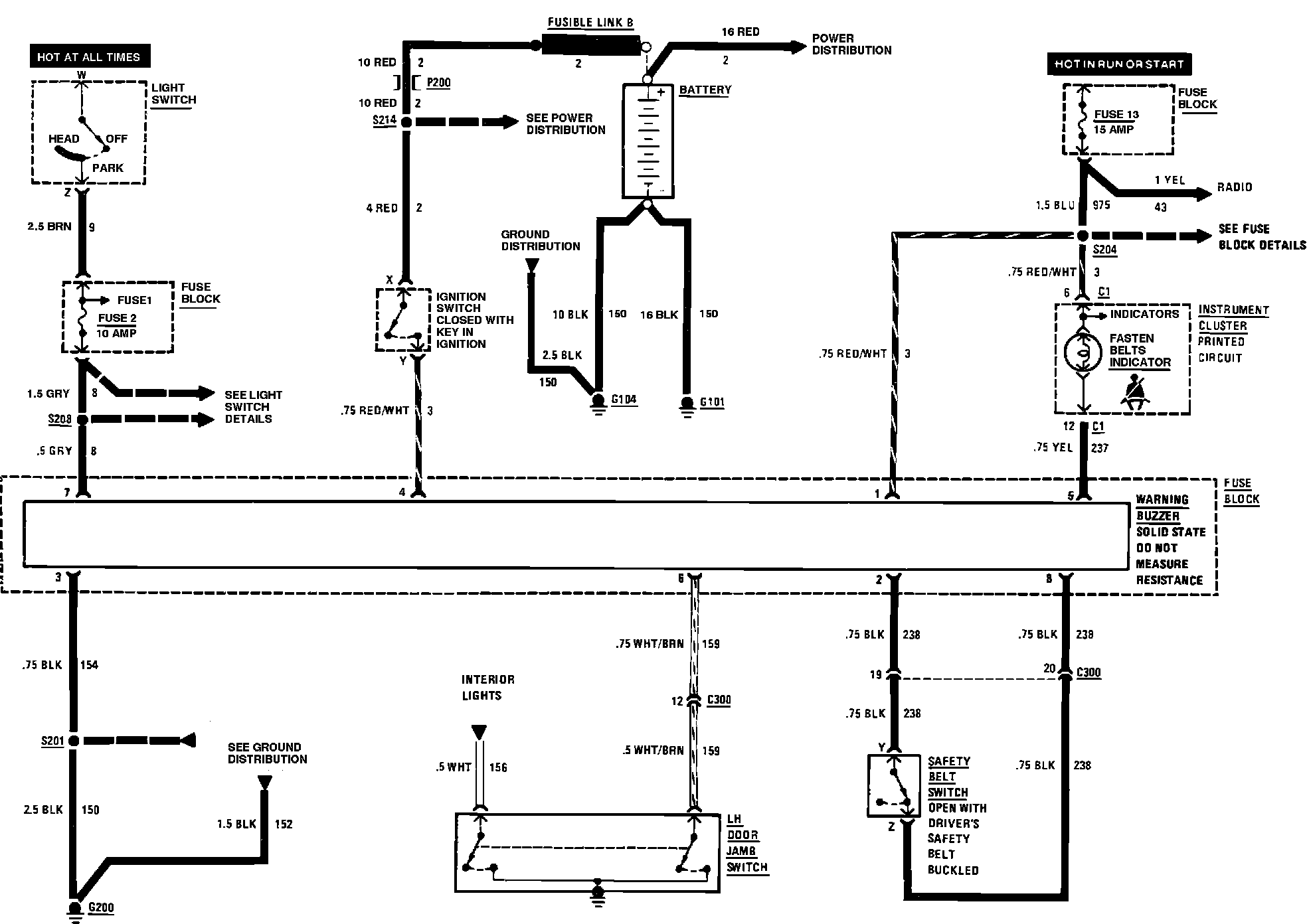

Warnings & Alarms (Lights-On, Seatbelt, Ignition Key):
