Reservoir Replacement

Exploded View Of Master Cylinder Assembly:

REMOVAL:
1. Disconnect electrical connector from reservoir cap (1).
2. Remove brake fluid from reservoir (2).

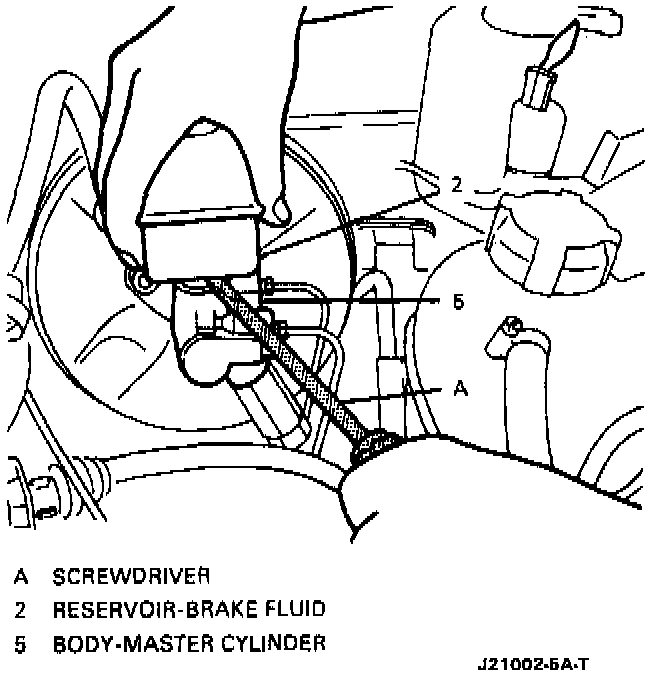

Removing Reservoir:

3. Press back retaining clamps (4) using screwdriver.

NOTE: Tilt reservoir (2) and remove upward.

4. Remove reservoir seals (3) from master cylinder body (5).

INSTALLATION:
1. Lubricate new seals (3) with clean brake fluid and install into cylinder body (5).

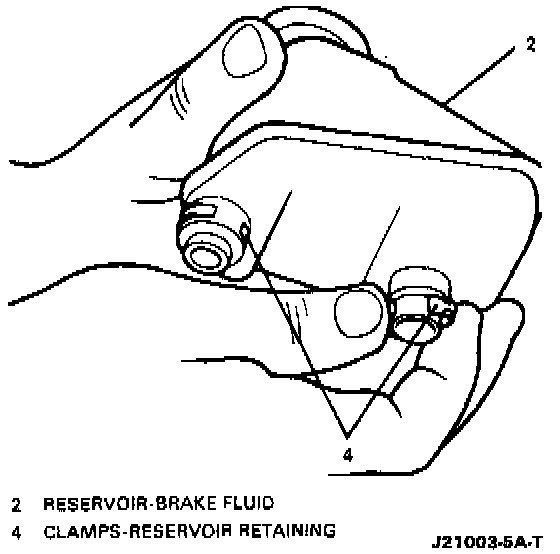

Retaining Clamp Installation:

2. Install new clamps (4) on reservoir (2).
3. Install reservoir (2) onto cylinder body (5).

CAUTION: Clamps (4) must audibly catch in place to be properly seated.

4. Bleed brake system.
5. Connect electrical connector.
