Pontiac
>>
1988
>>
Lemans FWD L4-98 1.6L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 34
>>
Without Scan Tool
Without Scan Tool

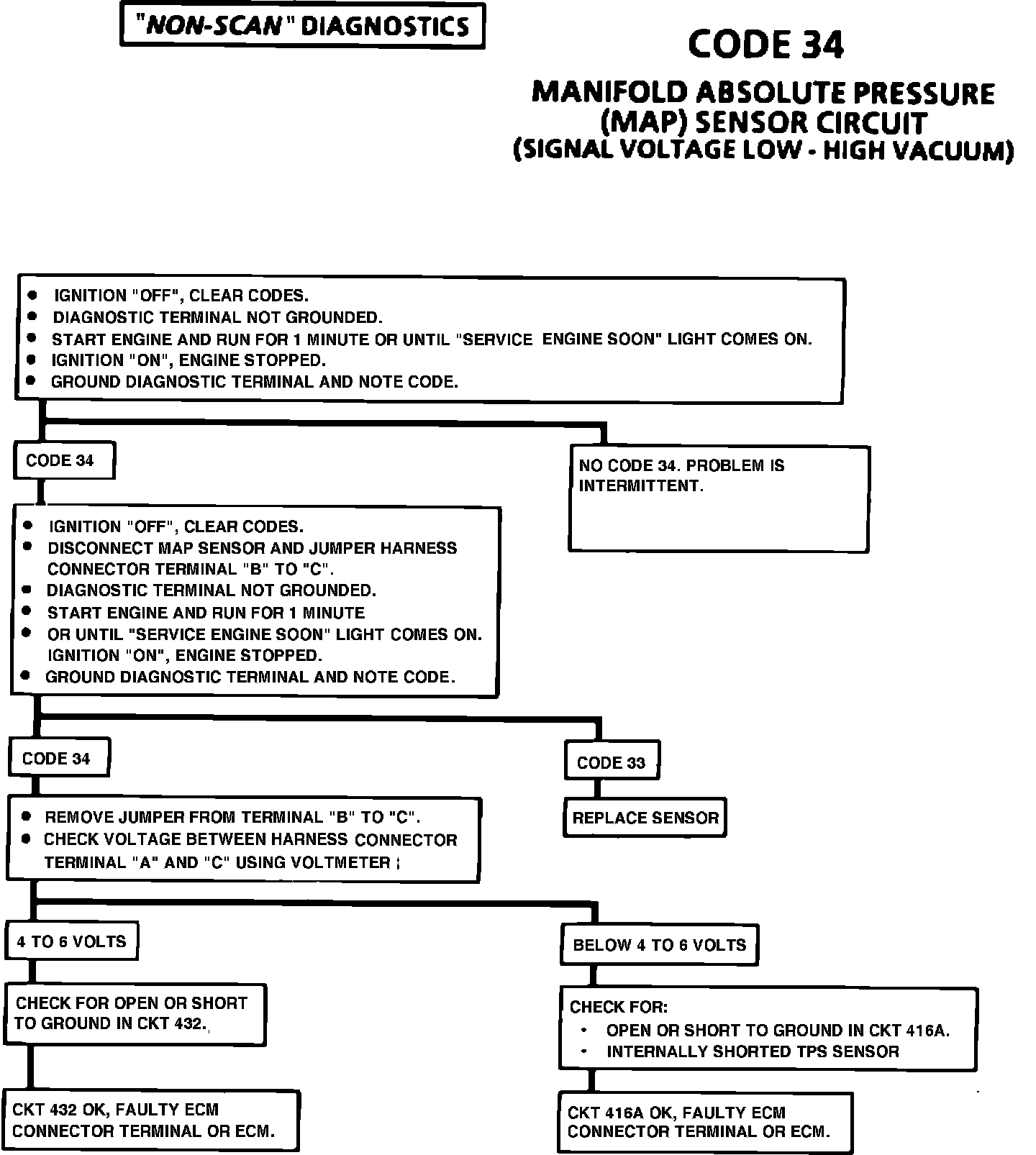

Fig. 33 Code 34 non-SCAN diagnosis:
