A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 22
>>
Without Scan Tool
Without Scan Tool

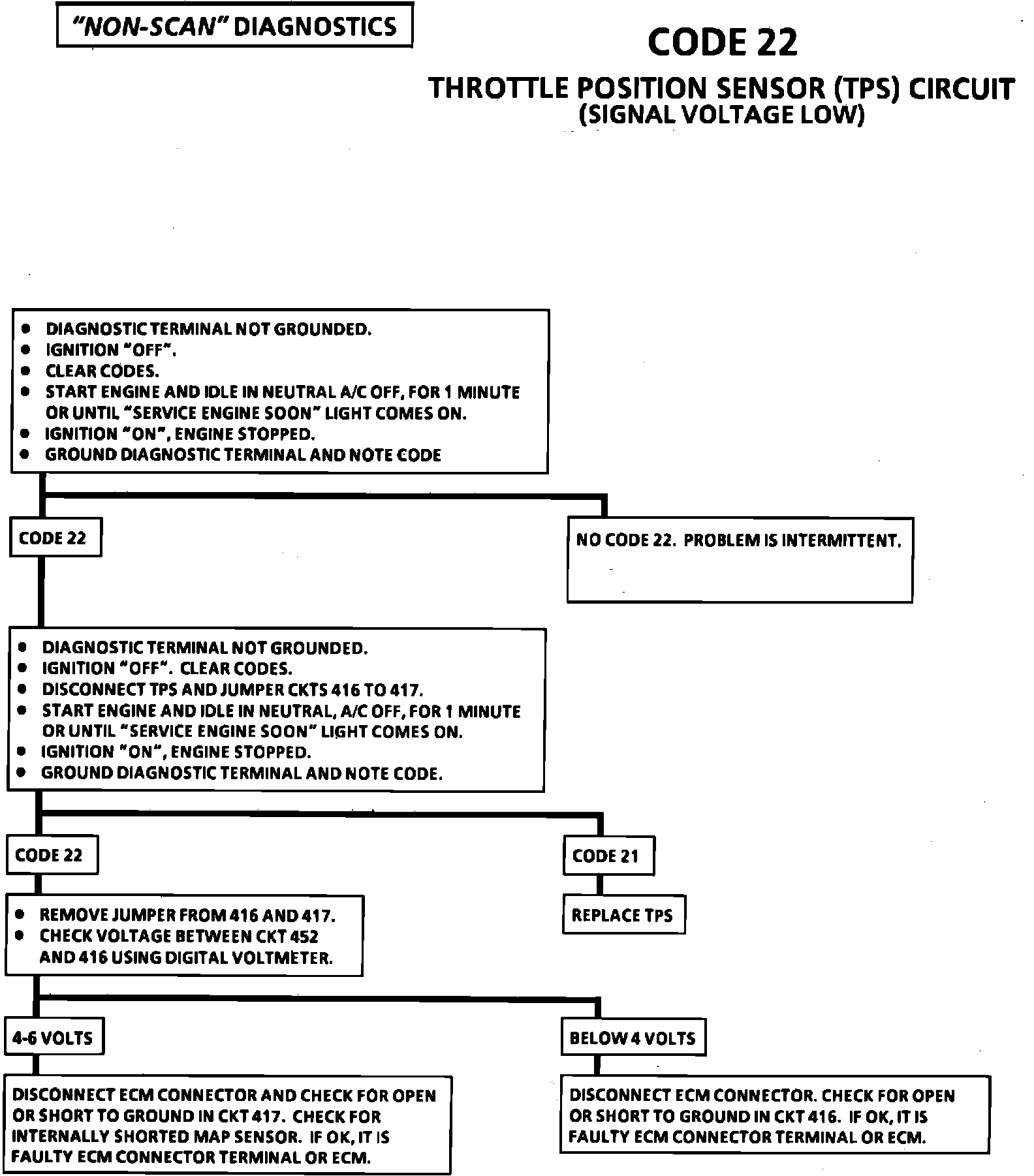

Fig. 30 Code 22 non-SCAN diagnosis:
