Pontiac
>>
1988
>>
Lemans FWD L4-98 1.6L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 22
>>
With Scan Tool
With Scan Tool

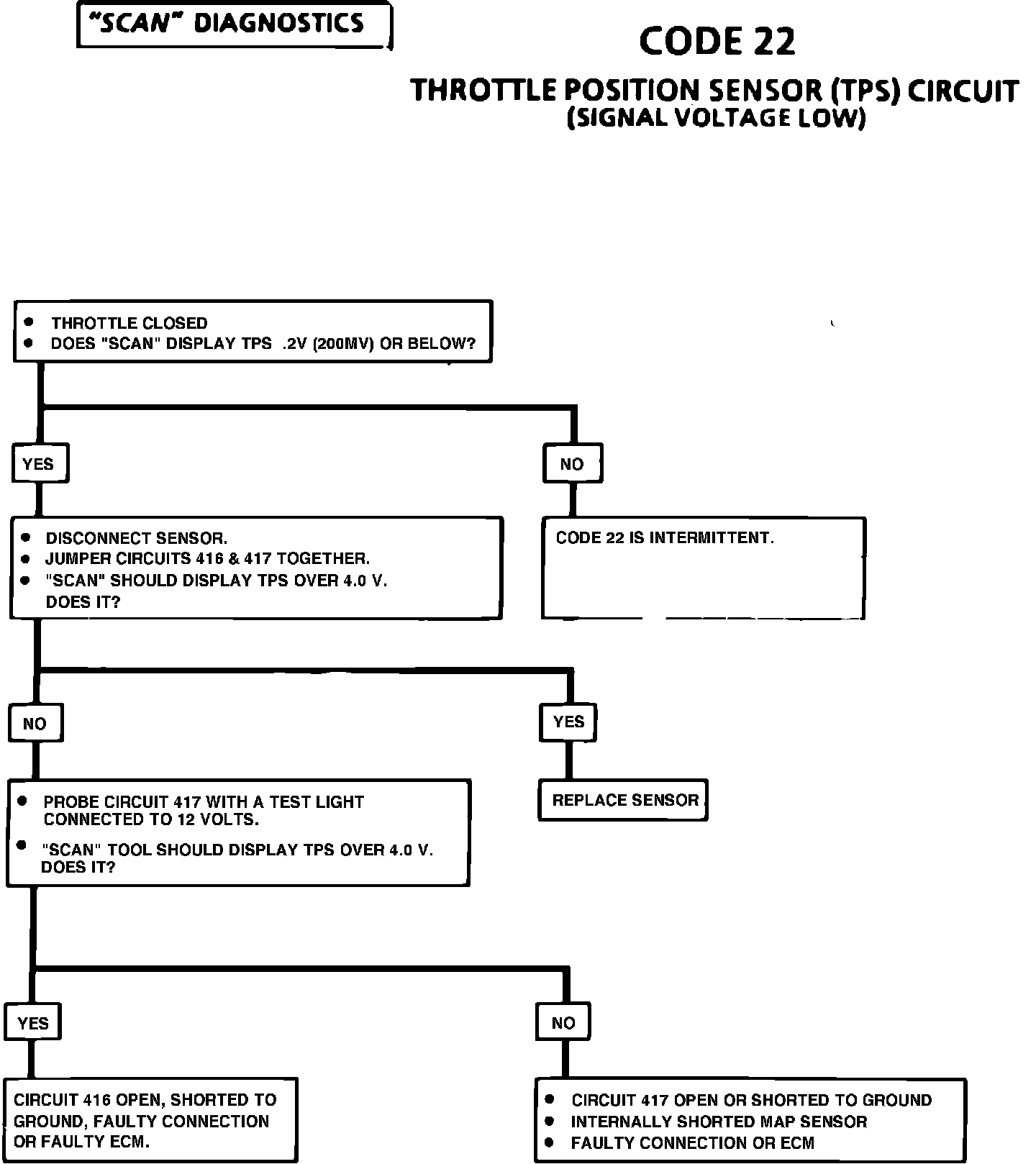

Fig. 15 Code 22 SCAN diagnosis:
