A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 14
>>
With Scan Tool
With Scan Tool

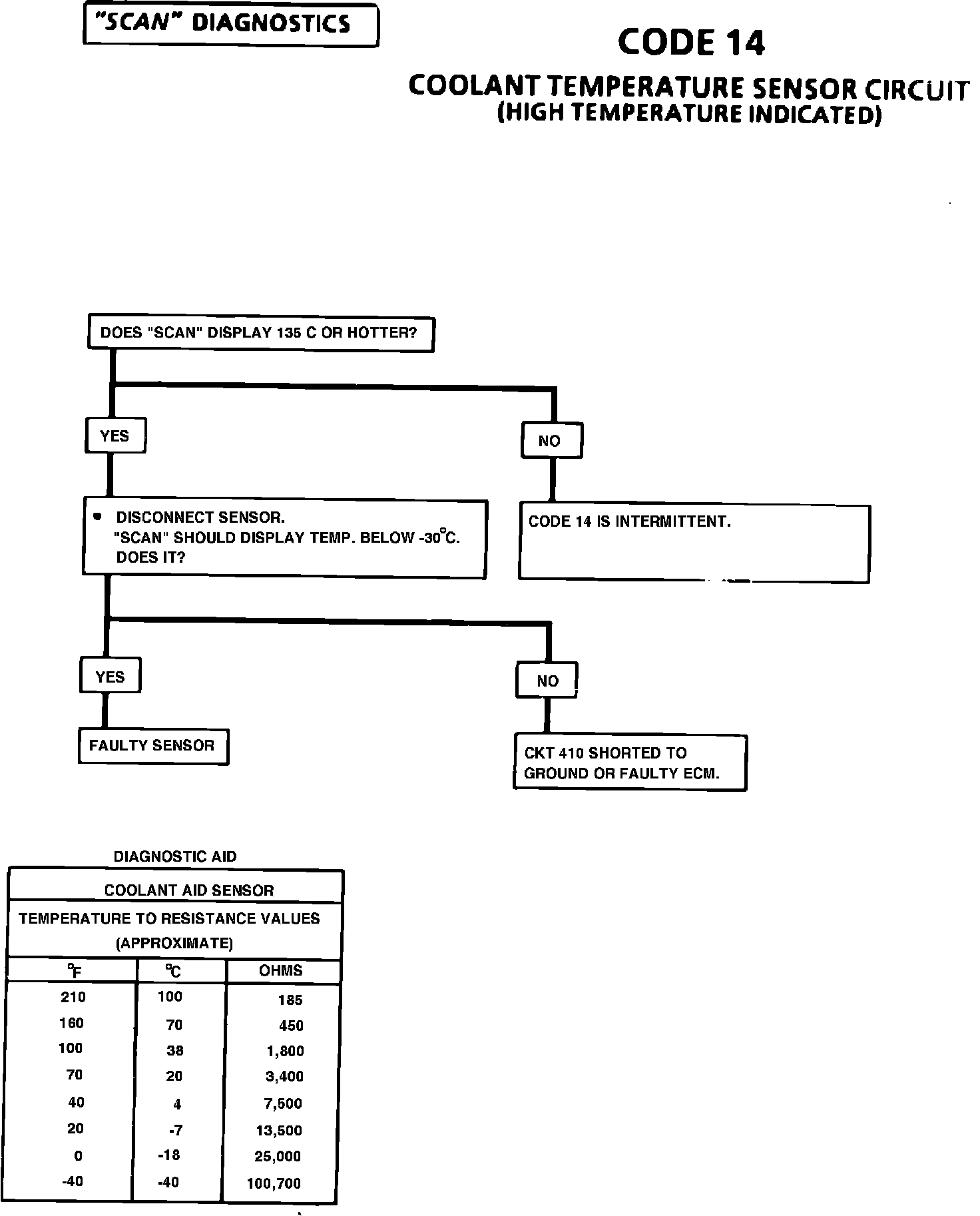

Fig. 12 Code 14 SCAN diagnosis:
