Home
>>
Pontiac
>>
1988
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>
Except Convertible
Except Convertible

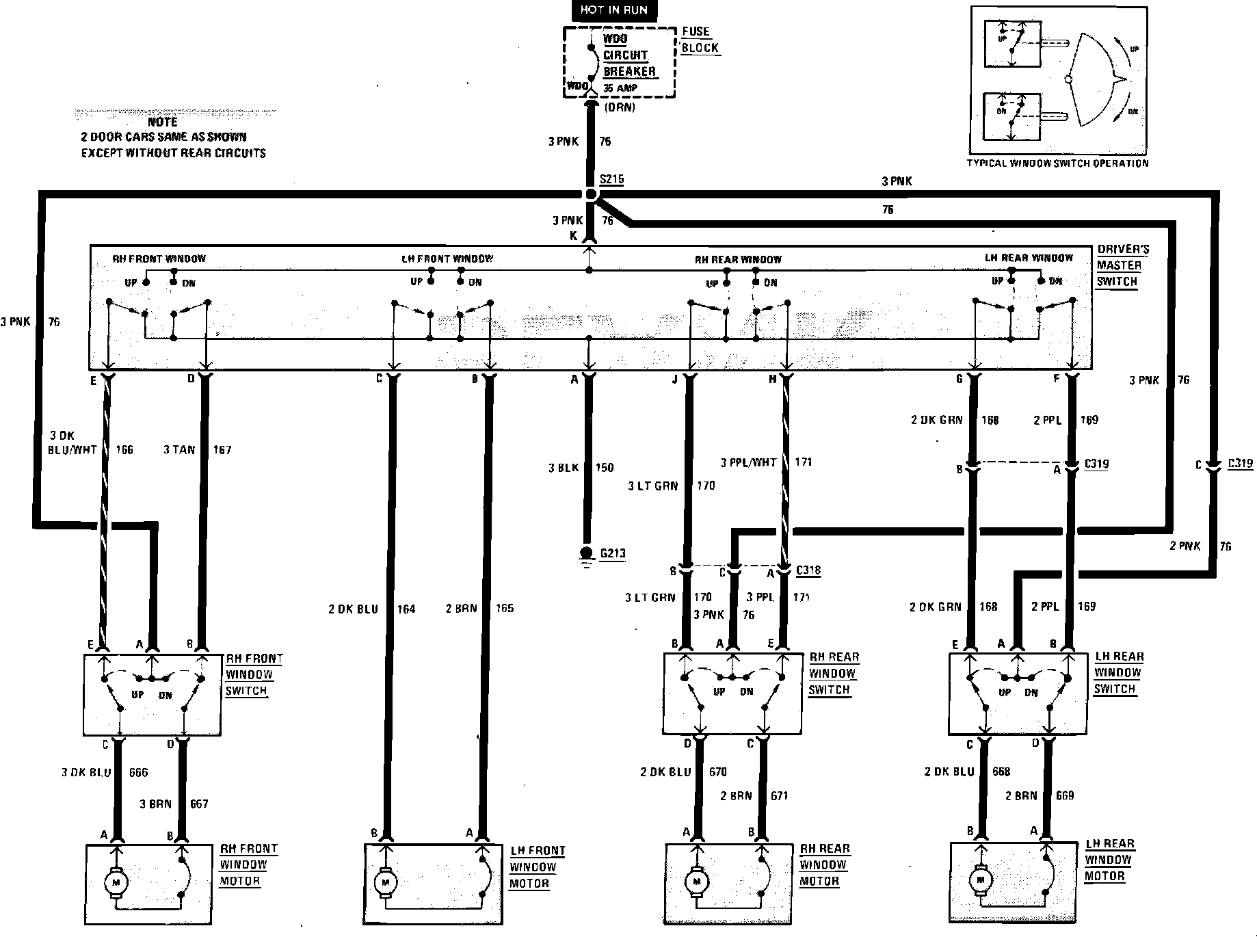

Fig. 274 Power Window Wiring Circuit Less Convertible:
