Pontiac
>>
1988
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

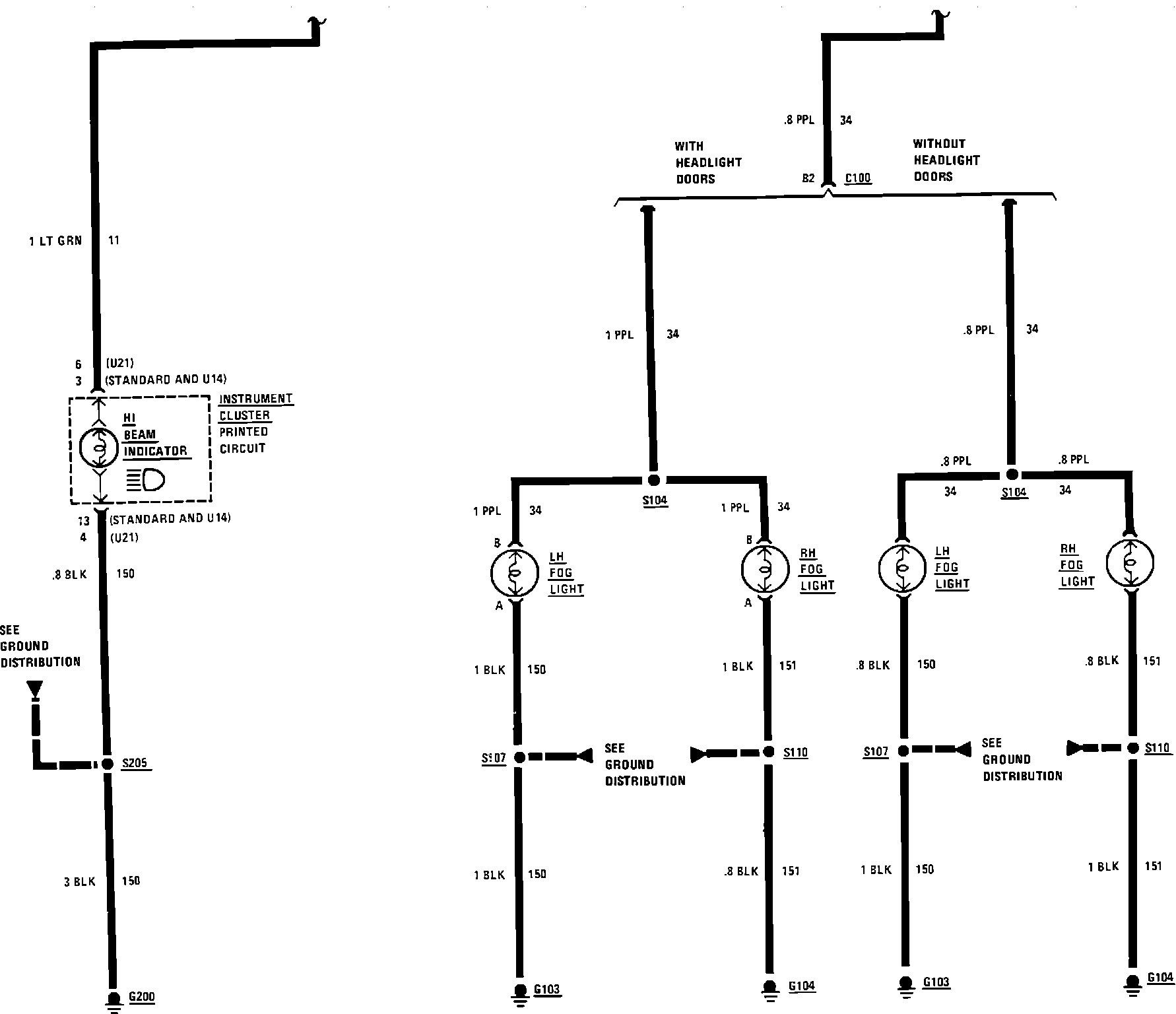

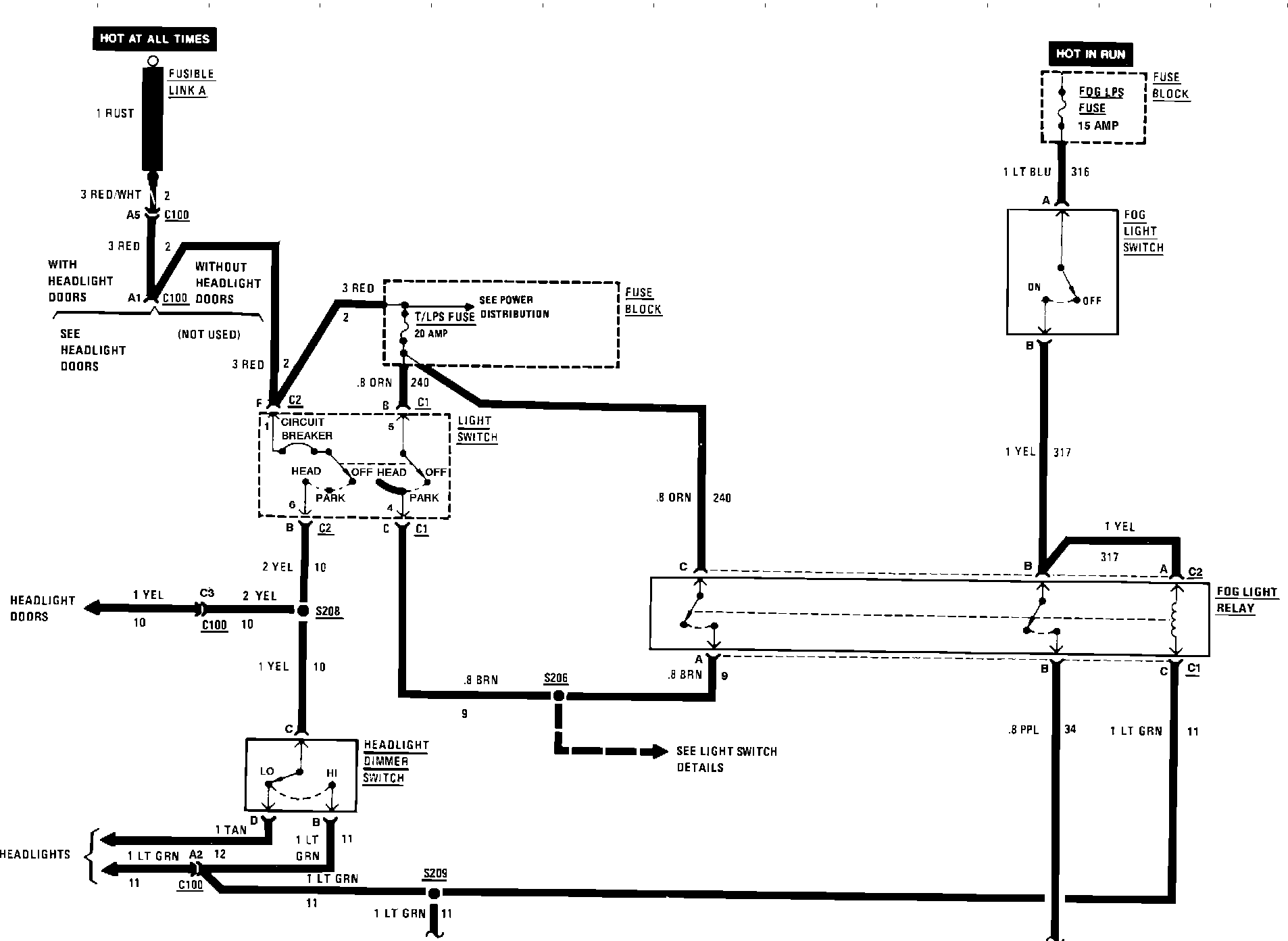

Fog Light Wiring Circuit:
Fog Light Wiring Circuit:
