J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Delay
With Delay

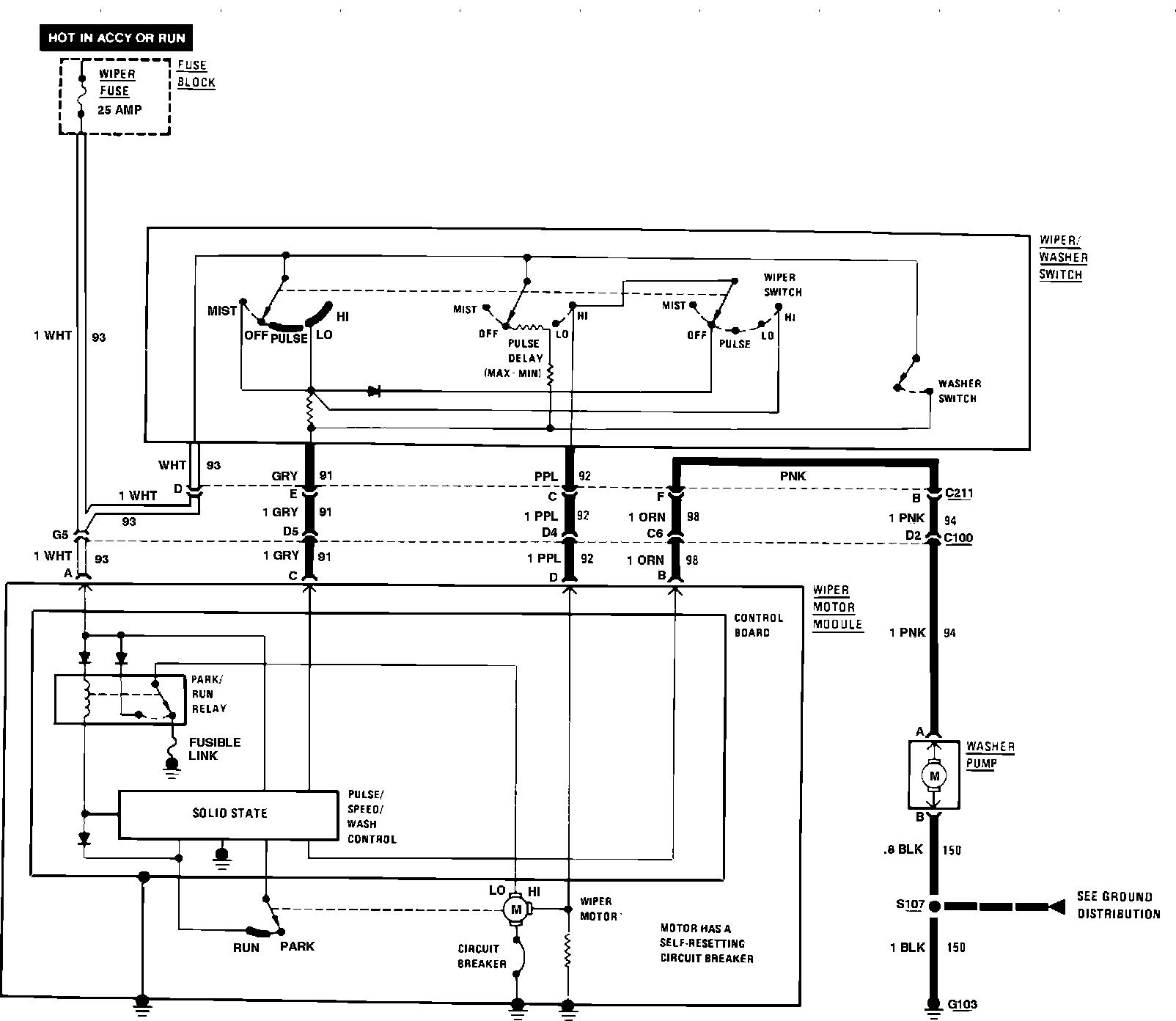

Windshield Wiper/Washer Wiring Circuit (W/Interval Wiper):
