Home
>>
Pontiac
>>
1988
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
Seats

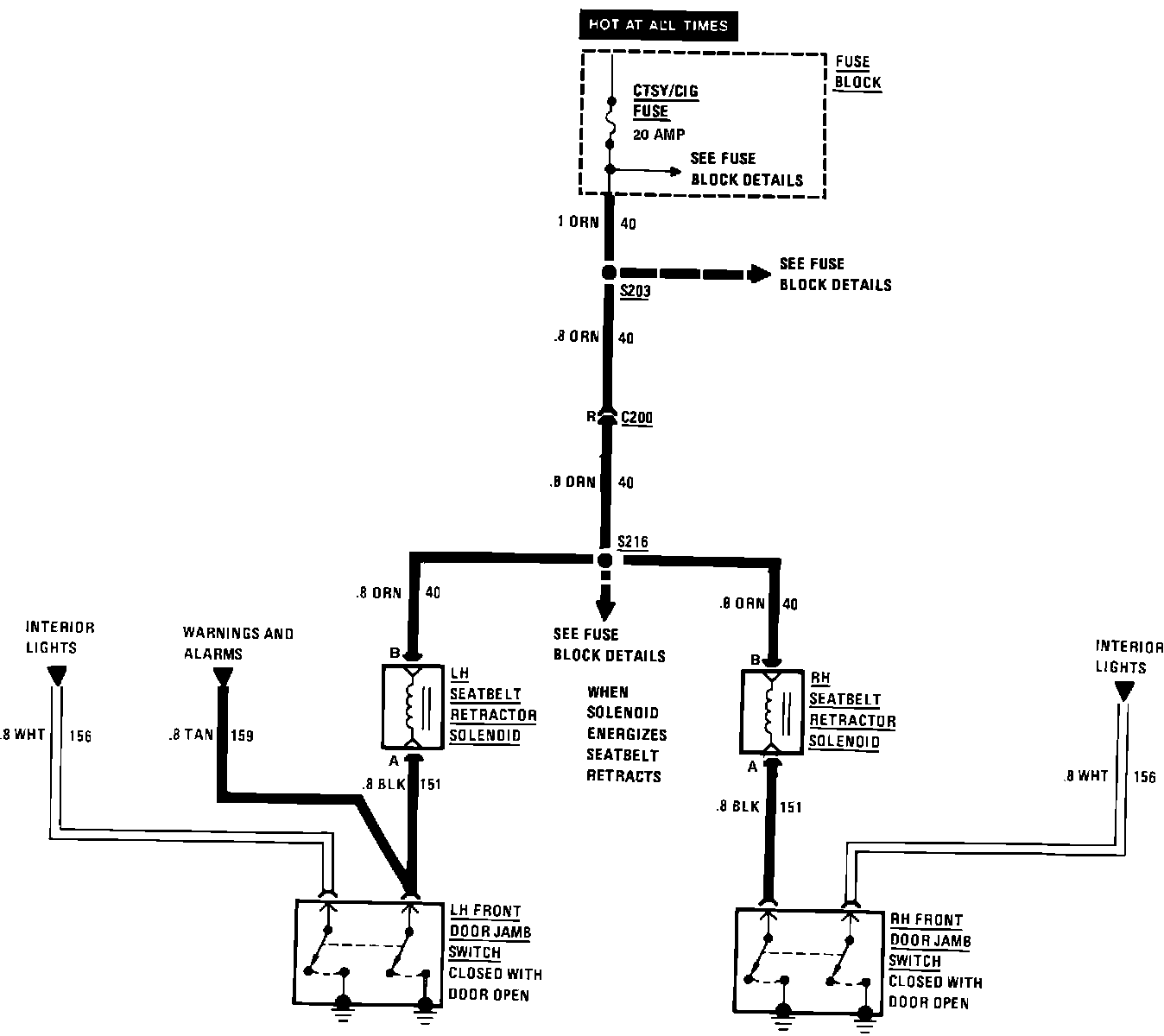

Power Seatbelt Retractor Wiring Circuit (Convertible):
