Parts, Service Procedure & Campaign Label Information
PARTS INFORMATIONParts required to complete this campaign are to be obtained from General Motors Service Parts Operations (GMSPO). To ensure that these parts will be obtained as soon as possible, they should be ordered from GMSPO on a "C.I.O." order with no special instruction code, but on an advise code (2).
Quantity/
Description Part Number Vehicle
Lever, Park Brake 10130137 1
Retainer, Park Brake Cable 18016553 1 As Required
SERVICE PROCEDURE
1. Replace park brake pedal assembly with new assembly (P/N 10130137) per 1988 Grand Prix Service Manual, Section 5, Page 13.

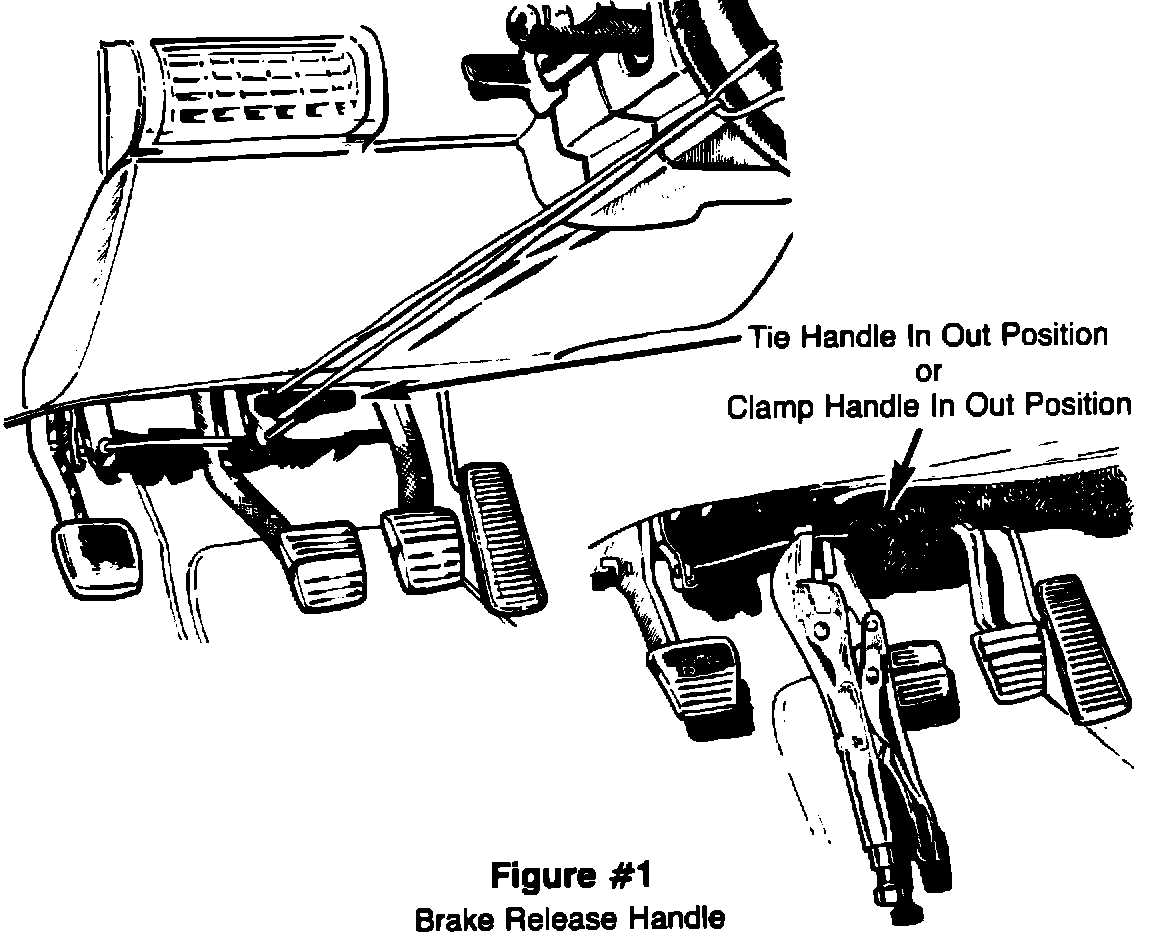

FIGURE 1 - BRAKE RELEASE HANDLE:
2. Pull park brake release handle out and hold in release position by tying to steering wheel or clamping vise grip on handle close to dash bracket (see Figure 1).
3. Raise and suitably support vehicle.

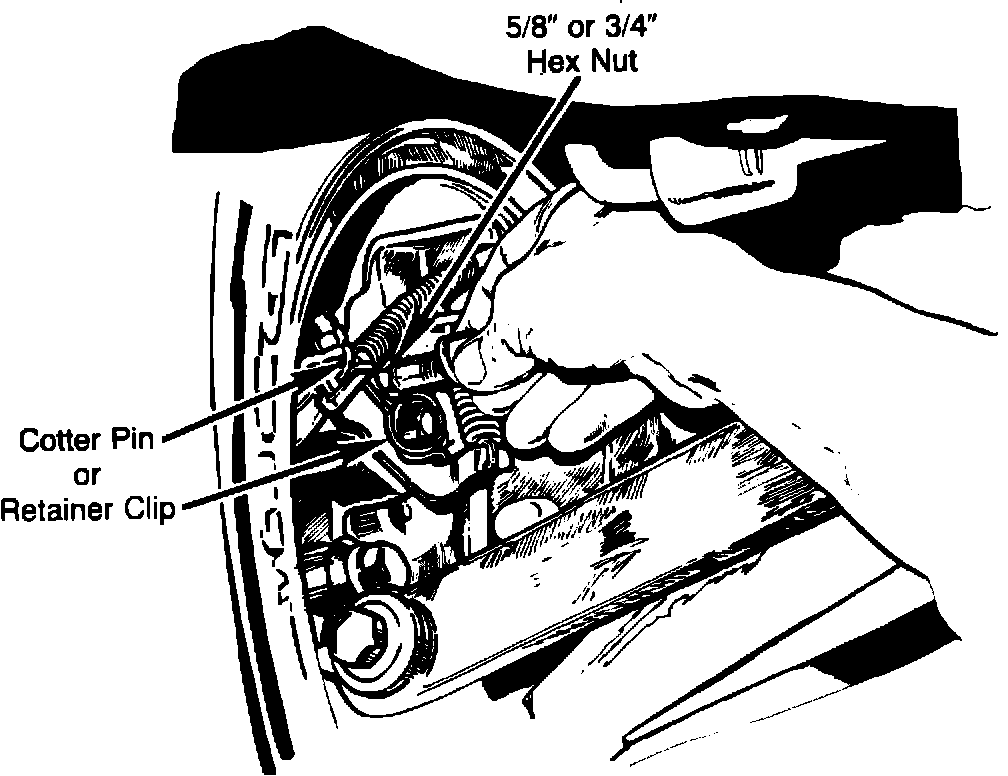

FIGURE 2 - LEFT HAND CALIPER:
4. Install park brake cable retainer (P/N 18016553) on left hand caliper lever and park brake cable. If lever has a cotter pin installed, do not install retainer (see Figure 2).
5. To insure proper adjustment, the caliper levers must not move. To insure caliper levers do not move, perform the following:
A. Block left hand lever with either a 5/8" or 3/4" hex nut (see Figure 2). Use nut that fits tightest.

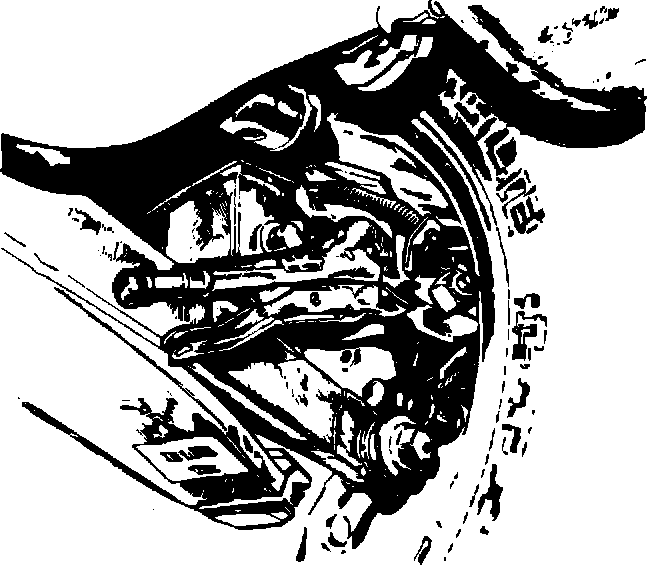

FIGURE 3 - RIGHT HAND CALIPER:
B. Clamp right hand lever as shown in Figure 3.

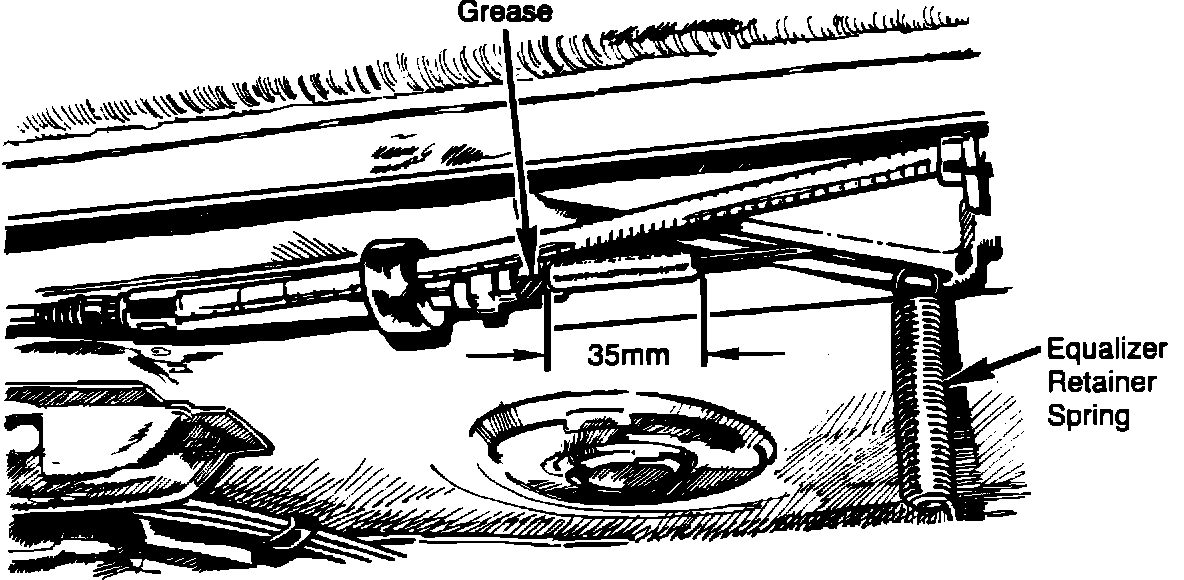

FIGURE 4 - EQUALIZER:
6. Disconnect equalizer retainer spring (see Figure 4).
NOTICE: Before proceeding, apply lubricant between nut face and equalizer surface to prevent galling of these surfaces (see Figure 4).
7. Hold cable firmly with locking pliers and rotate adjustment nut to obtain a 35 mm (1-3/8") measurement from nut face to swaged end of adjuster rod (see Figure 4).
8. Release clamp on right hand lever only. Also, make sure left hand lever is in fully released position (pulled back against caliper stop).

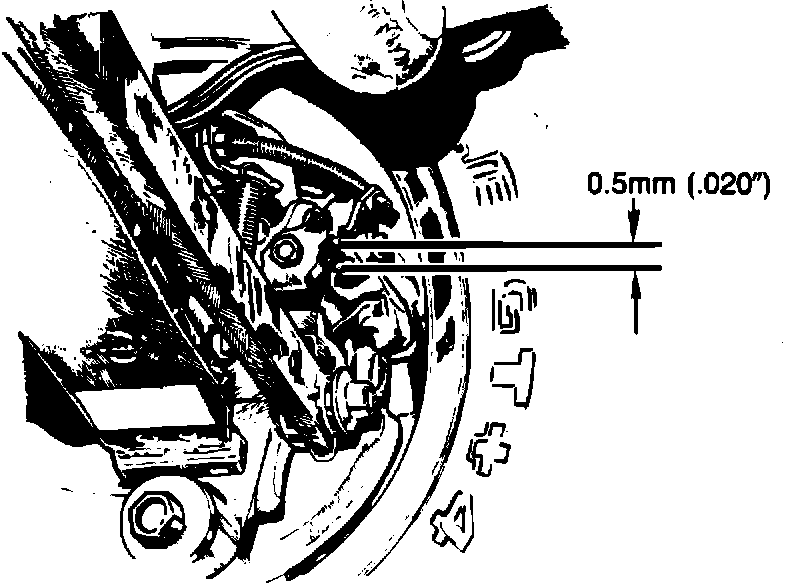

FIGURE 5 - GAP AT RIGHT HAND CALIPER:
SERVICE PROCEDURE
9. Reverse rotation of equalizer nut until a measured gap of 0.5 mm (.020") is obtained between right hand lever and caliper stop (see Figure 5).
10. Remove hex nut from left hand caliper lever.
11. Reconnect equalizer retainer spring.
12. Release park brake release handle.
13. Install Campaign Identification label.
CAMPAIGN IDENTIFICATION LABEL
Each vehicle corrected in accordance with the instructions outlined in this Product Campaign Bulletin will require a "Campaign Identification Label." Each label provides a space to include the campaign number, the five (5) digit dealer code of the dealer performing the campaign service and the date the vehicle was campaigned. This information may be inserted with a typewriter or a ball point pen. Install the label only on a clean, dry surface of the radiator baffle where it is readily visible (additional campaign labels are available on stationary order as Form 7901-709).
