Parts, Service Procedure, Campaign Label, Claim & Recording Information
PARTS INFORMATIONParts required to comlete this campaign are to be obtained from General Motors Service Parts Operation (GMSPO). To ensure that these parts are obtained as soon as possible, they should be ordered on a C.I.O. order with no special instruction code, but on advise code (2).
Description Part Number Quantity Per Vehicle
Clip - Bell Crank 25089331 1

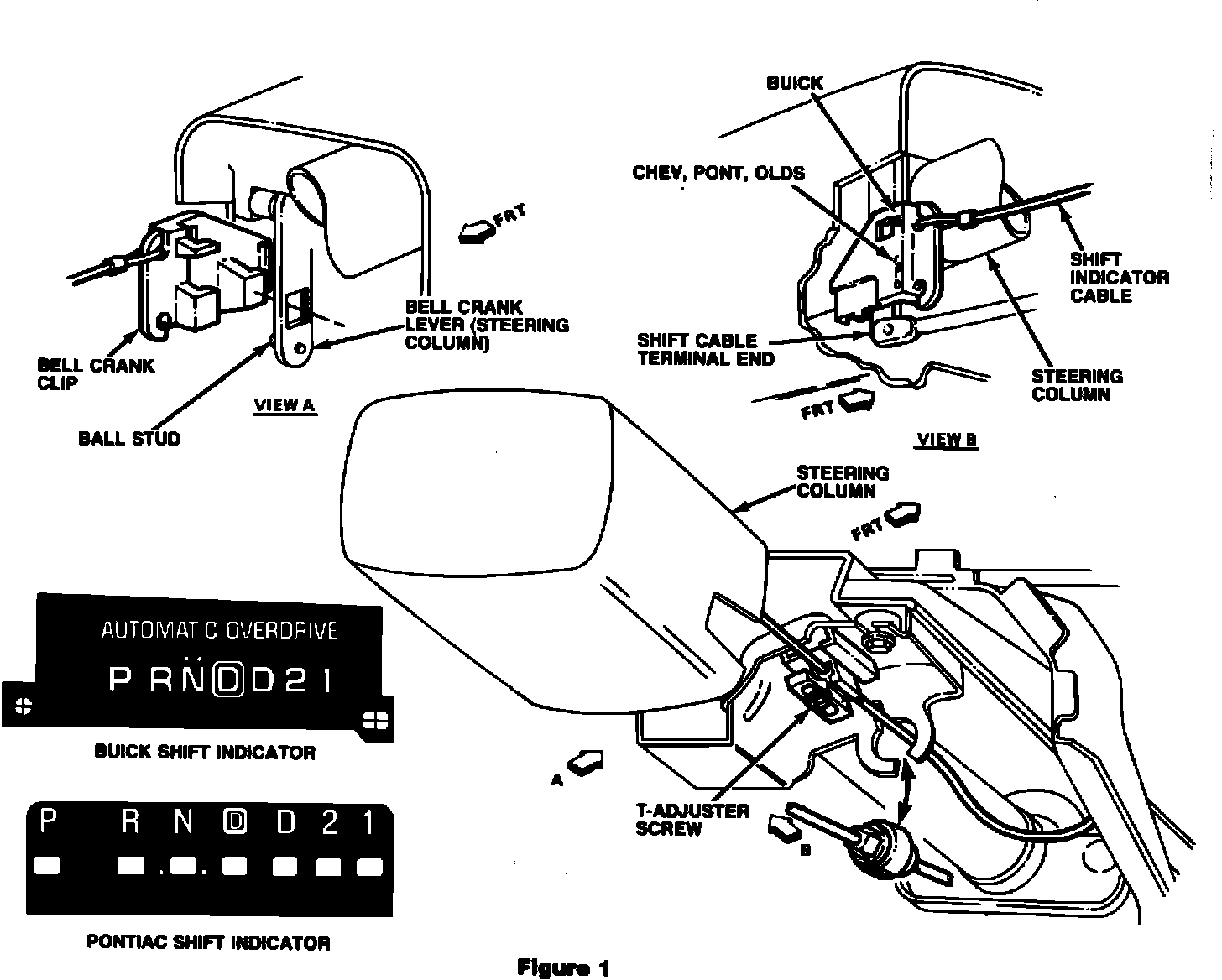

FIGURE 1:
SERVICE PROCEDURE
Bellcrank Clip Replacement
1. Place shift lever in "Park", disconnect negative battery cable and remove lower dash panel.
2. Remove shift cable from steering column ball stud.
3. Remove bellcrank clip (with shift indicator cable still attached) from bellcrank hole.
4. Disconnect shift indicator cable from removed bellcrank clip and reconnect it to new clip (P/N 25089331) being careful to use correct hook (See Figure 1, View B).
5. Install (snap) new bellcrank clip in bellcrank hole. While pushing clip into hole it way be helpful to apply a simultaneous side load.
6. Reinstall shift cable on steering column ball stud.
7. Set parking brake, place shift lever in "Neutral" and check alignment of shift (PRNDL) indicator. Both alignment dots below the "N" should be colored orange. If adjustment is necessary, loosen T-adjuster fore or aft until proper alignment exists. Hand tighten screw and place shifter in "Park".
8. Reinstall lower dash panel and reconnect negative battery cable.
9. Install Campaign Identification Label.
CAMPAIGN IDENTIFICATION LABEL
Each vehicle modified in accordance with the instructions outlined in this Product Campaign Bulletin will require a "Campaign Identification Label". Each label provides a space to include the campaign number, the five (5) digit dealer code of the dealer performing the campaign service, and the date the vehicle was campaigned. This information may be inserted with a typewriter or a ball point pen. Install the label only on a clean, dry surface of the radiator baffle where it is readily visible. (Additional campaign labels are available on stationery order as Form 7901-709).
CLAIM INFORMATION
A separate repair order must be used for each vehicle. A completed warranty claim is to be kept as a permanent record of completion.
DEALERS SHOULD SUBMIT WARRANTY CLAIMS FOR CREDIT IN THEIR NORMAL MANNER WHEN THEY PERFORM THE SERVICE AS FOLLOWS:
Other *
Failure Labor Labor Labor
Operation Code Operation Hours Hours
Replace Bellcrank
Clip 96 V4620 0.3
0.1
* In addition dealerships will receive 0.1 hours credit for dealer administrative services associated with this campaign. The 0.1 hours allowance is to be entered in the "Other Labor Hours" field with each campaign repair listed for credit. This entry will not require authorization.
FAILURE CODE 96 MUST BE USED WITH THE LABOR OPERATION.
Parts required are to be listed in your warranty claim in the normal manner. Parts will be credited at dealer net plus 30% dealer handling allowance.
Dealers will be credited via warranty Document or Terminal Transmission, whichever is their normal method of submission for payment. Claim must contain all information required and should list the labor operation as outlined.
RECORDING COMPLETION
Repairs submitted for vehicles not involved in the campaign will not be paid.
Campaign completion will be recorded from "PROPERLY COMPLETED AND PAID WARRANTY CLAIMS". Owners are being asked to present the owner reply card for identification to their dealer at the time they bring in their vehicle to have the campaign performed.
