Brakes - Manual Updates, ABS Service Procedures
>>
Power Master III Exploded View
Power Master III Exploded View

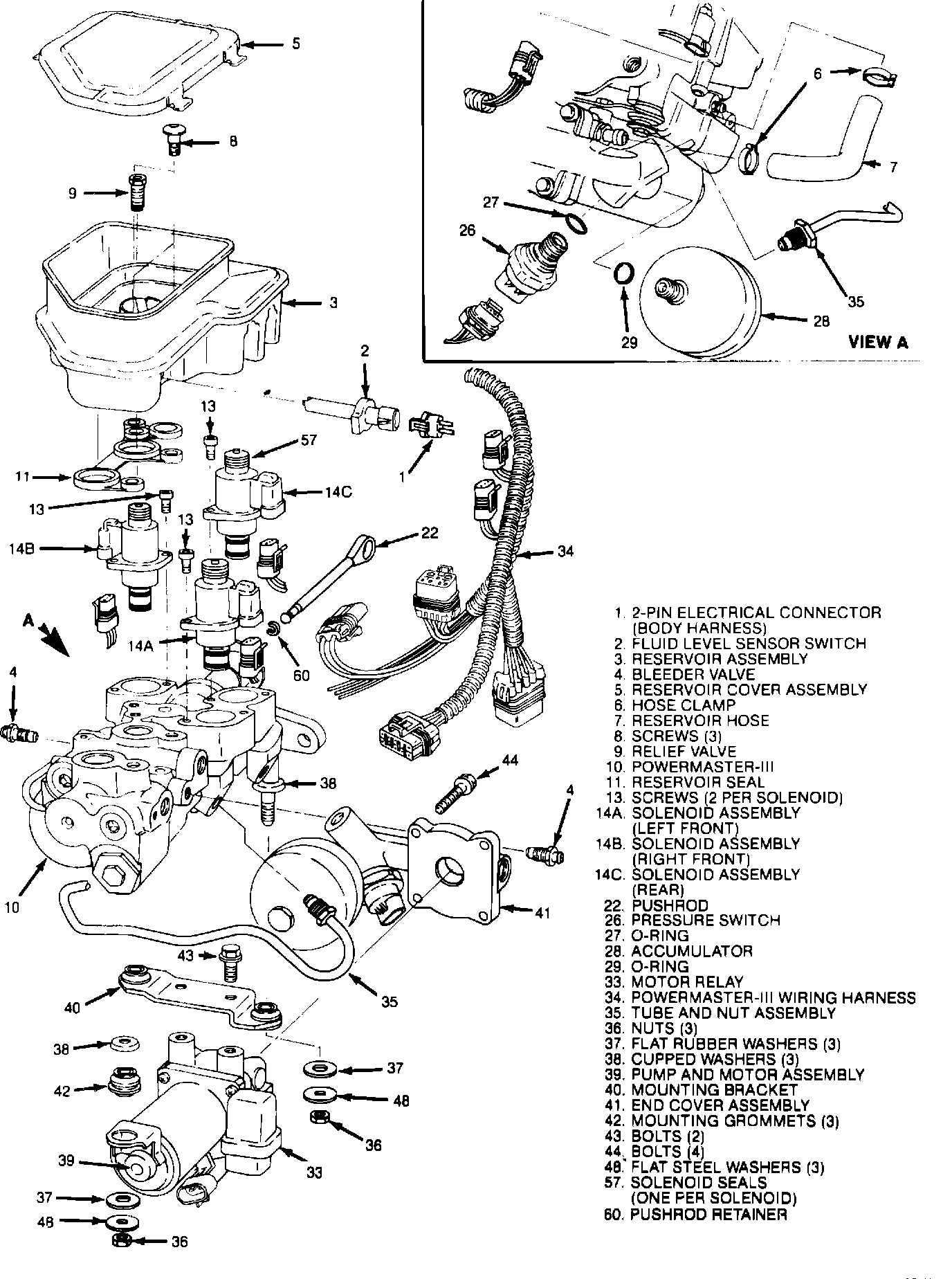

Figure 1 - Powermaster III:

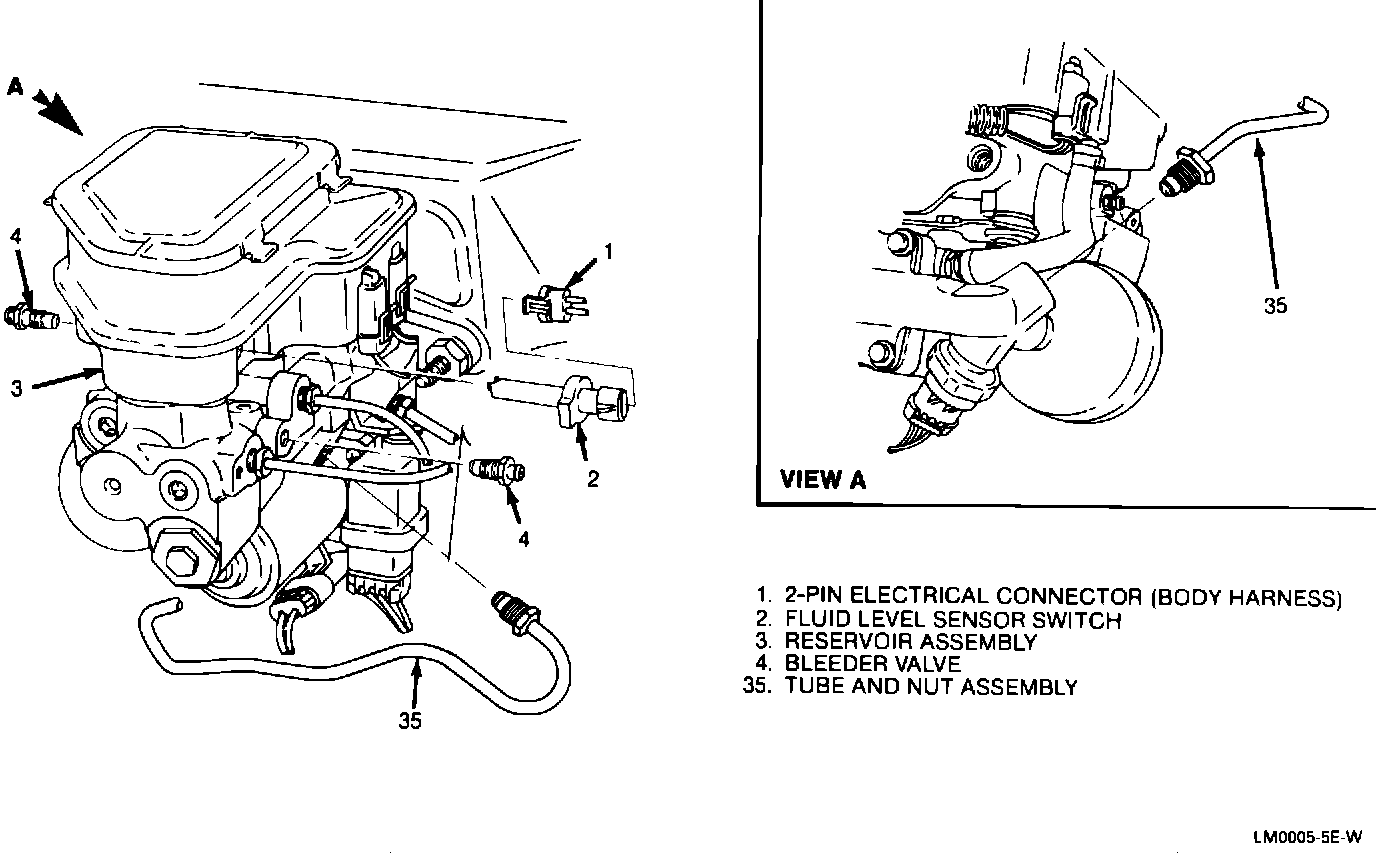

Figure 2 - Powermaster III Components:

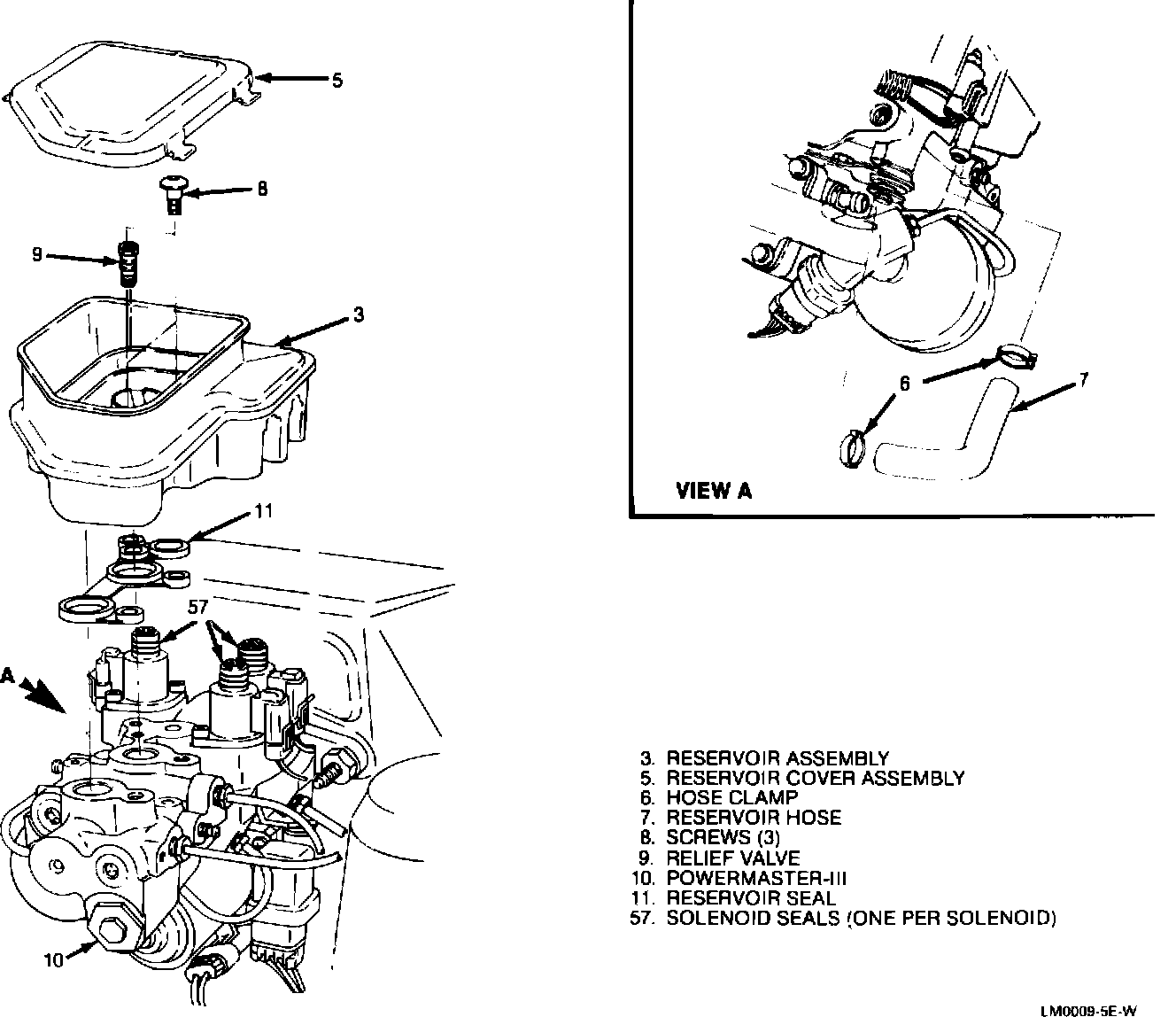

Figure 3 - Reservoir Cover, Hose and Reservoir Assembly:
