Front Wheel Speed Sensor Jumper Harness

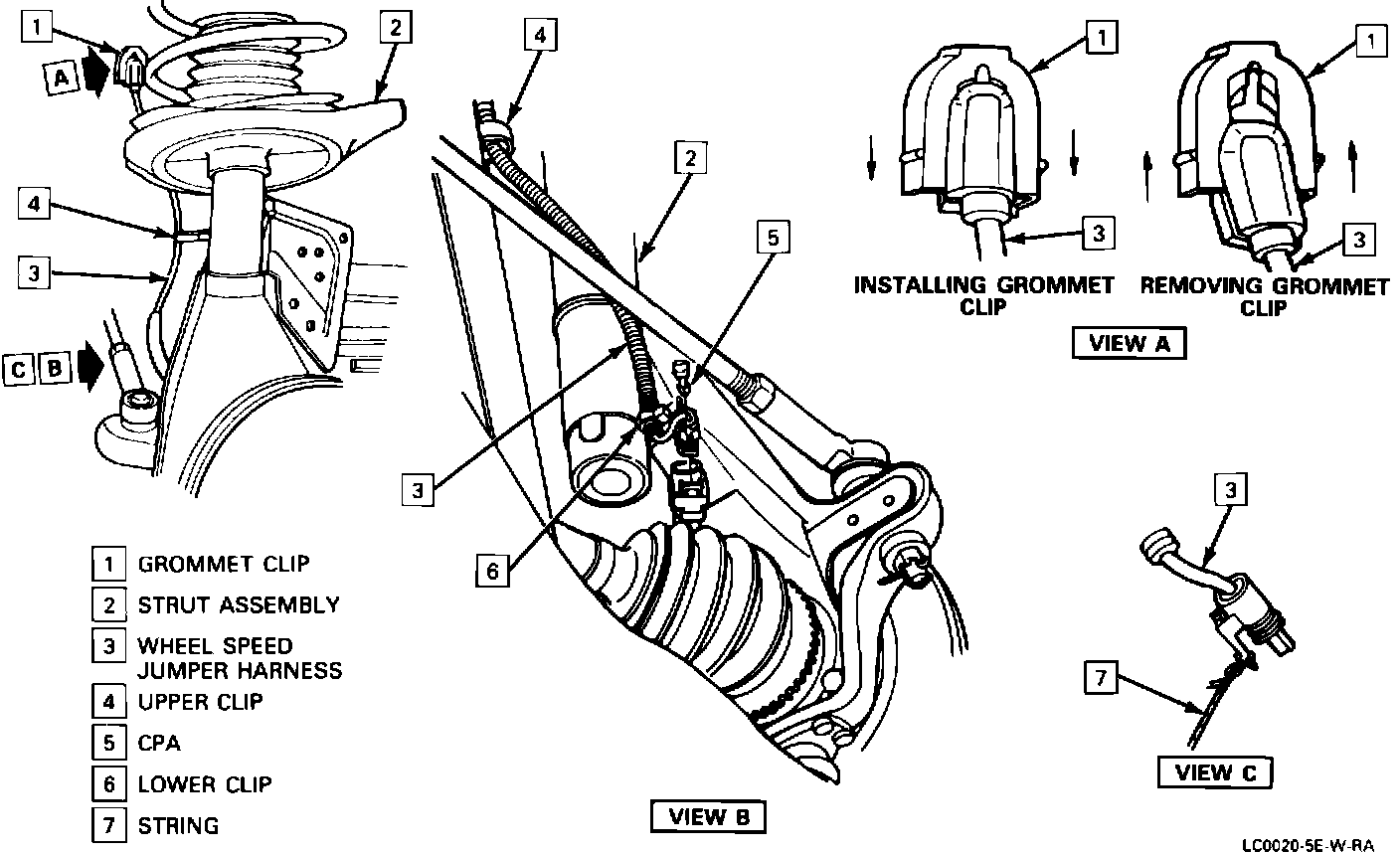

Figure 6 - Front Wheel Speed Sensor Jumper Harness (Right):

Important

^ The wiring in the front wheel speed sensor jumper harness cannot be repaired. If damaged, the entirejumper harness must be replaced.
Right Front

Figure 6

Remove or Disconnect

1. Raise vehicle and suitably support, refer to GENERAL INFORMATION (SECTION 0A).

2. Jumper harness at wheel speed sensor, by removing connector position assurance (CPA) locking pin, open jumper harness retaining clip, removing grommet retainer, and push grommet through opening in strut tower.

3. Install wire/string to the sensor end of the jumper harness.
4. Lower vehicle
5. Fuse block shield
6. Jumper harness from main ABS harness and pull jumper through strut tower opening and into the engine compartment.
Install or Connect

1. Transfer wire/string to new jumper harness (sensor end)
2. Pull jumper harness by the attached wire/string through strut tower and connect to main ABS harness.
3. Fuse block shield
4. Raise vehicle and suitably support, refer to GENERAL INFORMATION (SECTION 0A).
5. Remove wire/string from sensor end of jumper harness, seat grommet, and install grommet retainer, close jumper harness retaining clip, connect jumper to sensor.
^ Make sure connector position assurance (CPA) locking pin is installed
6. Lower vehicle

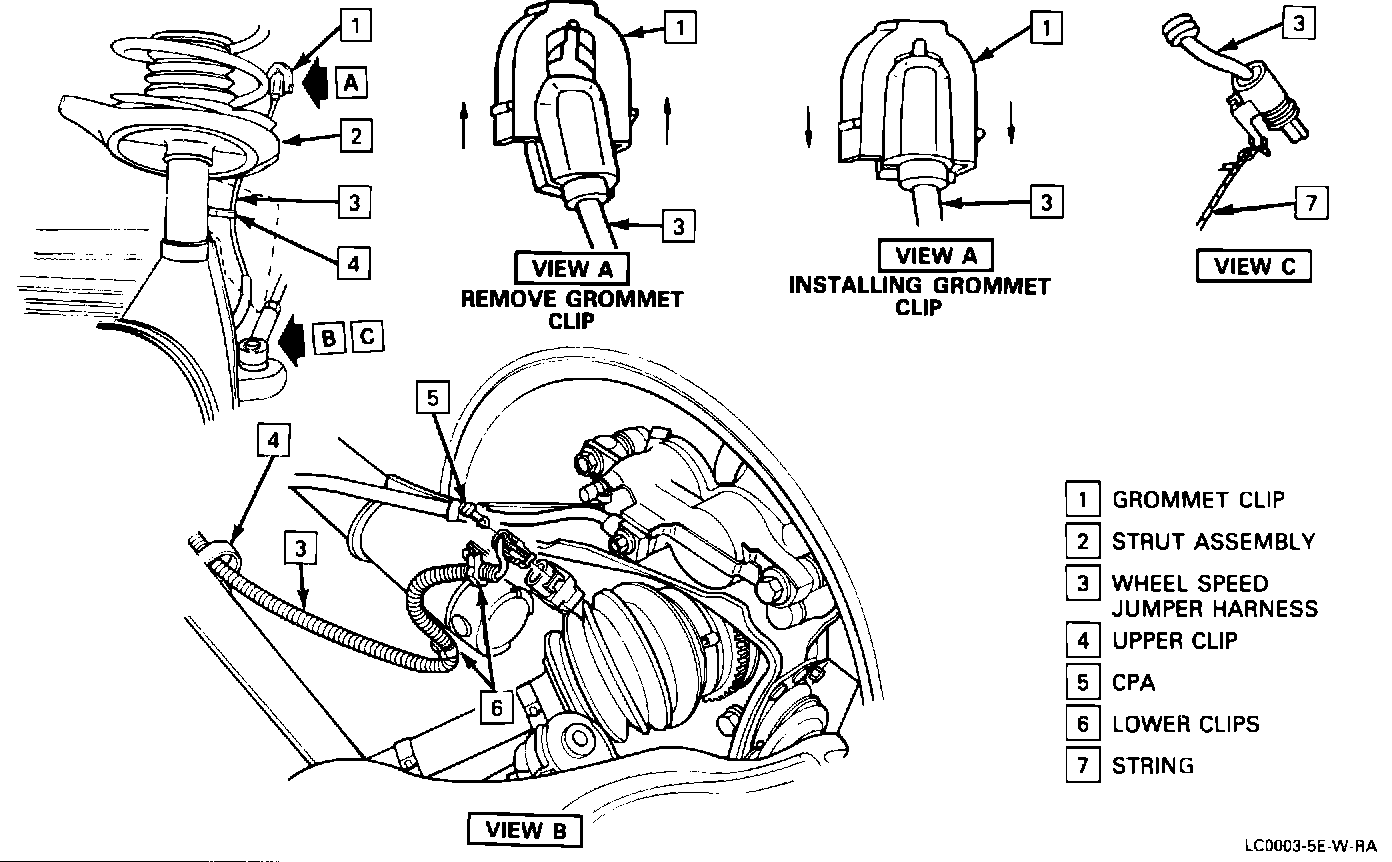

Figure 7 - Front Wheel Speed Sensor Jumper Harness (Left):

Left Front

Figure 7

Remove or Disconnect

1. Raise vehicle and suitably support, refer to GENERAL INFORMATION (SECTION 0A).
2. Jumper harness at wheel speed sensor by removing connector position assurance (CPA) locking pin, open jumper harness retaining clip, remove grommet retainer, and push grommet through opening in strut tower.
3. Install wire/string to the sensor end of the jumper harness.
4. Lower vehicle
5. Air cleaner assembly
6. Jumper harness from main ABS harness and pull jumper through strut tower opening and into the engine compartment.

Install or Connect

1. Transfer wire/string to new jumper harness (sensor end).
2. Pull jumper harness by the attached wire/string through strut tower and connect to main ABS harness.
3. Air cleaner assembly
4. Raise vehicle and suitably support, refer to GENERAL INFORMATION (SECTION 0A).
5. Remove wire/string from sensor end of jumper harness, seat grommet, and install grommet retainer close jumper harness retaining clip, connect jumper to sensor.

^ Make sure connector position assurance (CPA) locking pin is installed.
6. Lower vehicle
