Diode

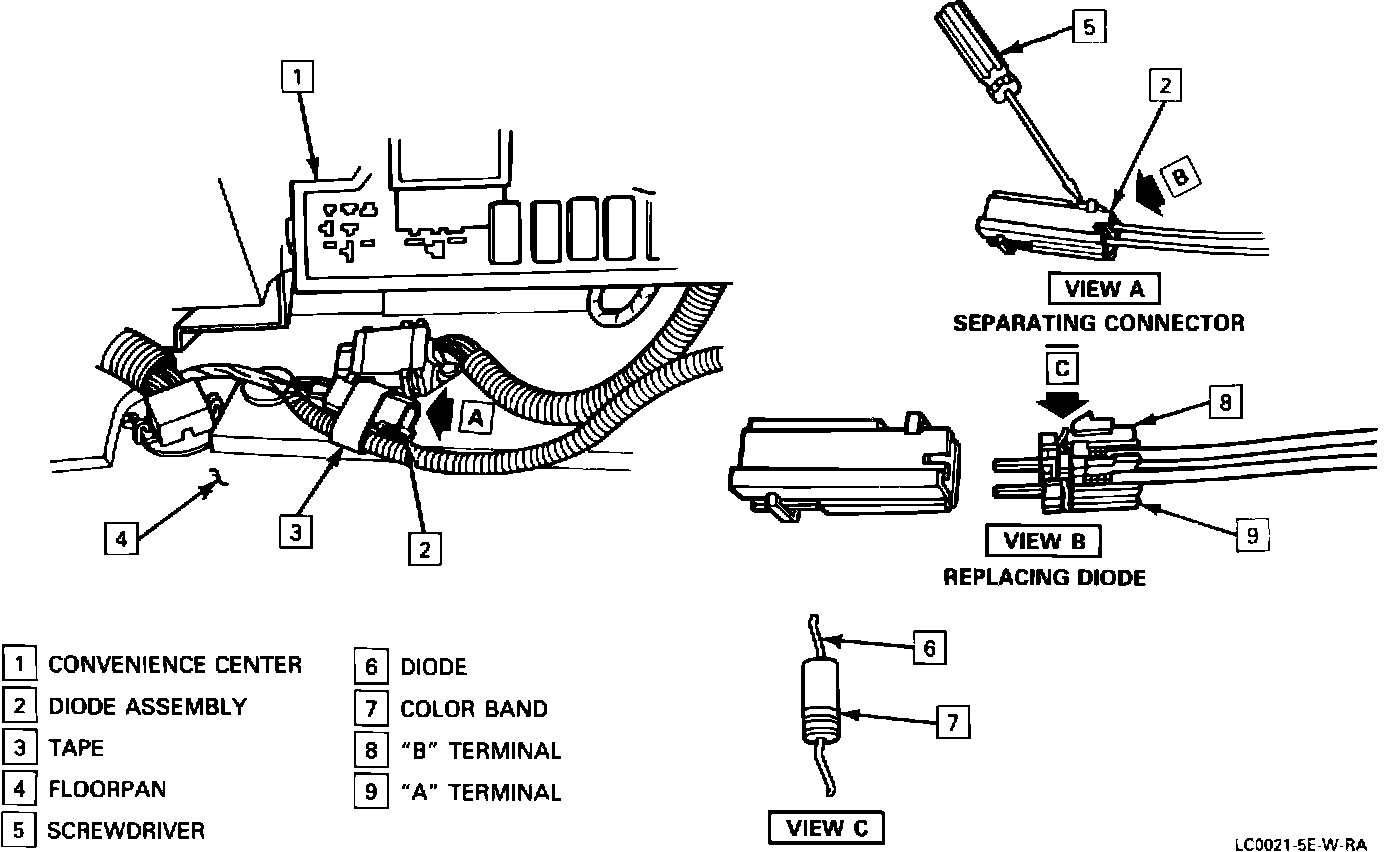

Figure 5 - Diode:

Figure 5

Remove or Disconnect

1. Turn ignition off
2. Pull back carpeting (passenger's side)
3. Tape from wiring harness
4. Disassemble connector
5. Diode

^ Note location of colored band on diode for proper installation.

Install or Connect

1. Diode, colored band facing proper direction, refer to Figure 5.

^ Position wire portion of diode between terminals

NOTICE: Do not push down or pry directly on the diode as damage to the diode will occur.

^ Using a small screwdriver, push gently down on wire portion of diode between terminals. Be sure the diode is firmly seated.
2. Assemble connector
3. Turn ignition on to make sure that ABS code A002 does not set.
4. Tape to wiring harness
5. Position carpeting
