Alignment - Front and Rear Specifications
88pontiac09Bulletin Number: 88-3-23
Reference Number: 833402R
Publish Date: 6/88
Subject: SERVICE MANUAL UPDATE - FRONT AND REAR WHEEL ALIGNMENT SPECIFICATIONS
Models
Affected: 1988 GRAND PRIX

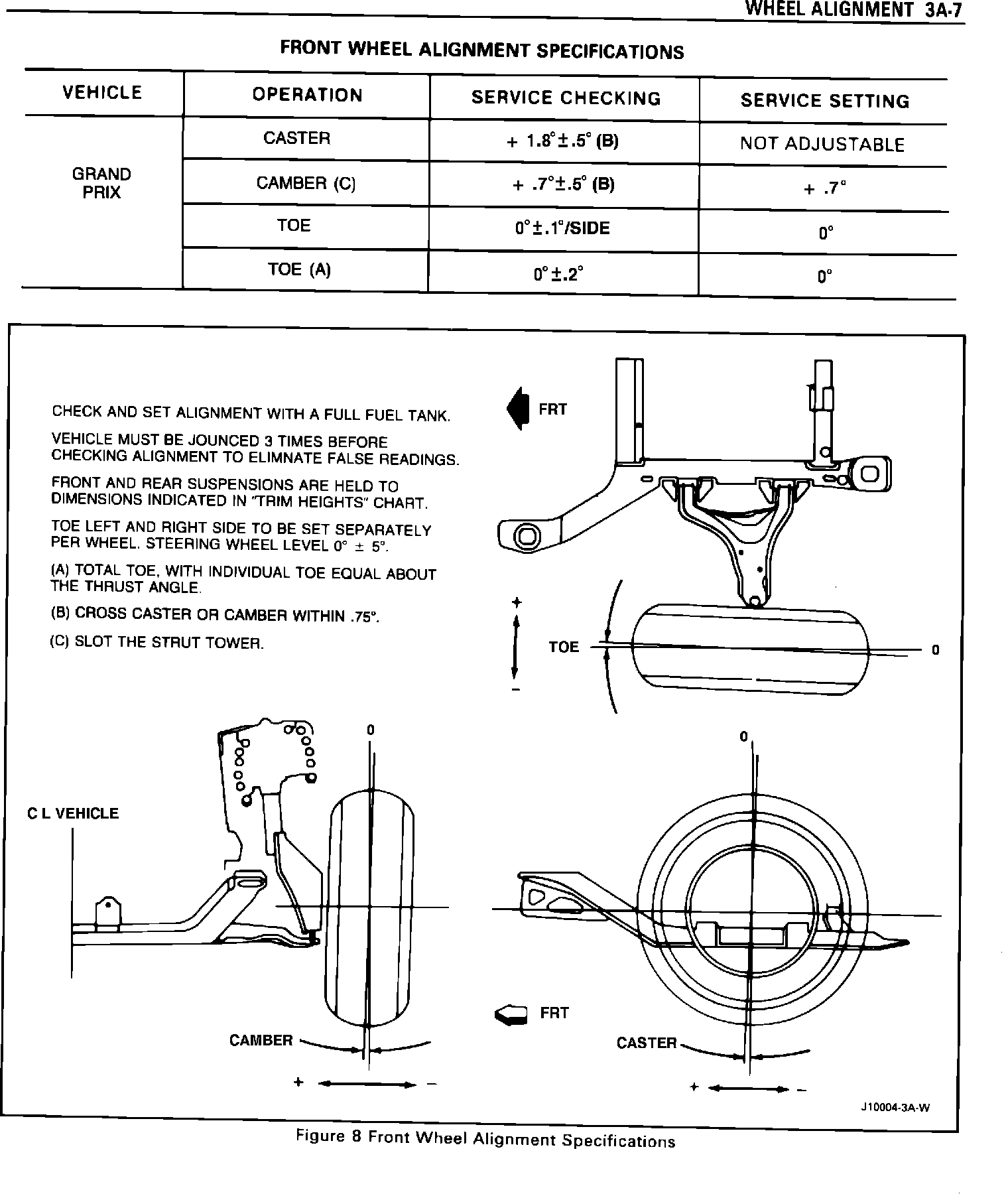

FIGURE 8 - FRONT WHEEL ALIGNMENT SPECIFICATIONS:

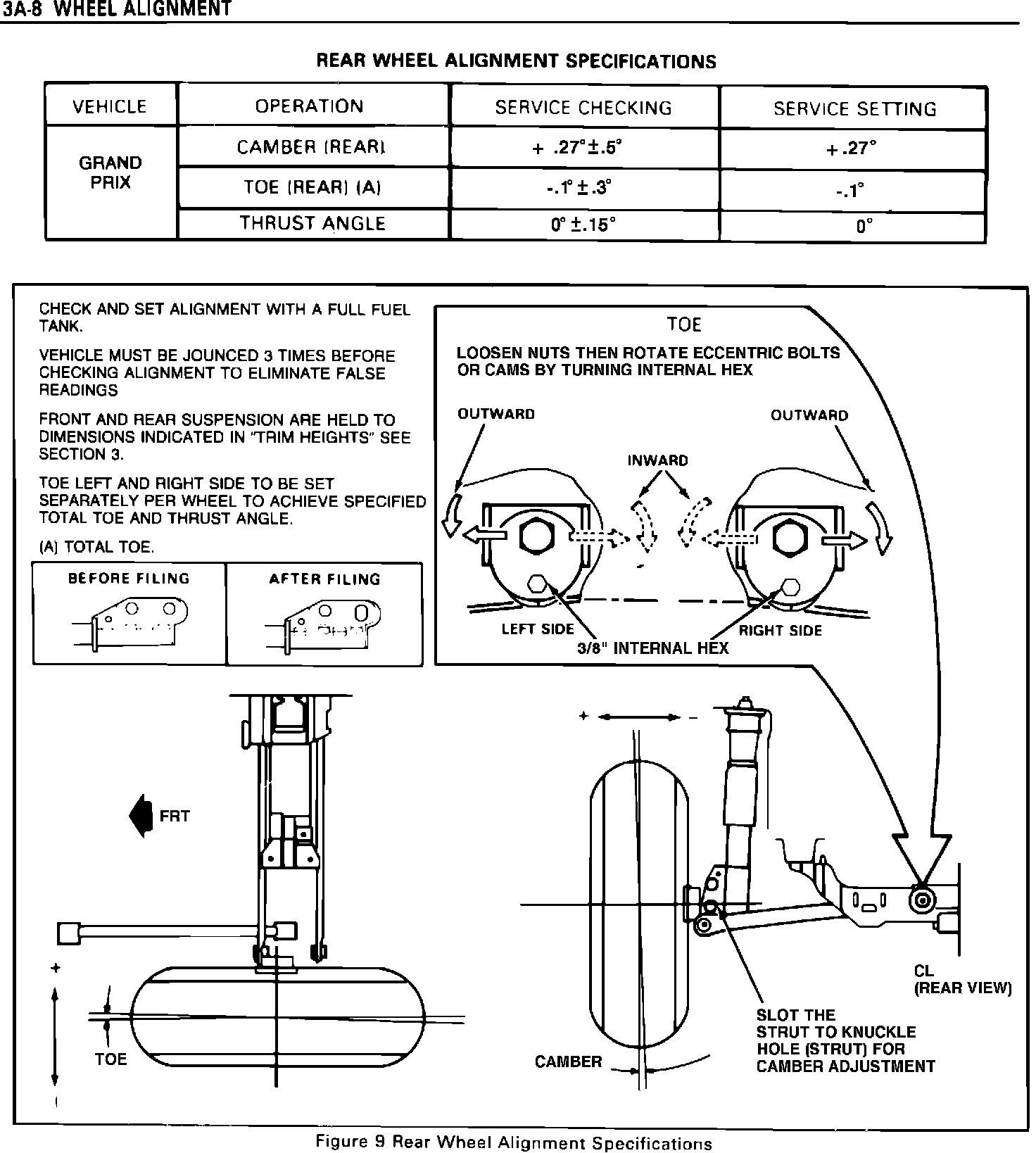

FIGURE 9 - REAR WHEEL ALIGNMENT SPECIFICATIONS:
SERVICE MANUAL UPDATE
The following pages (3A-7 and 3A-8) should replace the current pages in the 1988 Grand Prix Service Manual.
