A/T - Updated Filter and Seal
Bulletin Number: 88-7-3Reference Number: 877102
Publish Date: 10/87
Subject: NEW TRANSMISSION FLUID FILTER AND SEAL
Models
Affected: 1987-88 MODELS EQUIPPED WITH THM 200-4R (MW9)
BULLETIN COVERS:
New transmission fluid filter and seal..

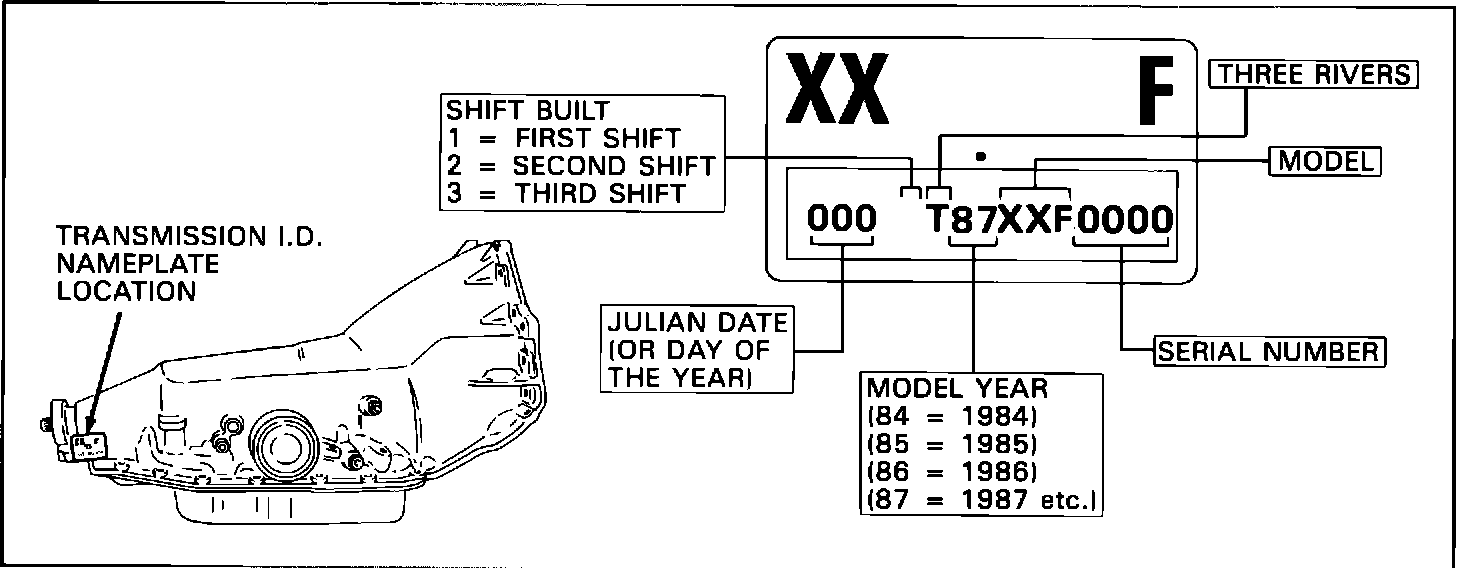

Figure 1 - THM 200-4R TRANSMISSION IDENTIFICATION INFORMATION:

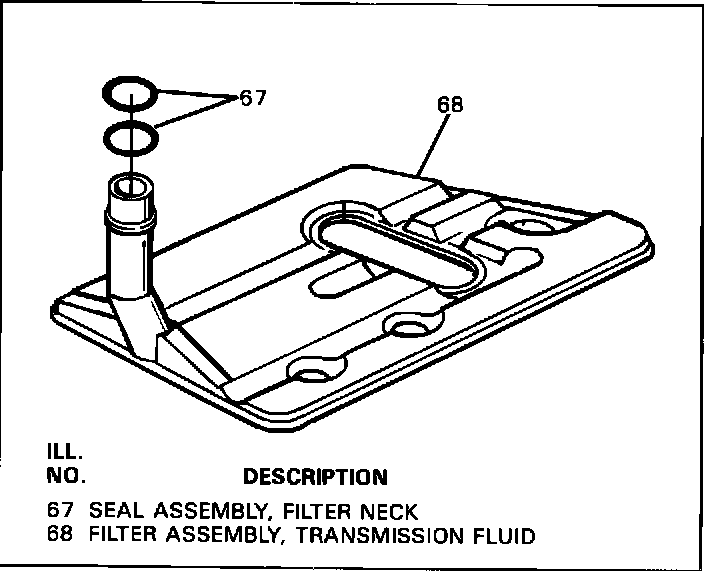

Figure 2 - Previous Design Filter And Seal Assembly:

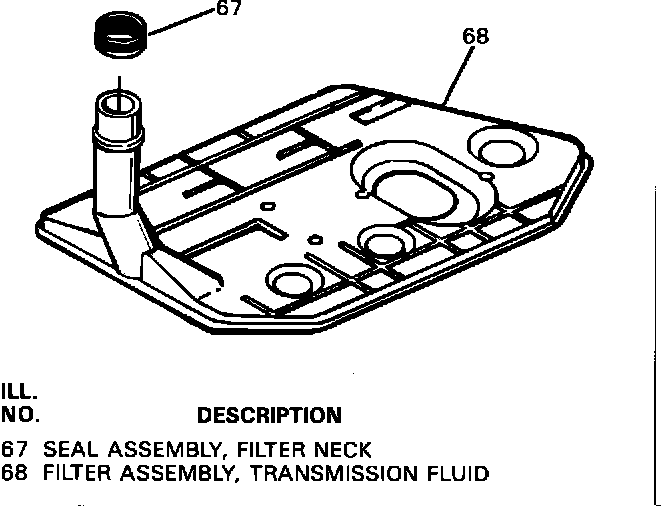

Figure 3 - New Design Filter And Seal Assembly:
DATE OF PRODUCTION CHANGE: (Figures 1, 2 and 3)
Refer to Figure 2 to identify previous design filter and seal. Refer to Figure 3 to identify new design filter and seal. June 15, 1987, (Julian date 166) new filter and previous seal in production for some 200-4R units.
August 28, 1987, (Julian date 240) new filter and new seal in production for all 200-4R units.
SERVICE PARTS INFORMATION:
The new design filter and seal are released to service all 1988 THM 200-4R transmissions: Package Number 8639958 (includes filter, seal and pan gasket).
When stock of the previous design filter and seal is depleted, the new design filter and seal will be made available to service 1987 and prior model years.
SERVICE MANUAL REFERENCE:
Refer to THM 200-4R (MW9) Automatic Transmission Unit Repair Table of Contents for fluid filter service information.
