Pontiac
>>
1988
>>
Grand Prix V6-173 2.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

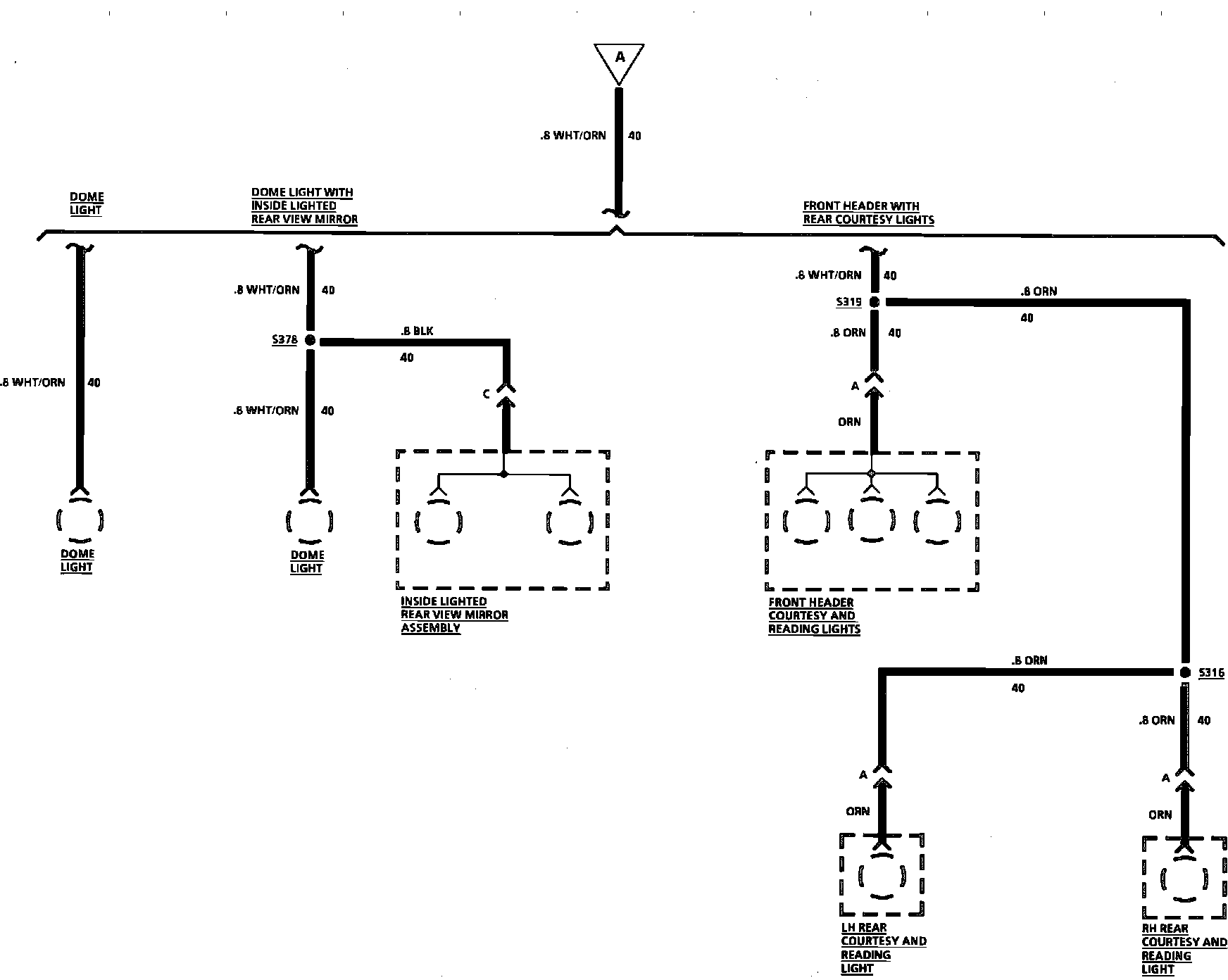

Fuse 14 Part 2 of 2
Fuse 14 Part 2 of 2
Fuse Block Details (Fuse 14):
