Home
>>
Pontiac
>>
1988
>>
Grand Prix V6-173 2.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Wiring Circuit
>>
Part 1 of 3
Part 1 of 3

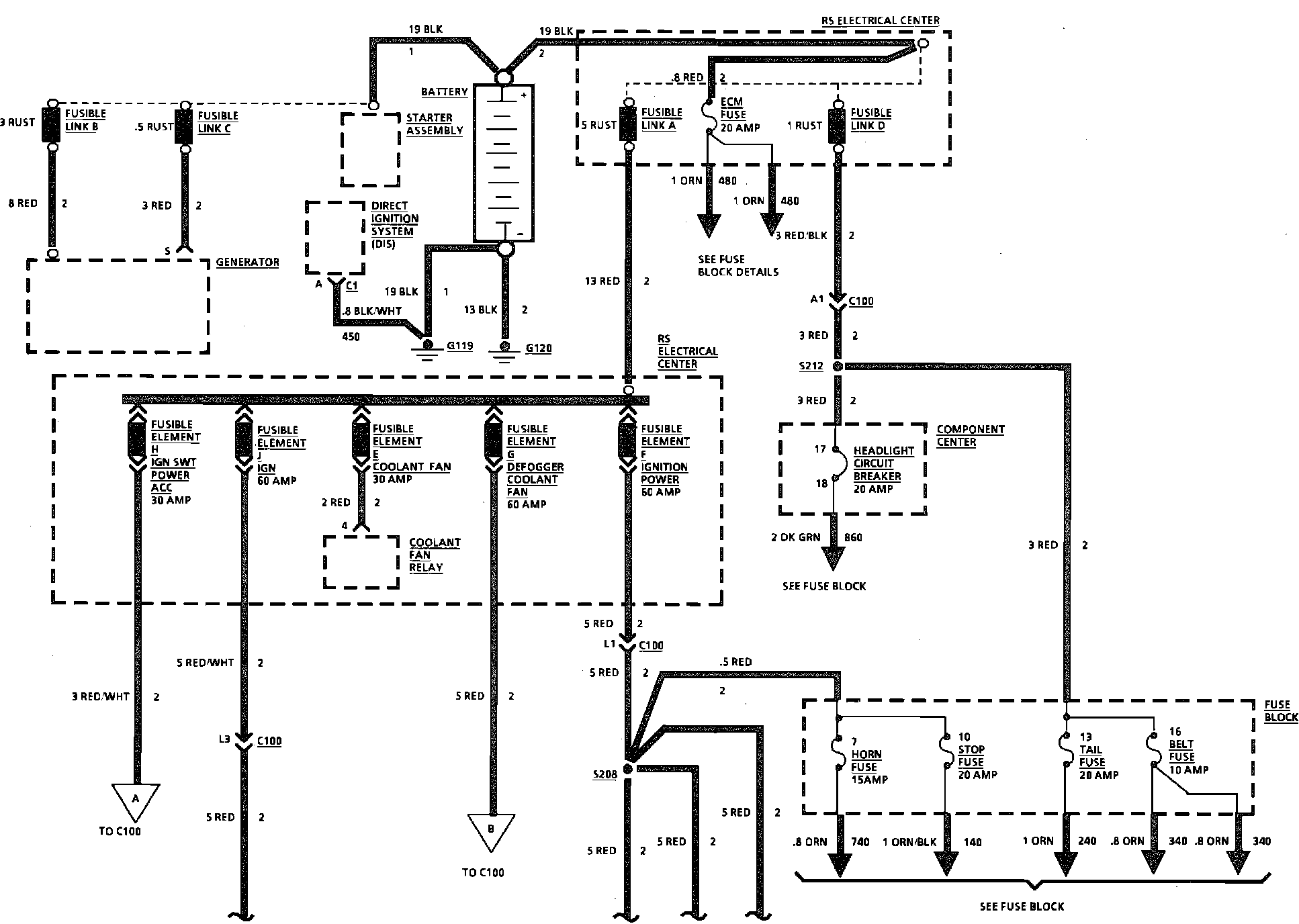

Power Distribution Distribution Wiring Cir (Part 1 Of 3):
Power Distribution Distribution Wiring Cir (Part 1 Of 3):
