Pontiac
>>
1988
>>
Grand Prix V6-173 2.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G111
G111

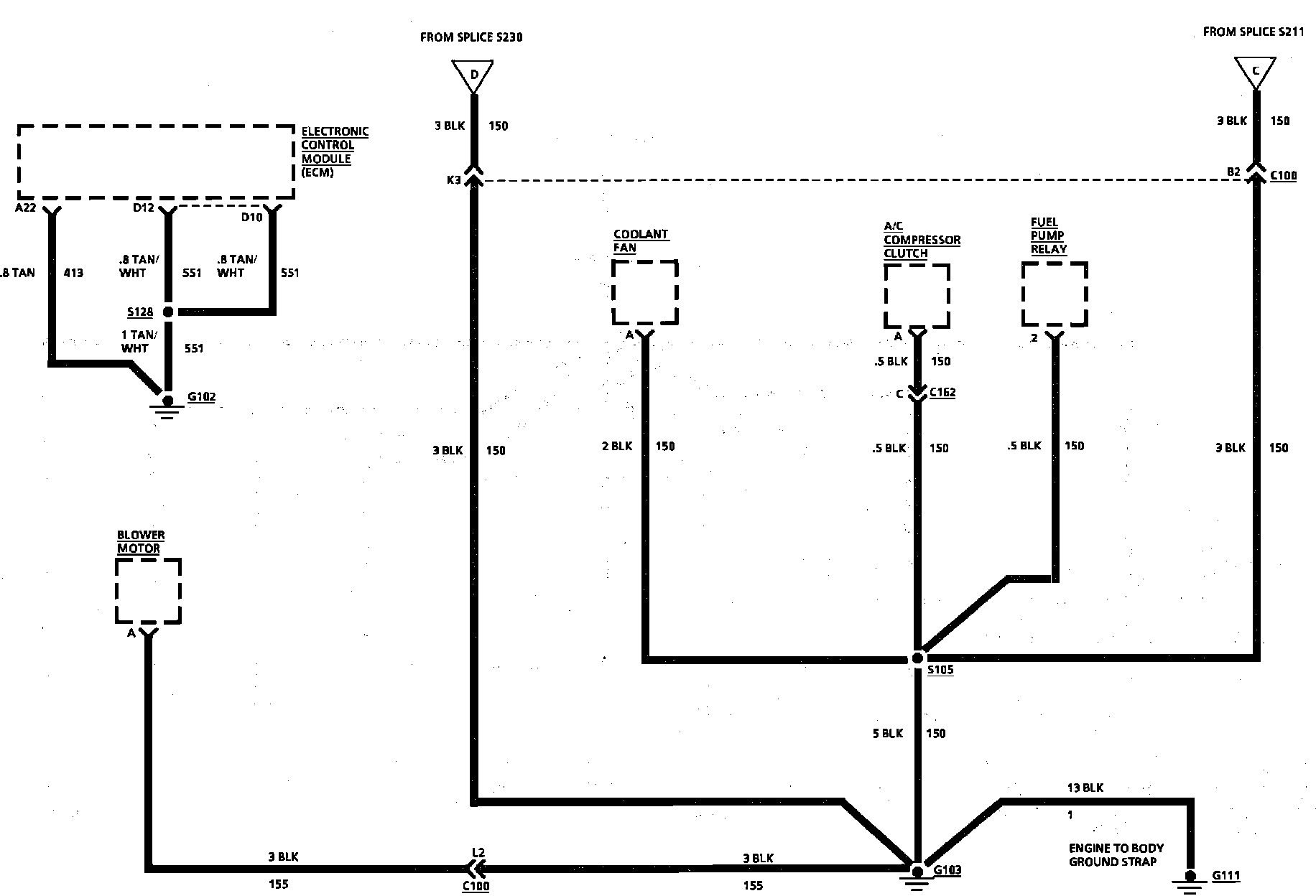

Ground Distribution (G102, G103 & G111):
