Water Pump: Service and Repair

Remove or Disconnect
1. Negative battery cable.
2. Engine coolant.
3. Serpentine belt.
4. Radiator and heater hose.
5. Pulley.

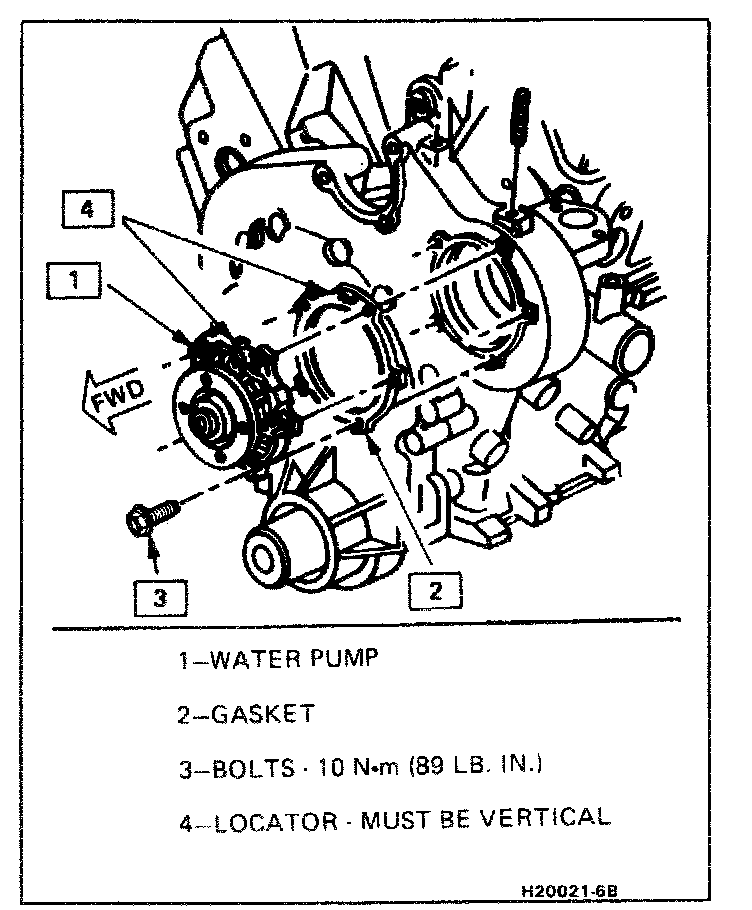

6. Water pump attaching bolts.
7. Water pump.
Clean
^ Water pump mating surfaces

Install or Connect
1. Water pump attaching bolts and torque bolts to 10 N.m (89 lb.in.).
2. Radiator and heater hose.
3. Serpentine belt.
4. Engine coolant.
5. Negative battery cable.
