Pontiac
>>
1988
>>
Grand Prix V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
System Diagram

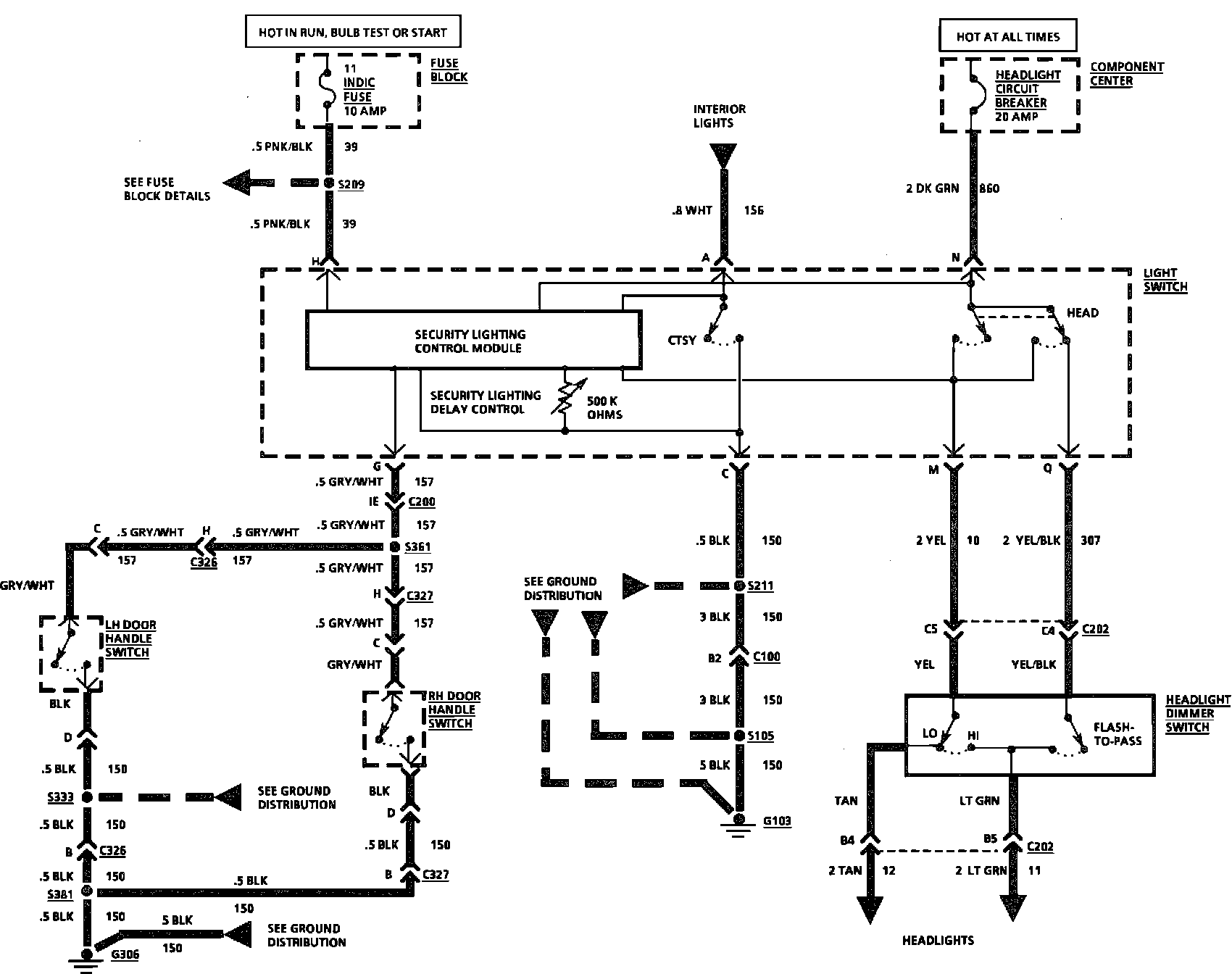

Illuminated Entry & Security Lighting Wiring Circuit:
