Pontiac
>>
1988
>>
Grand AM L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Power Distribution
>>
ECM Ignition, Fuel Pump & Turn Signal Fuse
ECM Ignition, Fuel Pump & Turn Signal Fuse

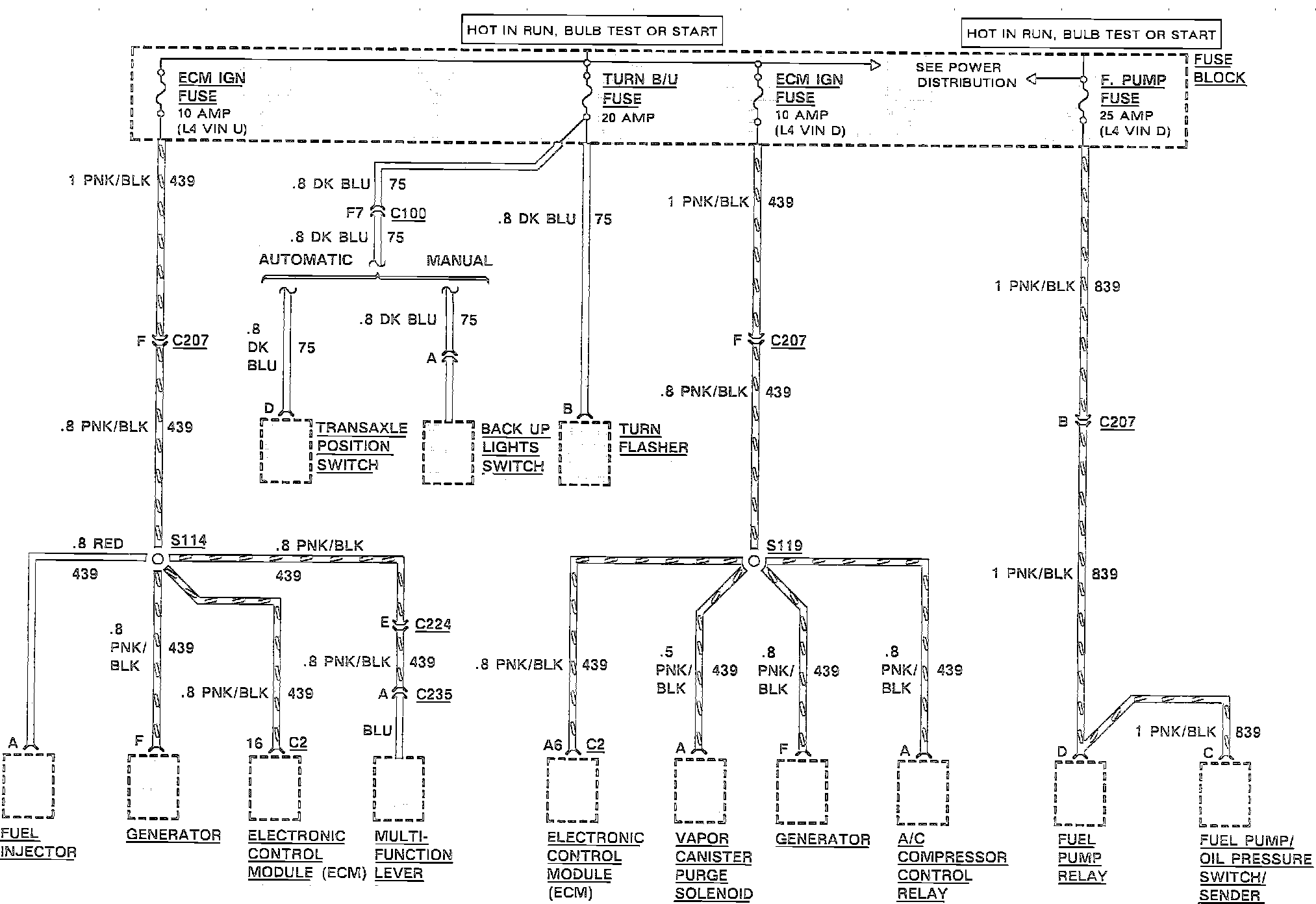

ECM Ignition, Fuel Pump & Turn Signal Fuses:
