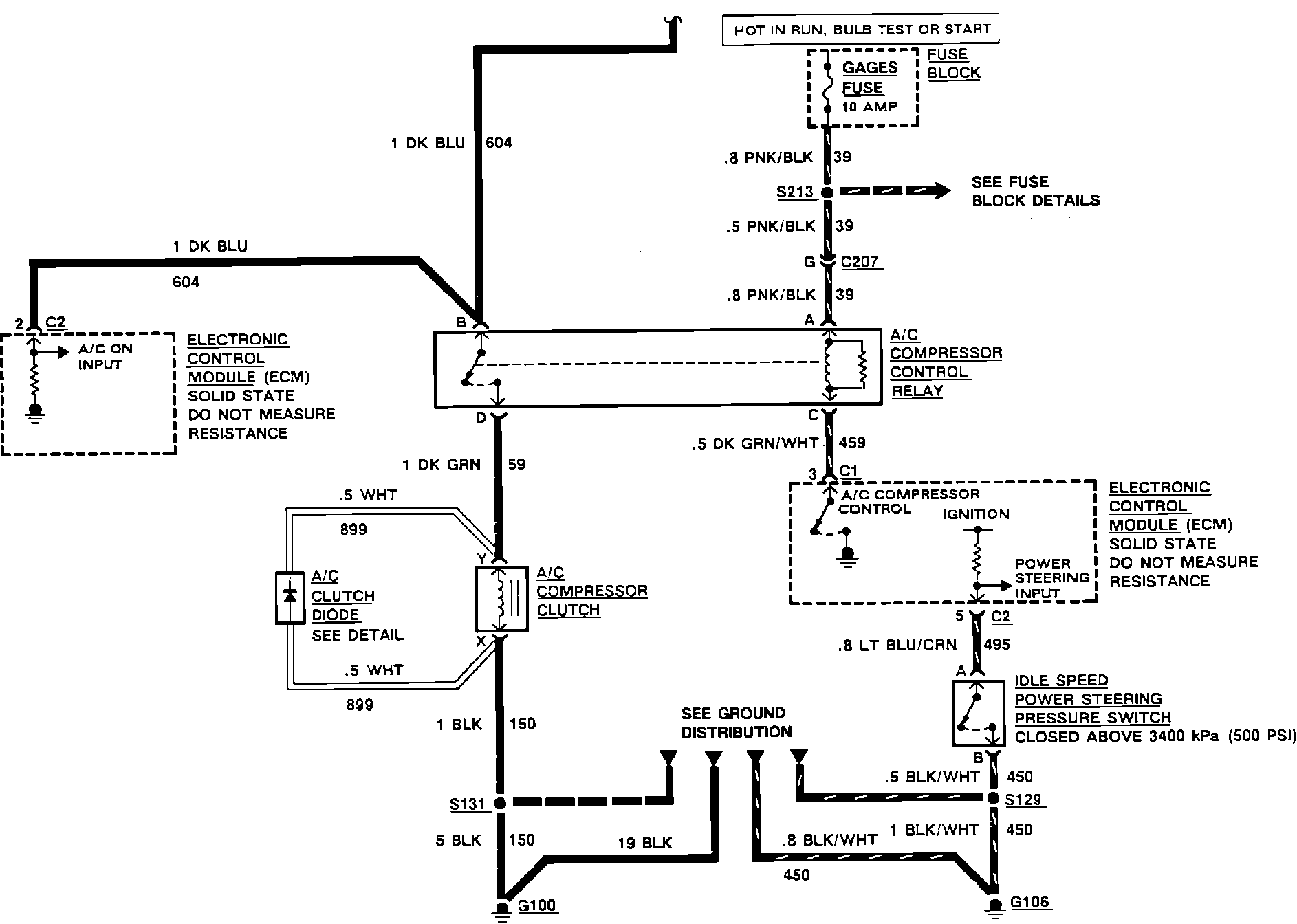

A/C Compressor Controls Wiring Circuit

A/C Compressor Controls Wiring Circuit:



A/C Compressor Controls Wiring Circuit:
