Home >> Pontiac >> 1988 >> Grand AM L4-121 2.0L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Power Steering Pump >> Diagrams

Power Steering Pump: Diagrams

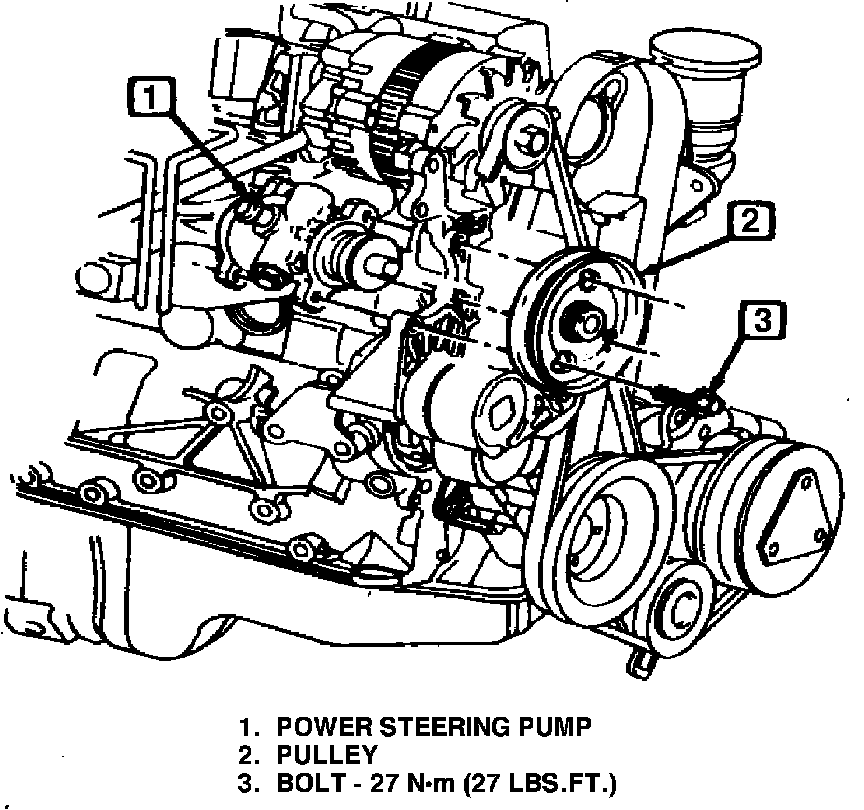

Fig. 1 Power steering pump replacement. 4-121 engine:
