Home >> Pontiac >> 1988 >> Grand AM L4-121 2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection >> Component Tests and General Diagnostics >> Test A: ECM Compressor Control Test >> Table 2

Table 2

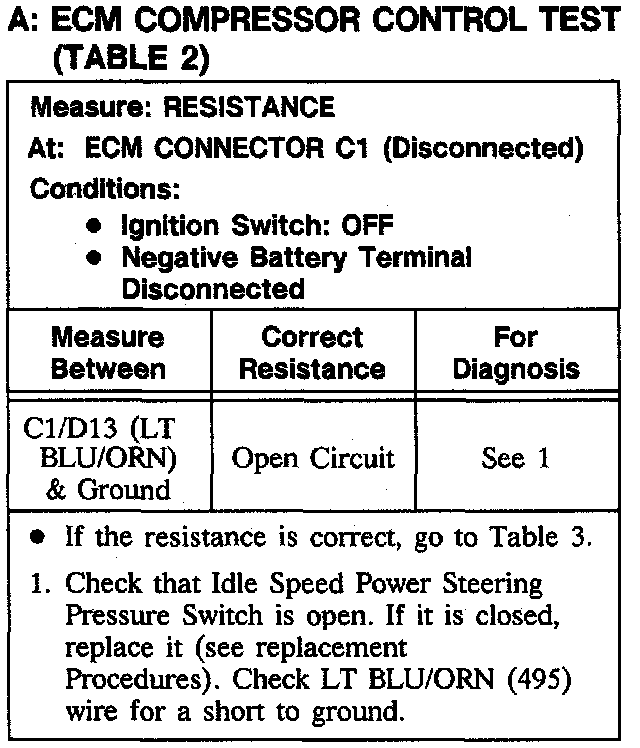

ECM Compressor Control Test Table 2:
