Diagnostic Connector - Fuel Pump: Locations

FUEL PUMP PRIME CONNECTOR

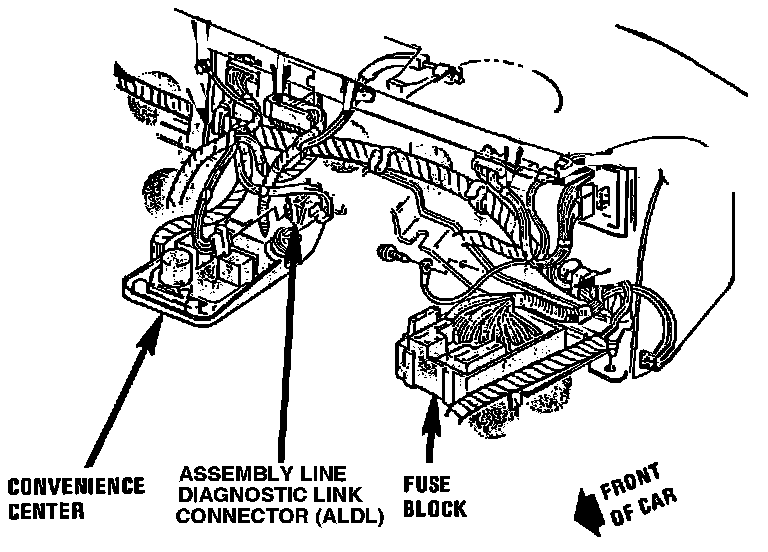

ALDL connector:

The Fuel Pump Prime Connector is located in the Assembly Line Diagnostic Link (ALDL) connector terminal "G". The ALDL is located under LH side of Instrument Panel (I/P), below Convenience Center.
