Fuel Rail: Service and Repair

1. Relieve fuel pressure. Refer to Fuel Pressure Relief Procedure.
2. Remove fuel rail.
3. Reverse procedure to install.

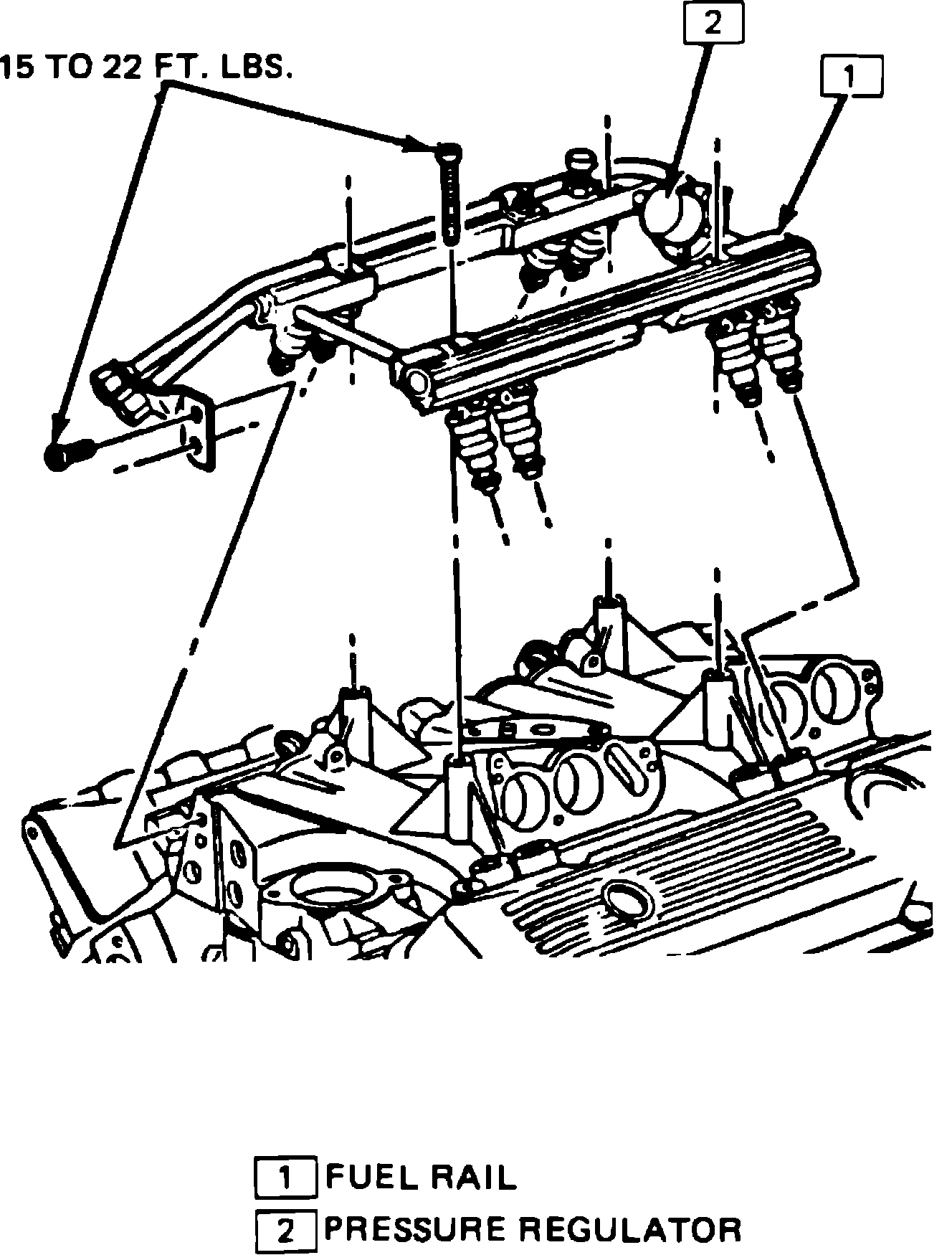

Fig. 352 Fuel rail removal. V8 engines:

To replace fuel rail refer to Fig. 352.
