Power Distribution Wiring Circuit
Power Distribution Wiring Circuit

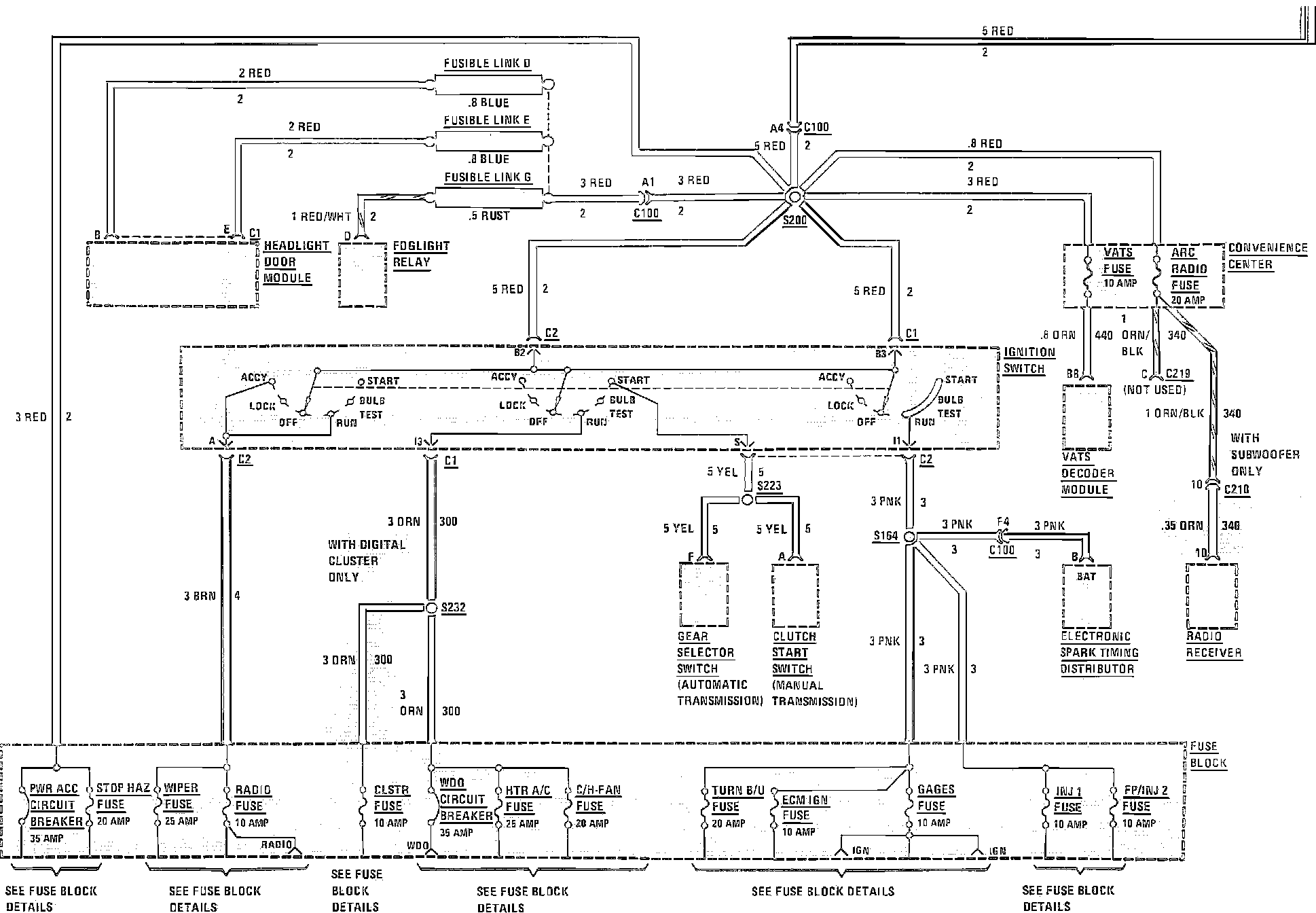

Power Distribution Wiring Circuit (VIN F):

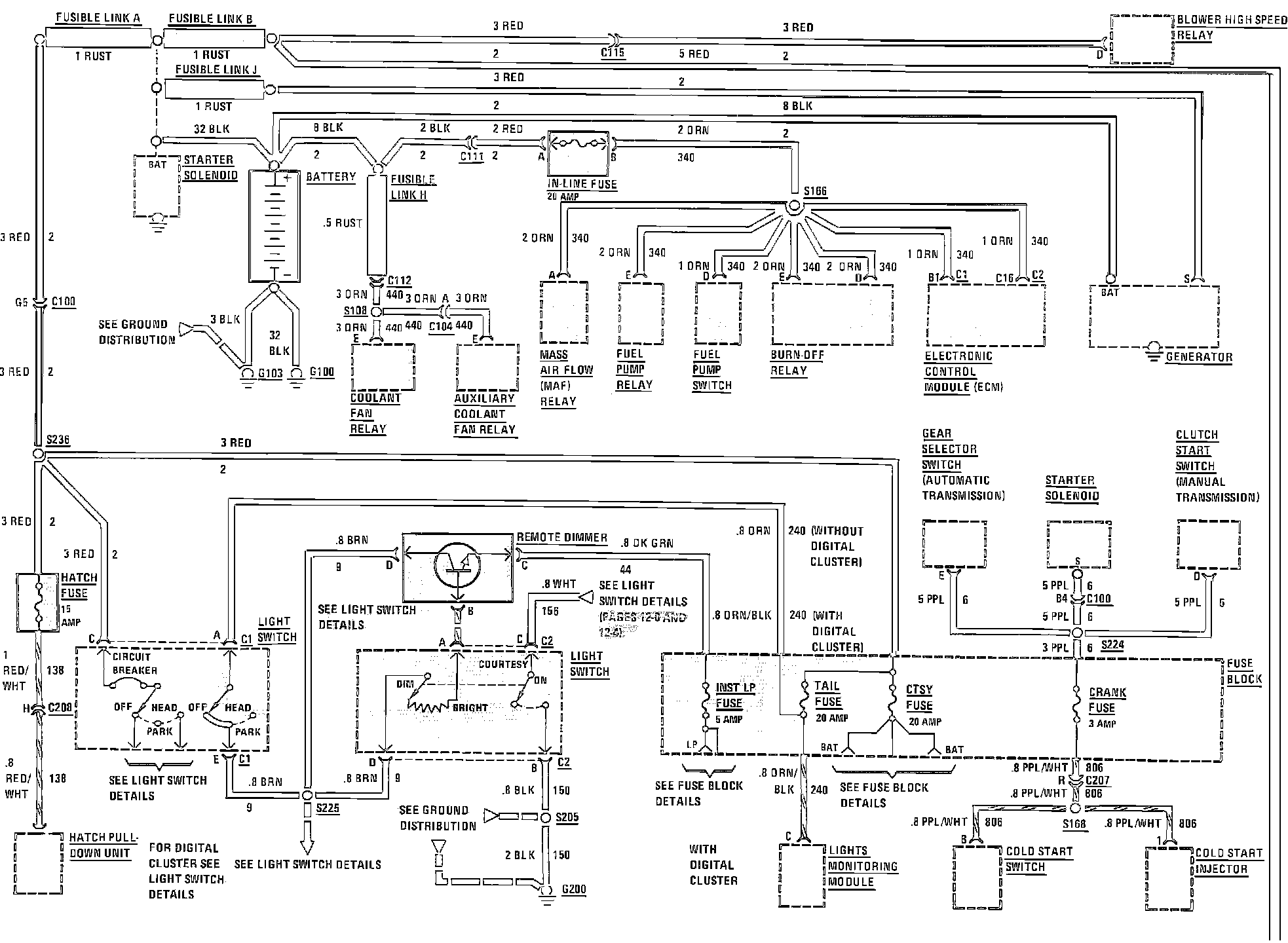

Power Distribution Wiring Circuit (VIN F):
