Pontiac
>>
1988
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G112
G112

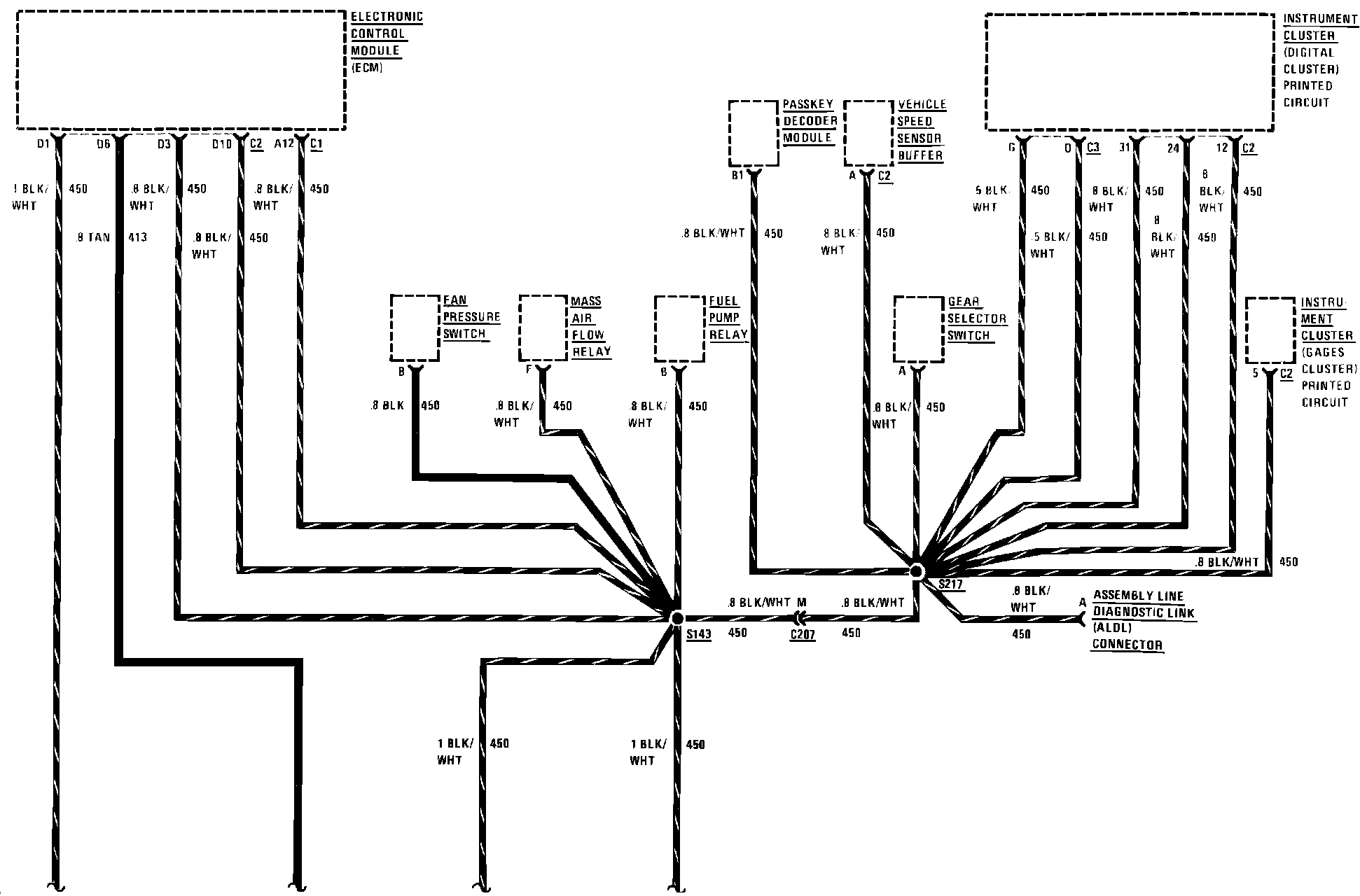

G112 & G118, VIN F:
G112 & G118, VIN F:
