Window Circuit Breaker
Window Circuit Breaker

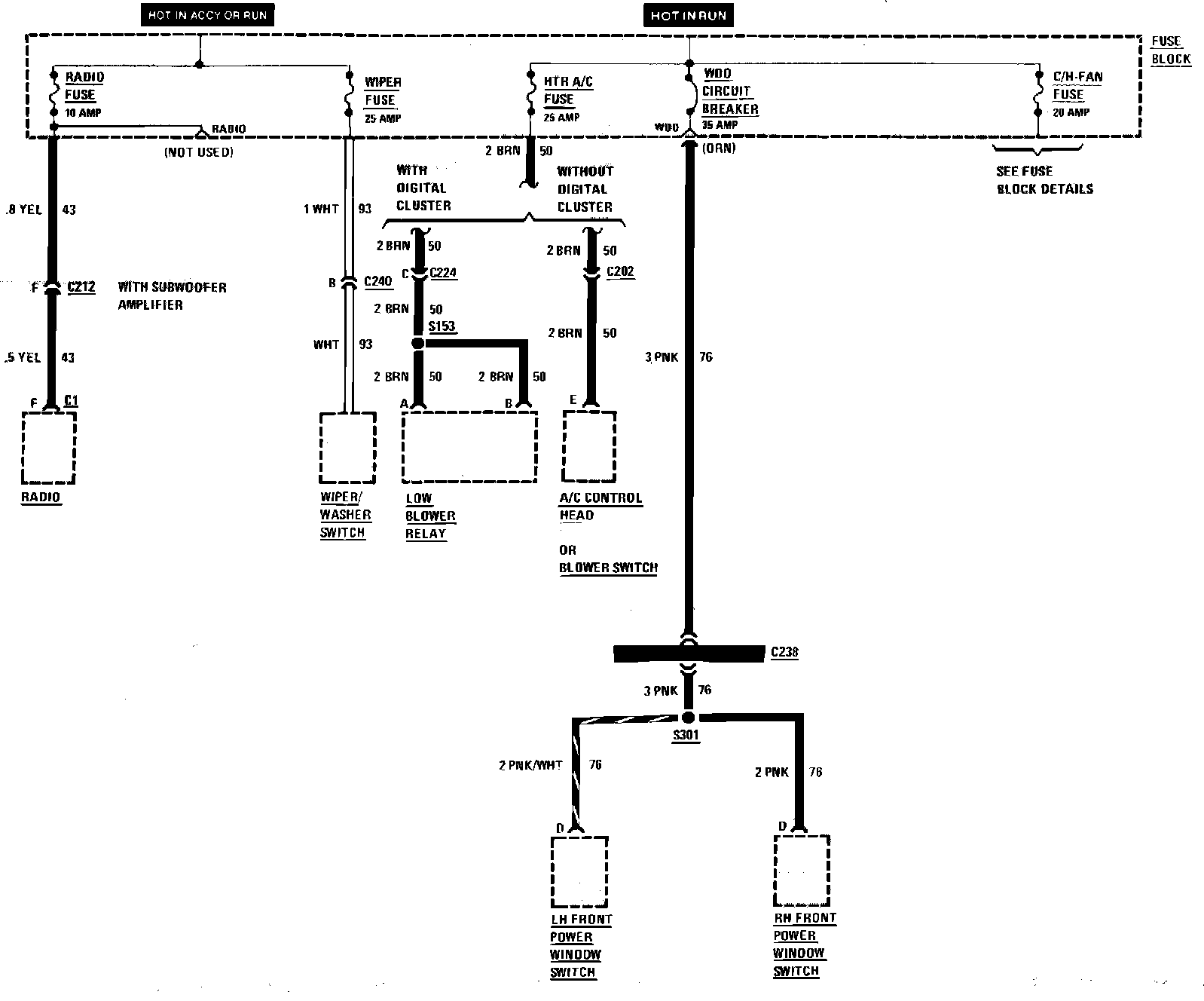

Fuse Block Details (WDO Circuit Breaker, HTR A/C Fuse, Radio & Wiper Fuse):
