Pontiac
>>
1988
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Maintenance
>>
Service Reminder Indicators
>>
Oil Level Warning Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

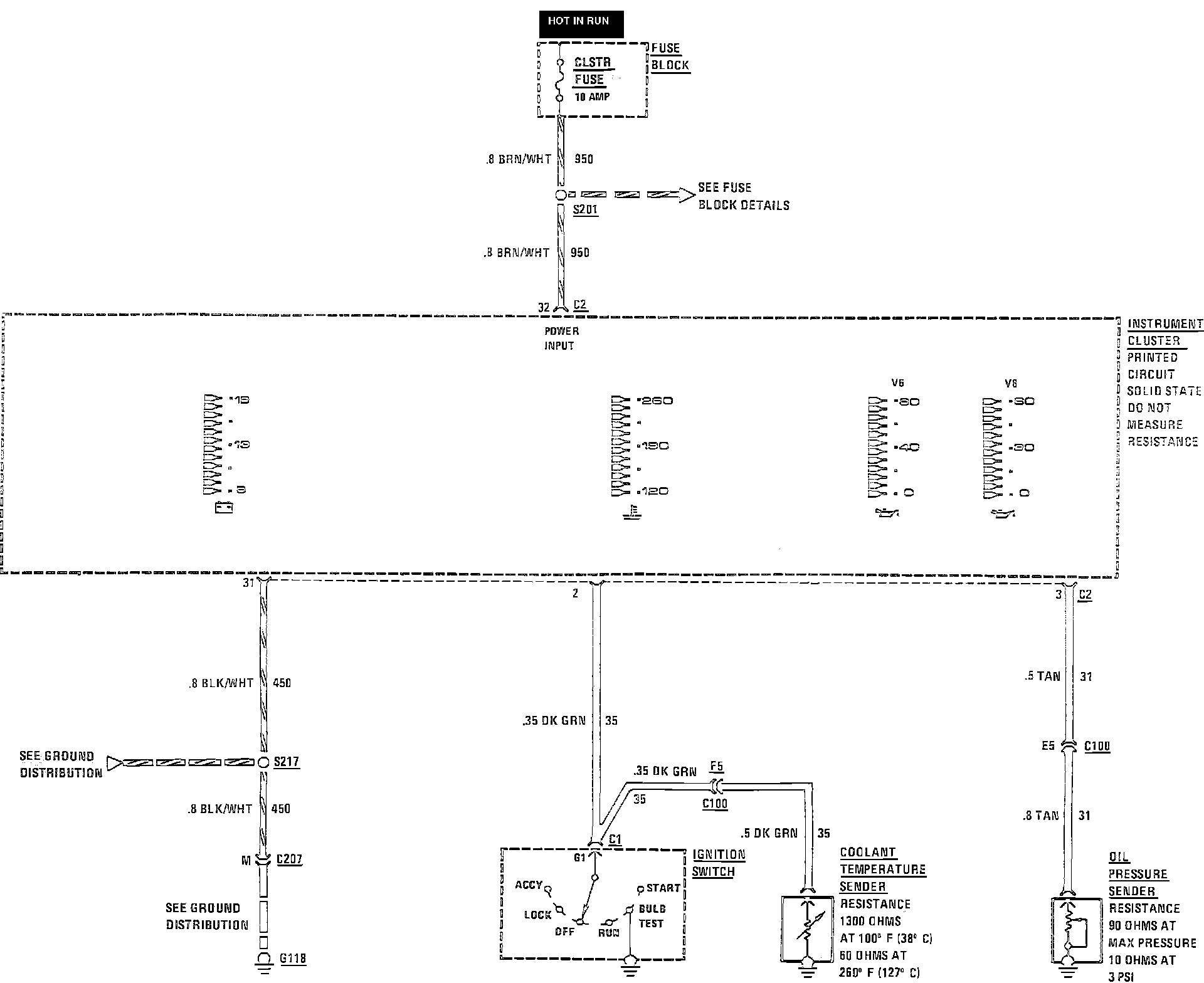

Digital Cluster, Gauges:
