Pontiac
>>
1988
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Map Light
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

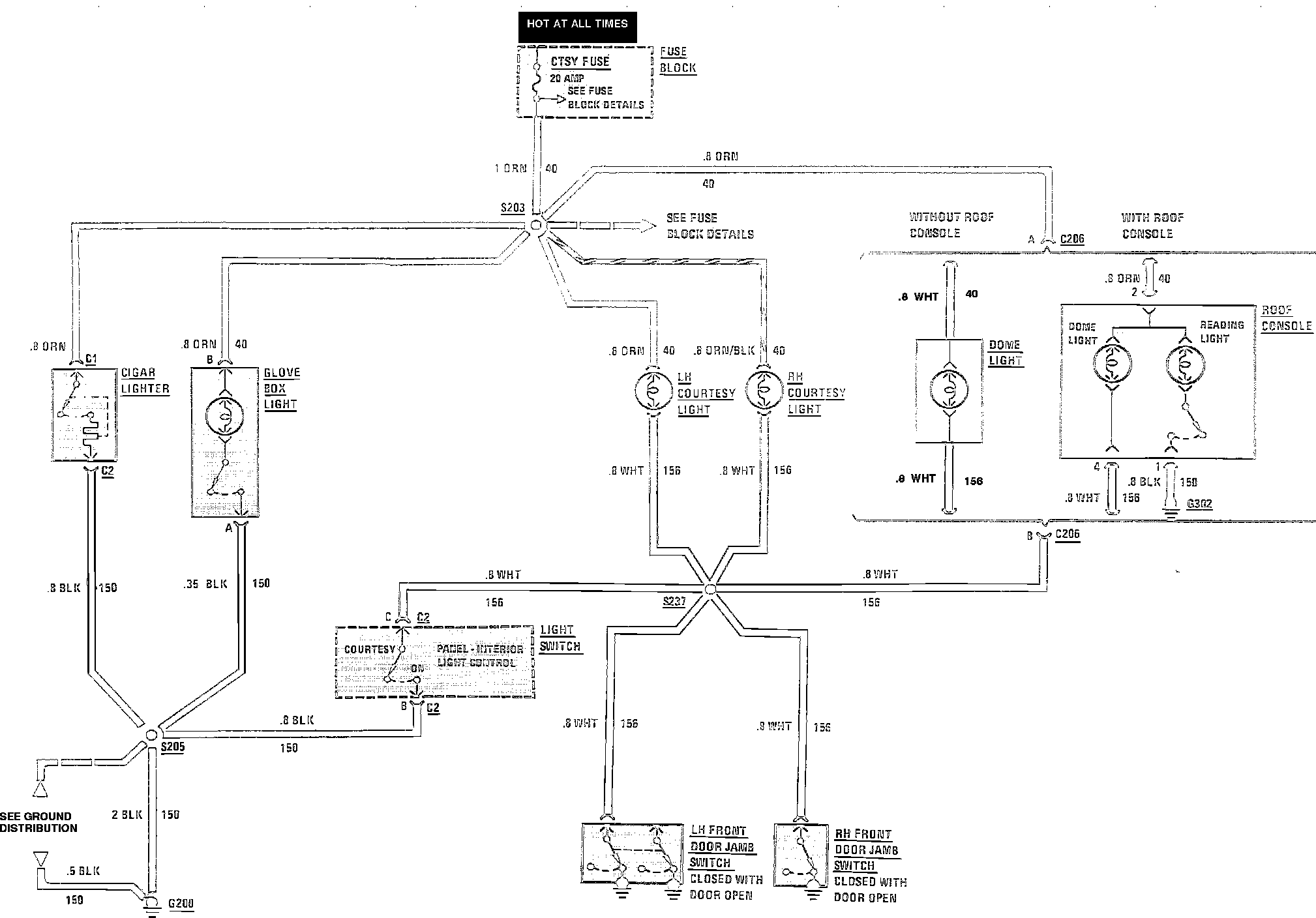

Cigar Lighter, Courtesy, Dome, Glove Compartment & Reading:
