Home >> Pontiac >> 1988 >> Firebird V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Without Remote Control >> With Subwoofer Amplifier >> Part 1 of 2

Part 1 of 2

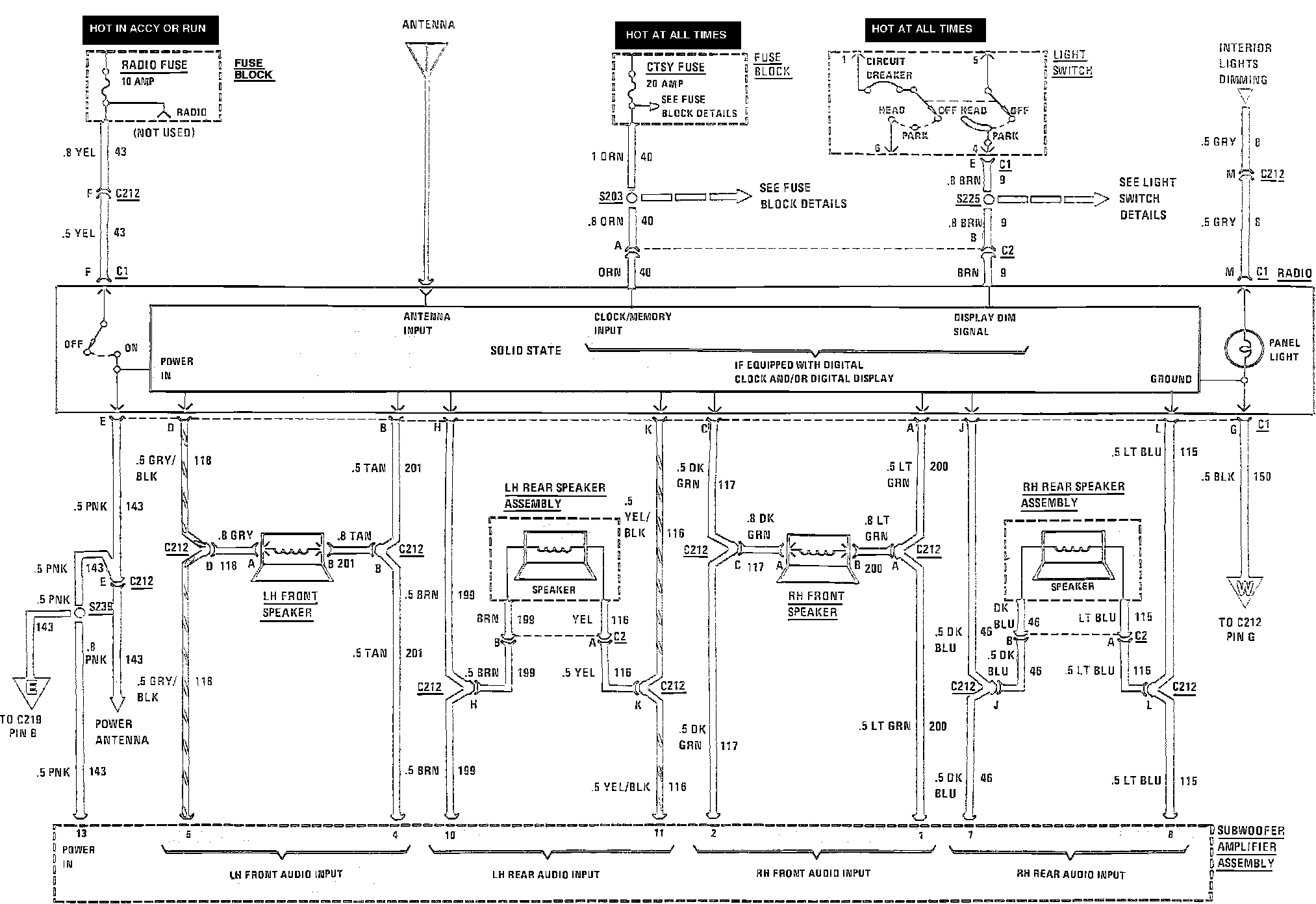

Less Remote Radio Control & W/Subwoorer Amplifier (Part 1 of 2):
