Pontiac
>>
1988
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Remote Control
>>
With Subwoofer Amplifier
>>
Part 2 of 2
Part 2 of 2

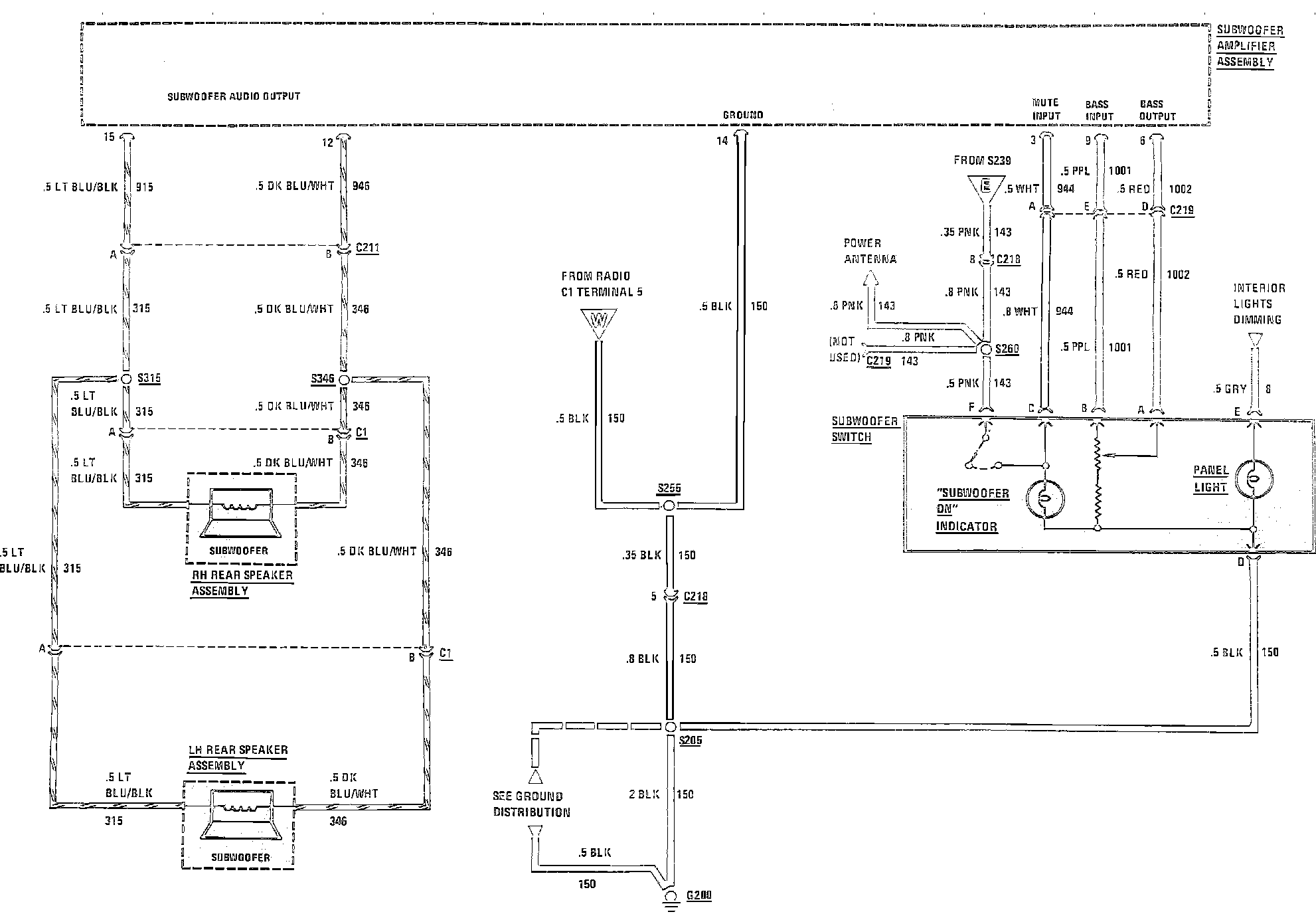

W/Remote Radio Control & Subwoofer Amplifier (Part 2 of 2):
