Pontiac
>>
1988
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Light Switch Details
>>
Less Digital Cluster
Less Digital Cluster

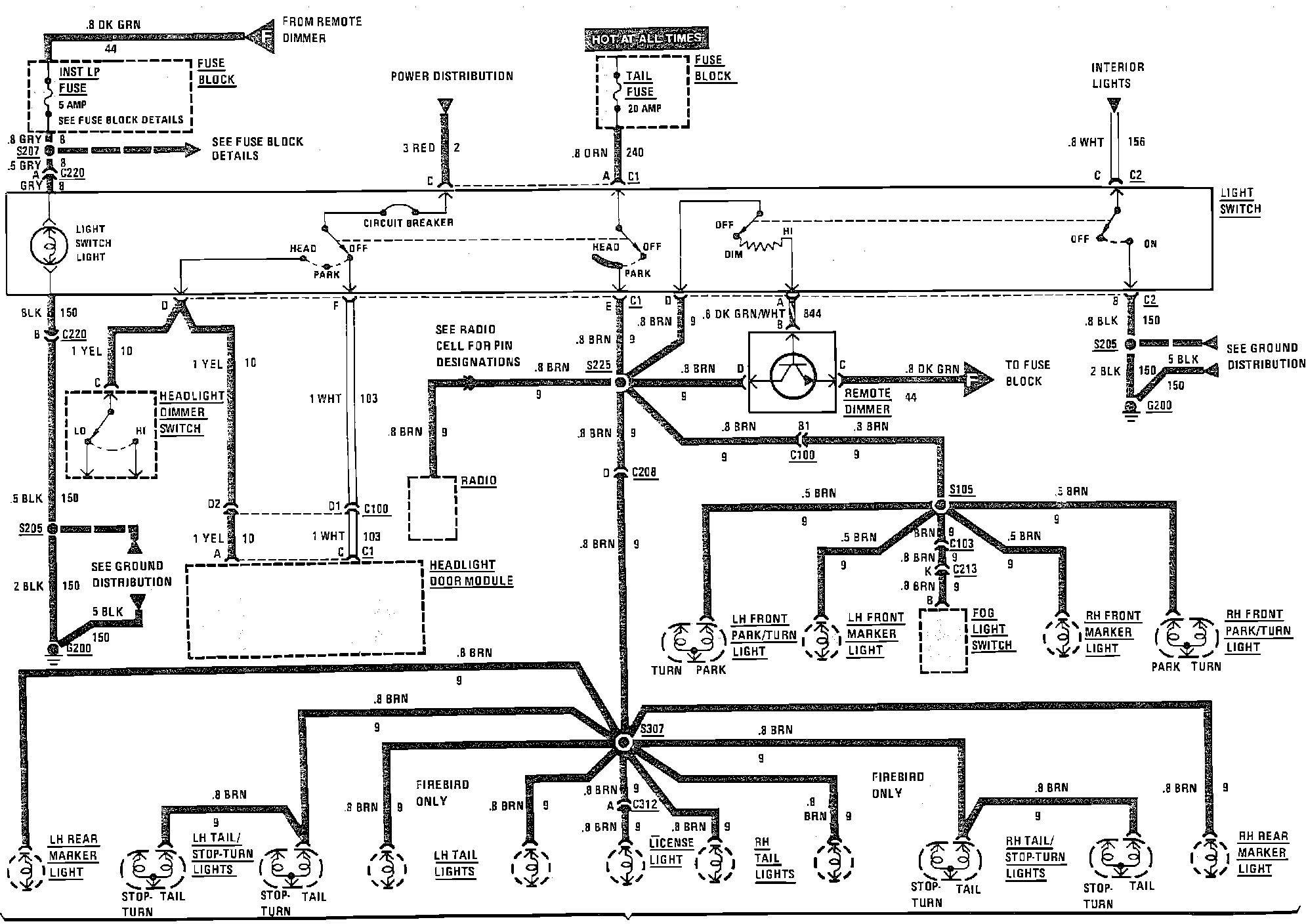

Light Switch Details (Less Digital Cluster):
